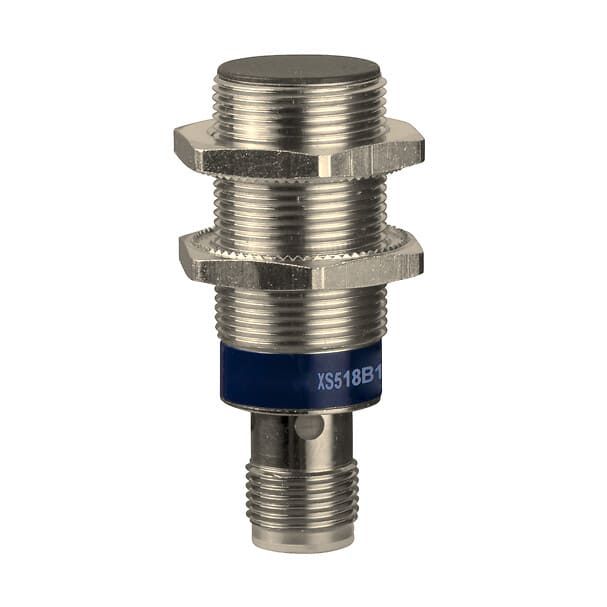

Telemecanique Inductive Proximity Sensors XS, Inductive Sensor XS5 M18, L64mm, Brass, Sn5mm, 12..48VDC, M12
Out of stock
SKU
XS518B1DAM12
Special Price EGP 663 Regular Price EGP 6,634
Quick Overview
Range: Telemecanique Inductive proximity sensors XS
Device application: Not applicable
Body type: fixed
Size: 64 mm
Specifications:
| Main | |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS5 |
| Device application | Not applicable |
| Sensor design | Cylindrical M18 |
| Size | 64 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Flush mountable |
| Material | Metal |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...48 V DC |
| Output circuit type | DC |
| Switching capacity in mA | 1.5...100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 (IEC 60529), IP69K (DIN 40050) |
| Complementary | |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M18 x 1 |
| Front material | PPS |
| Sensing range | > 4...8 mm |
| Differential travel | 1...15 % of Sr |
| Residual current | 0.5 mA (open state) |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 3000 Hz |
| Voltage drop | < 4 V (closed) |
| Delay first up | 10 ms |
| Delay response | 0.15 ms |
| Marking | CE |
| Delay recovery | 0.2 ms |
| Environment | |
| Product certifications | CSA, CCC, UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) (IEC 60068-2-6) |
| Shock resistance | 50 gn for 11 ms (IEC 60068-2-27) |
| Weight | 3.000000 |
|---|---|
| Brand | Telemecanique |
| Model | XS518B1DAM12 |
| IP Degree of Protection | IP67 |
