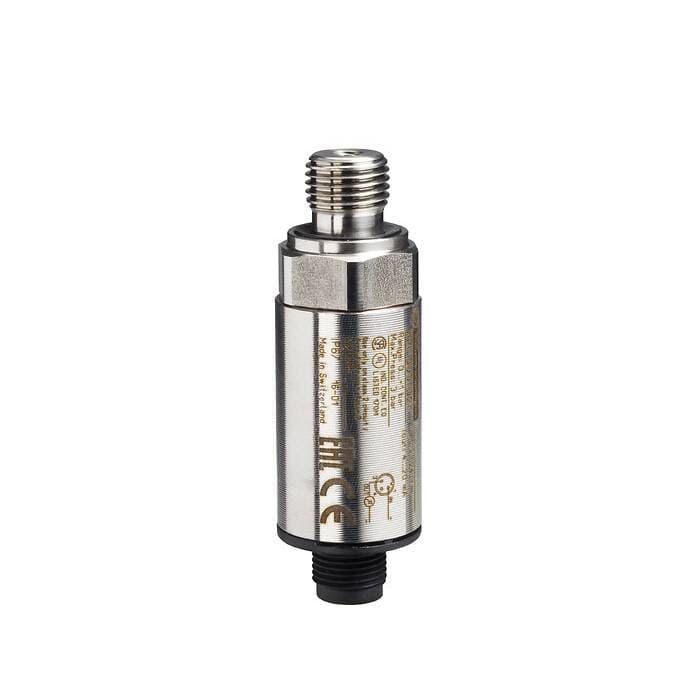

Telemecanique Electronic Pressure Sensors, Pressure Sensors XM, Sensor XMLG, 0...10 Bar, 1/4" NPT Male, 24 V, 4...20 mA
In stock
SKU
XMLG010D23
Special Price EGP 1,883 Regular Price EGP 18,832
Telemecanique Electronic Pressure Sensors, Pressure Sensors XM, Sensor XMLG, 0...10 Bar, 1/4" NPT Male, 24 V, 4...20 mA is available to buy in increments of 1
Quick Overview
Product or Component Type: Electronic Pressure Sensors
Pressure Sensor Type: Pressure Transmitter
Type of Output Signal: Analogue
Pressure Rating: 10 bar
You May Also Like:
Telemecanique Pressure transmitter 500mbar - 4..20mA - G1/4A male - FPM - M12Special Price EGP 956 Regular Price EGP 9,555
Telemecanique Pressure transmitter -1..5bar - 4..20mA - G1/4A male - FPM - M12Special Price EGP 956 Regular Price EGP 9,555
Telemecanique Pressure transmitter 2,5bar - 4..20mA - G1/4A male - FPM - M12Special Price EGP 956 Regular Price EGP 9,555
Telemecanique Pressure transmitter 6bar - 4..20mA - G1/4A male - FPM - M12Special Price EGP 956 Regular Price EGP 9,555
Specifications:
| Main | |
| Range of product | Telemecanique Pressure sensors XM |
| Product or component type | Electronic pressure sensors |
| Pressure sensor type | Pressure transmitter |
| Pressure sensor name | XMLG |
| Fluid connection type | 1/4" - 18 NPT (male) |
| Controlled fluid | Air (-15–125 °C), corrosive fluid (-15–125 °C), hydraulic oil (-15–125 °C), fresh water (0–125 °C) |
| Type of output signal | Analogue |
| Analogue output function | 4…20 mA, 2 wires |
| Electrical connection | 1 male connector M12, 3 pins |
| [Us] rated supply voltage | 12 V DC (limits: 8–33 V), 24 V DC (limits: 8–33 V) |
| Quantity per set | Set of 1 |
| Type of packing | Individual |
| Complementary | |
| Local display | Without |
| Electrical circuit type | Control circuit |
| Current consumption | 20 mA |
| Materials in contact with fluid | Ceramic, FPM (Viton), stainless steel AISI 303 |
| Operating position | Any position |
| Protection type | Load short-circuit, reverse polarity |
| Response time on output | < 2 ms |
| Drift of the sensitivity | ±0.015% of measuring range/°C |
| Drift of the zero point | ±0.015% of measuring range/°C |
| Measurement accuracy | ±0.3% of the measuring range |
| Repeat accuracy | ±0.1% of the measuring range |
| Environment | |
| Standards | CE, IEC 61326-2-3 |
| Product certifications | CSA C22.2 No 14, UL 508 |
| Protective treatment | TC |
| Vibration resistance | 20 gn (f = 9–2000 Hz) conforming to IEC 60028-2-6 |
| Shock resistance | 25 gn for 11 ms conforming to IEC 60068-2-27 |
| IP degree of protection | IP66, IP67 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4 |
| Weight | 0.095000 |
|---|---|
| Brand | Telemecanique |
| Model | XMLG010D23 |
| Range | Pressuresensor |
| Family | IDSEN |
