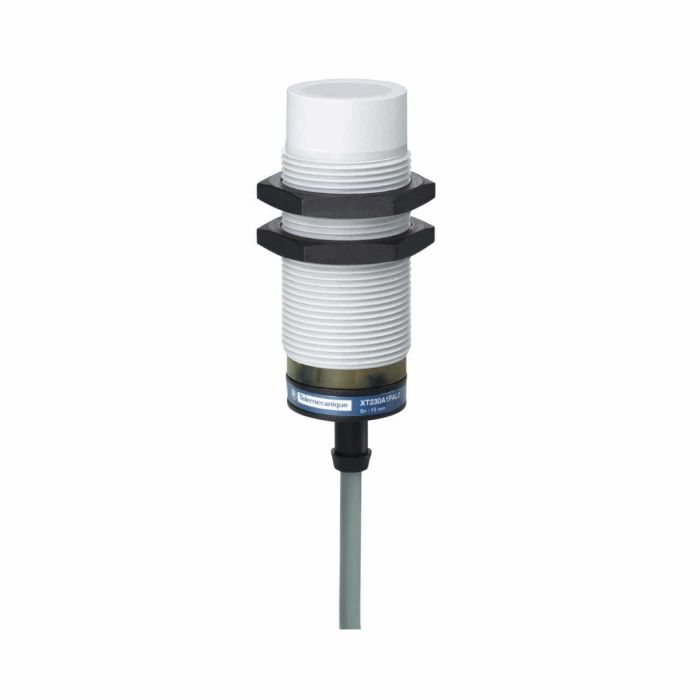

Telemecanique Capacitive Sensor, XT1 - cylindrical M30, plastic - Sn 15 mm, Cable 2 M
In stock
SKU
XT230A1NAL2
Special Price EGP 347 Regular Price EGP 3,469
Telemecanique Capacitive Sensor, XT1 - cylindrical M30, plastic - Sn 15 mm, Cable 2 M is available to buy in increments of 1
Quick Overview
Range: Telemecanique Capacitive proximity sensors XT
Sensor Type: Capacitive proximity sensor
Body Type: Fixed
Material: Plastic
The XT offer is a range of capacitive proximity sensors,dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. For example,metals,minerals,wood,plastic,glass,cardboard,fluids,etc. This product is a cylindrical,non flush mountable sensor,with a sensing distance of 15mm. it features a plastic case,diameter 30mm,threaded M30 x 1.5 and a 2m long pre-cabled connection. 3-wire,12V to 24V DC,with NO function and a NPN output. Output state indication by a yellow LED.
Specifications:
| Capacitive proximity sensor | Sensor type |
| Product specific application | Detection of insulated or conductive materials |
| Sensor name | XT2 |
| Sensor design | Cylindrical M30 |
| Size | 74.5 mm |
| Body type | Fixed |
| Detector flush mounting acceptance | Non flush mountable |
| Material | Plastic |
| Enclosure material | Plastic |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Delay response | 10 MILLISECOND |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
| ISO thread | M30 x 1.5 |
| Detection face | Frontal |
| Differential travel | < 1...20 % Sr |
| Repeat accuracy | < 5 % Sr |
| Wire insulation material | PVC |
| Status LED | Output state indication: 1 LED (yellow) |
| Residual current | 100 mA open state |
| Switching frequency | <= 150 Hz |
| Voltage drop | <2.5 V (closed) |
| Current consumption | < 15 mA |
| Delay first up | 100 MILLISECOND |
| Delay recovery | 10 MILLISECOND |
| Marking | CE |
| Setting-up | Sensitivity by potentiometer |
| Standards | IEC 60947-5-2 |
| Product certifications | cULus |
| Vibration resistance | 10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
| Weight | 3.000000 |
|---|---|
| Brand | Telemecanique |
| Model | XT230A1NAL2 |
| Range | Capacitive Sensors |
| Family | IDSEN |
