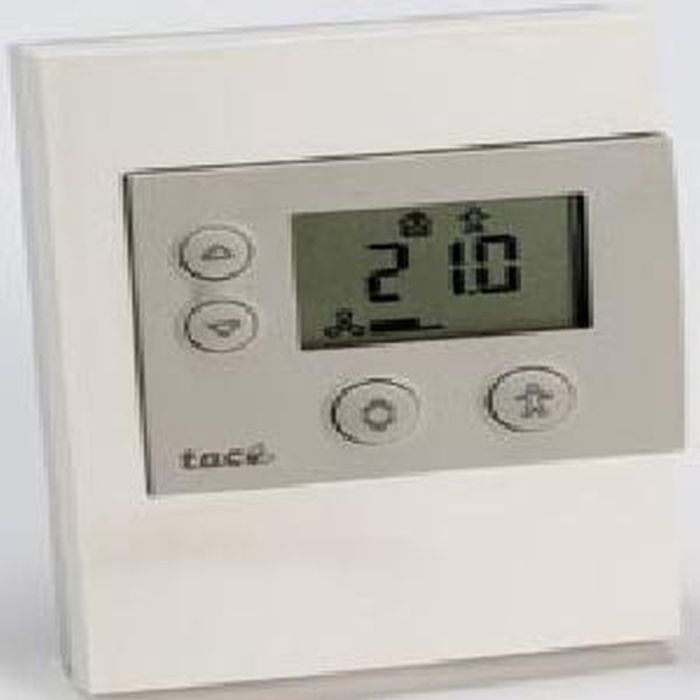

Schneider Electric STR Series Room Temperature Sensor, 10k Ohm T2, LCD, Fan Speed Control, Bypass

Main

Range of product

STR250

Product or component type

Sensor

type of measurement

Temperature

Device application

Room temperature

display size

44 x 24 mm

IP degree of protection

IP20/NEMA 1

Location

Living space

Mounting support

Wall

Depth

24 mm

Height

116 mm

Net weight

0.085 kg

Width

84 mm

ambient air temperature for storage

-20…80 °C

Standards

EN 50082-1

EN 50081-1

UL 916

UL 94 V0

Calibration certificate

Temperature: none

Ambient air temperature for operation

0…50 °C

Relative humidity

0…90 %

Complementary

Material

ABS + PC: enclosure

Input type

Temperature sensor 10000 Ohm

Number of cables

2 0.25 mm² <30 m shielded cable

Connections - terminals

Wire (AWG 24...AWG 18)

Control type

Decrease button

increase button

bypass button

select button

Display type

LCD

Measurement accuracy

+/- 0.6 °C

Environment

Product certifications

CE

UL

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1
