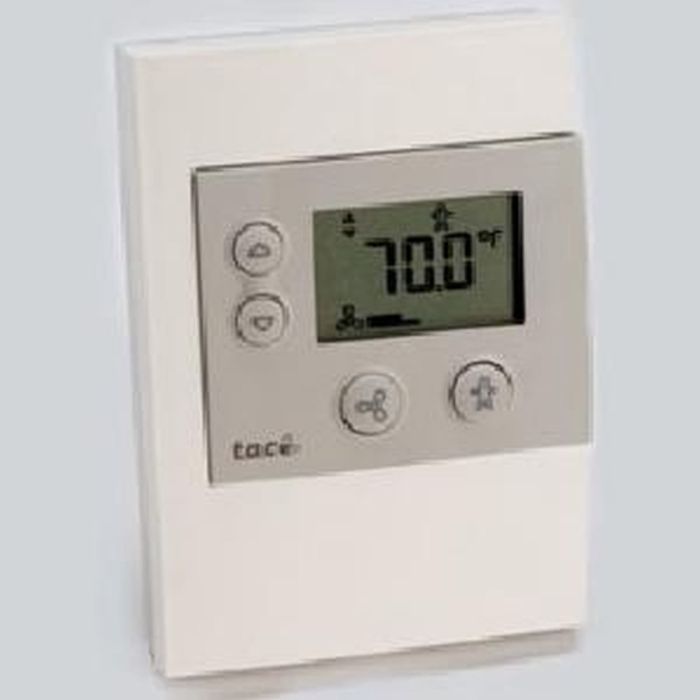

STR Room Temp Sensor: Transmitter, Functions: Temp sensor, LCD, Increase, Decrease, Bypass/On-Off , Select

Main

Range of product

STR350, 351

Product or component type

Sensor

type of measurement

Temperature

Device application

Room temperature

display size

44 x 24 mm

IP degree of protection

IP20/NEMA 1

Location

Living space

Mounting support

Wall

Depth

24 mm

Height

116 mm

Net weight

0.085 kg

Width

84 mm

ambient air temperature for storage

-20…80 °C

Standards

EN 50081-1

EN 61000-6-2

Calibration certificate

Temperature: none

Ambient air temperature for operation

0…50 °C

Relative humidity

0…90 %

Complementary

Material

ABS + PC: enclosure

Number of cables

2 0.25 mm² <30 m unshielded cable

Connections - terminals

Wire (AWG 24...AWG 18)

Control type

Setpoint offset

select button

decrease button

increase button

bypass button

Time constant

9 min

Display type

LCD

Measurement accuracy

5...45 °C +/- 0.6 °C

Environment

Temperature setting range

0.1 °C

Product certifications

CE

UL

Measurement range

0...35 °C
