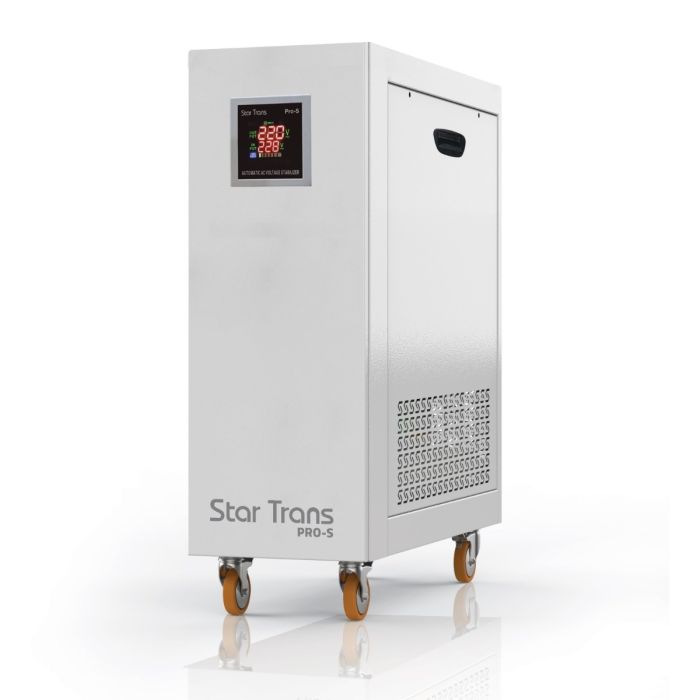

Star Trans 15kVA Single Phase Stabilizer Servo Pro-S Series
Range of product: Pro-S Series
Technology type: Servo motor
Rated power in VA: 15kVA
Output voltage: 220 V
Input voltage limits: 140-265 V
Rated input voltage: 230 Vac
Rated output voltage: 230 Vac
Output voltage tolerance (Accuracy): ±1-1.5%
Rated power: 1 - 30 KVA
Insulation class: H
Maximum ambient temperature: 50 °C
Efficiency: up to 98%
Degree of protection: IP23 Indoor
Frequency: 50/60 Hz
Advantages:
Compensation for mains voltage fluctuations
Assembly technology to lower heat losses
Bridging momentary voltage dips
May be switched between high control precision and elevated parasitic
Voltage attenuation
Display LCD screen - show parameter
Protection over/under voltage - overload - short circuit - over heat
Internal bypass - safe start
Suitable size
Easy installation
Applications:
Single phase stabilizer servo pro-s securing the supply voltage in the event of mains overvoltage, mains undervoltage, voltage dips and voltage surges and in the case of brief voltage interruptions.
Standards:
SINGLE PHASE STABILIZER SERVO PRO-S SERIES
IEC 61000 - 4 - 5 ; IEC 61000 - 4 - 2 ; IEC 62109 ; IEC 60529
IEC 61558 - 2 - 14 ; IEC 61558 - 1
Approvals:
CE, cTUVus
Energy Load Guide:
| Capacity | Group 1 | Group 2 | Group 3 |
| 1 kVA Stabilizer | 1 X Fridge up to 14 ft | Computer + Router | Blender + Cooker |
| 2 kVA Stabilizer | 1 X Fridge 16/18 ft | Computer + Router + Printer | Kettle + Blender + Cooker |
| 3 kVA Stabilizer | 1 X 14 ft Fridge + Deep Freezer | Full-Automatic Washing Machine | 1 X 14 ft Fridge + Computer + Printer + LED TV + Receiver |
| 5 kVA Stabilizer | Apartment with 14 ft Fridge + LED TV + Receiver + 10 LED Bulbs + Full-Automatic Washing Machine | 1 X 1.5 hp Air Conditioner + 15 LED Bulbs | |
| 10 kVA Stabilizer | Apartment with Fridge + Deep Freezer + LED TV + Receiver + 25 LED Bulbs + Water Heater + Computer + Printer + 1 X 1.5 HP Air Conditioner + other Devices | ||
| 15 kVA Stabilizer | Apartment with Fridge + Deep Freezer + LED TV + Receiver + 25 LED Bulbs + Water Heater + Computer + Printer + 2 X 1.5 HP Air Conditioner + other Devices (Vaccum Cleaner, Washing Machine) | ||
| 20 kVA Stabilizer | Apartment with Fridge + Deep Freezer + LED TV + Receiver + 25 LED Bulbs + Water Heater + Computer + Printer + 3 X 1.5 HP Air Conditioner + other Devices | ||
| Weight | 20.000000 |
|---|---|
| Brand | Star Trans |
| Model | 15kVA |
| Color | White |
| Rated Power in VA | 15kVA |
| Technology | Servo Motor |
| Input Voltage | 140-265 V |
| Output Voltage | 220 V |
