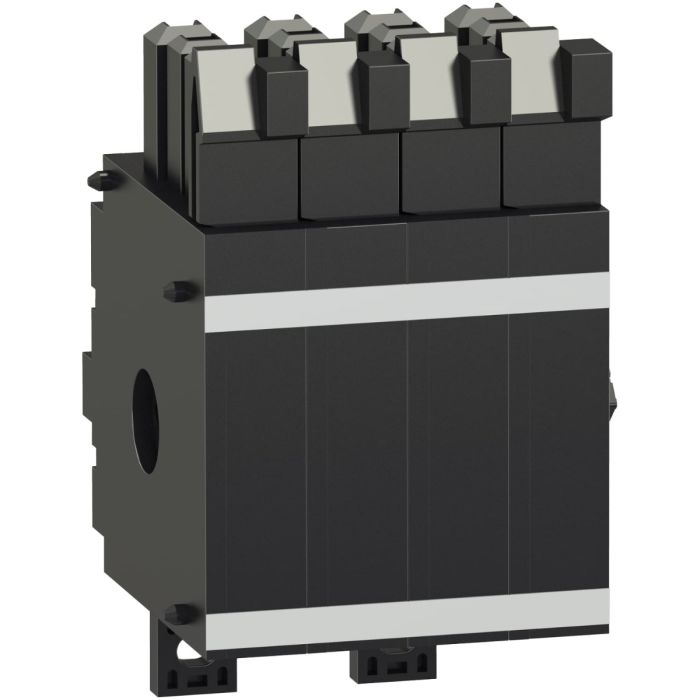

Standard Auxiliary Contact for Drawout MasterPact NW08 to NW63, Additional Block, 4 Contacts

In stock
SKU
48468
Special Price EGP 11,497 Regular Price EGP 17,419
2299.4 Reward Points will be used to purchase this product
Standard Auxiliary Contact for Drawout MasterPact NW08 to NW63, Additional Block, 4 Contacts is available to buy in increments of 1
Quick Overview

Product or component type: Auxiliary contact
Range compatibility: Masterpact (MasterPact NW)
Mounting mode: Drawout

The Standard Auxiliary Contact for Drawout MasterPact NW08 to NW63 offers additional contact blocks to enhance the functionality of your electrical systems. This product includes four contacts, providing control and feedback for your MasterPact circuit breakers.



Key Features:

Enhanced Control: The standard auxiliary contact adds control functionality to your MasterPact circuit breakers.

Four Contacts: This product includes a block of four contacts, allowing for more options and configurations.

Compatibility: Designed for use with Drawout MasterPact circuit breakers ranging from NW08 to NW63.



Technical Specifications:

Type: Auxiliary Contact

Contacts: 4

Compatibility: Drawout MasterPact NW08 to NW63



The Standard Auxiliary Contact for Drawout MasterPact NW08 to NW63 - Additional Block (4 Contacts) is a valuable addition to your electrical systems. It provides enhanced control and feedback, ensuring the efficient operation of your circuit breakers.



Specifications

Main


Product or component typeAuxiliary contact
device short name4 OF
Range compatibilityMasterpact MasterPact NW
Signal contacts composition4 NO/NC
Complementary
auxiliary contacts typeStandard
 Low level
Mounting modeDrawout
Breaking capacity (A)AC-12: 10 A at 240/380 V AC 50/60 Hz conforming to EN/IEC 60947-2
 AC-12: 10 A at 480 V AC 50/60 Hz conforming to EN/IEC 60947-2
 AC-12: 6 A at 690 V AC 50/60 Hz conforming to EN/IEC 60947-2
 DC-12: 10 A at 24/48 V DC conforming to EN/IEC 60947-2
 DC-12: 10 A at 125 V DC conforming to EN/IEC 60947-2
 DC-12: 3 A at 250 V DC conforming to EN/IEC 60947-2
 8 A at 480 V AC 50/60 Hz conforming to UL 489
 6 A at 600 V AC 50/60 Hz conforming to UL 489
 6 A at 250 V DC conforming to UL 489
Minimum load100 mA at 24 V
 2 mA at 15 V
More Information
Weight0.187000
BrandSchneider Electric
Model48468
RangePROXAccessories
FamilyPPACB
