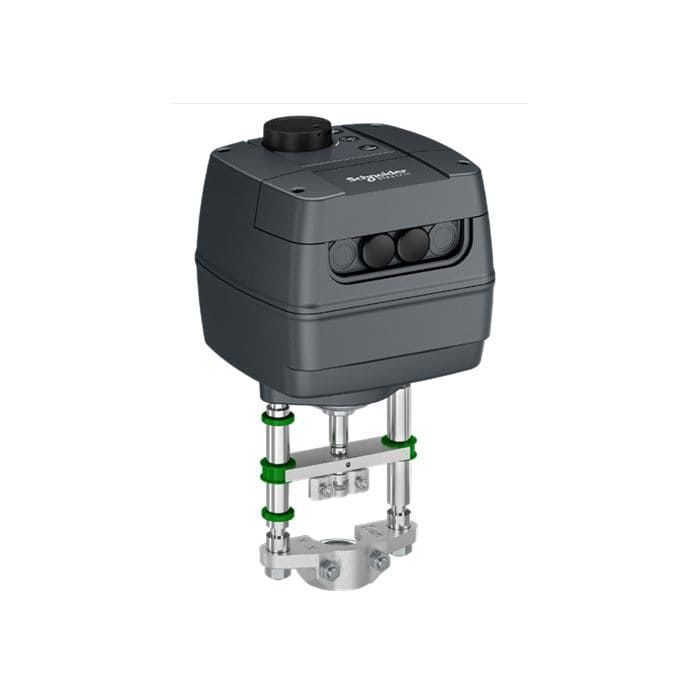

Schneider Electric SpaceLogic MP2000-SR PIBCV Actuator, Multi-Signal Control, Spring Return (Normally Closed), 24Vac/dc, 2000N
Out of stock
SKU
MP2000-SRD
Special Price EGP 86,259 Regular Price EGP 156,835
Quick Overview
Range: SmartX Actuator
Product Type: Actuator
Actuator Type: Electric
Control Type: Automatic reset
The MP2000 spring return safety function is fine regualtion of large control valves under the demand of the HVAC controller. The actuator can be controlled by either a modulating or 3 point control signal and is used specially with the VP221x SmartX PIBCV valves. With automatic stroke calibration function, and anti-oscillation function. Nominal voltage: 230 Vac/Vdc. Force : 2000 N. Grade of enclosure IP54, NEMA Type 2. Stroke 5 mm.
Main | |
| Actuator product range | SmartX Actuator |
| Product or component type | Actuator |
| Actuator type | Electric |
| Actuator product series | MP2000-SR |
| Product destination | pressure independent control valves |
| Power loss return | Spring return |
| Control signal | Floating |
| Proportional/modulating | |
| Conduit connection | Conduit connector holes |
| targeted region | Europe |
| Asia Pacific. | |
| Australia. | |
| Complementary | |
| Actuator | Linear |
| Control type | Automatic reset |
| Switch function | 2 SPDT |
| rated supply voltage | 220 V AC |
| Analogue input range | 0...10 V DC |
| Feedback signal | 2...10 V DC |
| 4...20 mA DC | |
| Stroke length | 50 mm |
| Stroke auto calibration | TRUE |
| Electrical insulation class | Class II |
| Force N | 2000 N |
| Force lbf | 450 lbf |
| Position indicator | Stroke indicator on bracket |
| Additional features | LED status indicator |
| Leads and connections | Terminal block |
| Stroke running time | 6 s |
| Environment | |
| IP degree of protection | IP54 |
| Ambient air temperature for operation | 0…55 °C |
| Relative humidity | 5…95 % non-condensing |
| Ambient air temperature for storage | -40…70 °C |
| Weight | 9.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | MP2000-SRD |
| Color | Black |
| IP Degree of Protection | IP54 |
