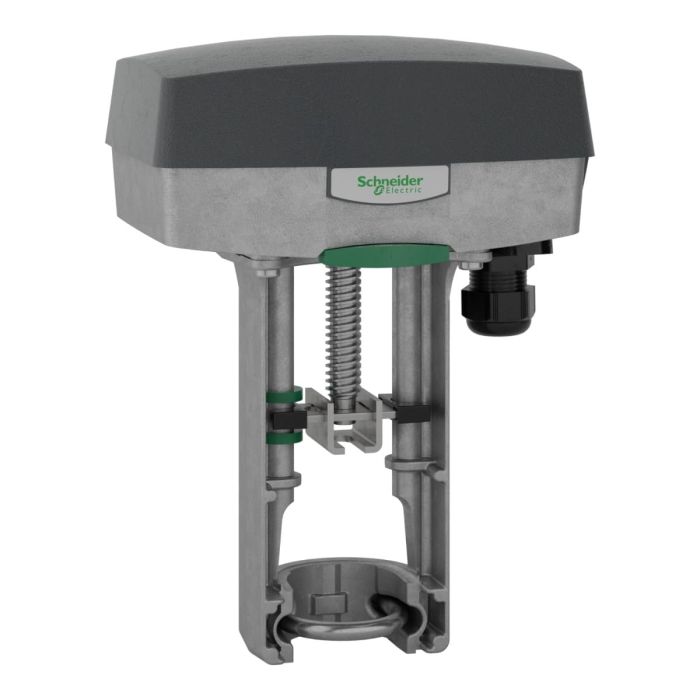

SpaceLogic M800-S2 Actuator, Non-Spring Return, 24Vac/dc, 800N, 2 SPDT Aux Relay, IP54
The SpaceLogic is a family actuators for the control of 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25% / -35%. Analog Control Input selectable Voltages: …1 V, 2…1 v, …5 V, 5…1 V, 2…6 V, 6…1 V. Force: 800 N, IP 54 Protection class. S2 Output - Auxiliary end point switch (optional): 2 x SPDT. EMC 214/3/EU, LVD 214/35/EU. Conduit connection 3 x M2 screwed.
Specifications:
Main | |
Actuator product range | SpaceLogic |
Product or component type | Actuator |
Actuator type | Electric |
Actuator product series | M800 |
Product destination | globe valve |
Actuator | Linear |
Motor type | Brushless DC motor |
Control type | Automatic reset |
Switch function | 2 SPDT |
rated supply voltage | 24 V AC/DC |
Analogue input range | 0...10 V DC |
Feedback signal | 2...10 V DC |
Transformer rated power in VA | 50 VA |
Power consumption in VA | 10 VA AC |
Power loss return | Non-spring return |
Control signal | Floating |
Proportional/modulating | |
Stroke length | 9…52 mm |
Stroke auto calibration | TRUE |
Electrical insulation class | Class II |
Force N | 800 N |
Force lbf | 180 lbf |
Position indicator | Stroke indicator on bracket |
Conduit connection | 3 x M20 |
Gland for 6-9 mm O/D cable | |
Leads and connections | Terminal block |
Stroke running time | 15 s |
IP degree of protection | IP43 |
Duty cycle | 20% |
Ambient air temperature for operation | -10…50 °C |
Relative humidity | 0…90 % |
Ambient air temperature for storage | -10…50 °C |
| Weight | 2.200000 |
|---|---|
| Brand | Schneider Electric |
| Model | 8800311030 |
