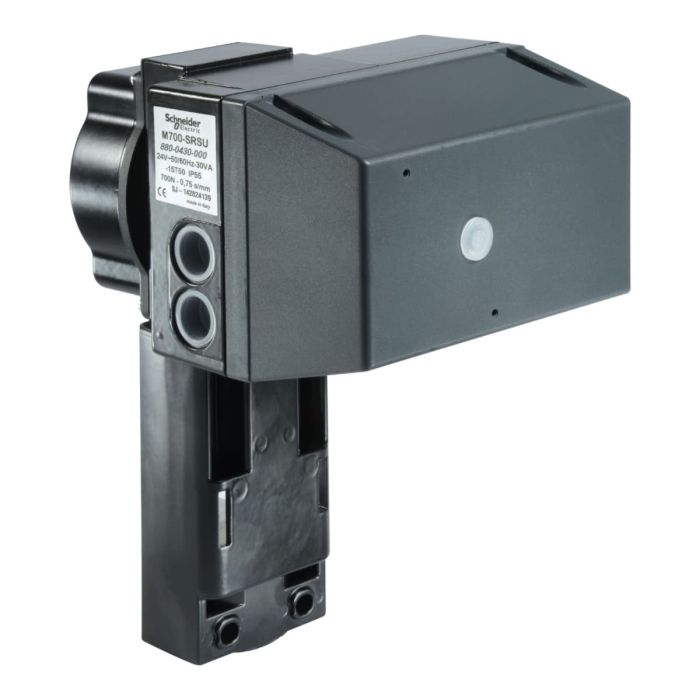

SpaceLogic M700-SRSU Actuator, Spring Return Stem Up, 24Vac/dc, 700N, IP54
Field selectable configuration
2-10V position feedback as standard
Aux end switch relays (2 x SPDT) available as an optional accessory
Spring Return Stem Up Function
Zero point check upon power interruption
The SpaceLogic M700 is a spring return electro-mechanical actuator for the control of two-way and three-way globe valves. The electronic circuitry of the actuator ensures that the running time is the same, regardless of the stroke of the valve in question. The actuators is easy to mount and connect. Modulating control signal or increase/decrease signal, Stem Up spring action (the stem is pulled up when power off). Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 v, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 700 N, IP 54 Protection class. Stroke: 9-52 mm. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal.
Specifications:
Main | |
Actuator product range | SpaceLogic |
Product or component type | Actuator |
Actuator type | Electric |
Actuator product series | M700 |
Actuator model | M700 |
Product destination | globe valve |
Actuator | Linear |
Motor type | Brushless DC motor |
Control type | Automatic reset |
Switch function | 2 SPDT (optional) |
rated supply voltage | 24 V AC/DC |
Analogue input range | 0...10 V DC |
Feedback signal | 2...10 V DC |
Transformer rated power in VA | 50 VA |
Power consumption in VA | 30 VA AC |
Hold-in power consumption in VA | 30 VA AC |
Power loss return | Spring return |
Control signal | Floating |
Proportional/modulating | |
Stroke length | 9…52 mm |
Stroke auto calibration | TRUE |
Electrical insulation class | Class II |
Force N | 700 N |
Force lbf | 157 lbf |
Position indicator | Stroke indicator on yoke |
Conduit connection | 2 x 20 mm conduit hole |
Leads and connections | Terminal block |
Stroke running time | 15 s |
Stroke running time noload retract | 95 s |
IP degree of protection | IP54 |
Duty cycle | 20% |
Ambient air temperature for operation | -10…50 °C |
Relative humidity | 0…90 % |
Ambient air temperature for storage | -10…50 °C |
| Weight | 5.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | 8800430000 |
