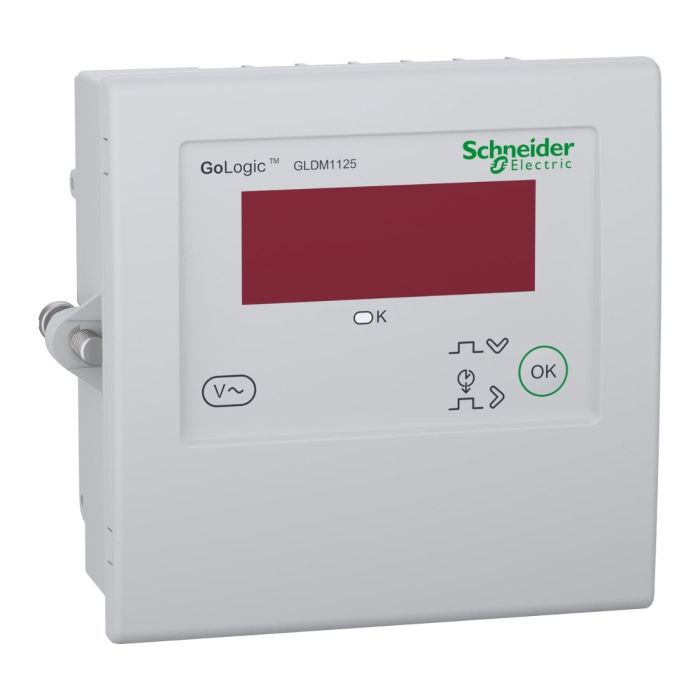

Schneider Electric Voltmeter, GoLogic Panel Meter, DM1125, Single Phase
In stock
SKU
METSEGLDM1125
Special Price EGP 910 Regular Price EGP 1,240
Schneider Electric Voltmeter, GoLogic Panel Meter, DM1125, Single Phase is available to buy in increments of 1
Quick Overview
Range: Go Series
Product type: Voltmeter
Display type: LED
Poles description: 1P + N
This digital panel meter is part of the GoLogic Panel Meter Series.
Specifications:
| Main | |
| Range | Go Series |
| product name | GoLogic DM1000 |
| Device short name | DM1125 |
| Product or component type | Voltmeter |
| Device application | Control |
| Motor control | |
| Power distribution | |
| Panel installation | |
| Complementary | |
| Poles description | 1P + N |
| Type of measurement | Voltage |
| [Us] rated supply voltage | 48...250 V AC +/- 10 % |
| 48...250 V DC +/- 10 % | |
| Supply frequency | 50/60 Hz +/- 5 Hz |
| Network frequency | 60 Hz |
| 50 Hz | |
| Maximum power consumption in VA | 3 VA at 240 V AC |
| Display type | LED |
| Display digits | 4 |
| Full scale display | 999.9 |
| Control type | Key built-in |
| Analogue input type | Voltagesingle phase |
| Measurement voltage | 48…250 V AC phase to neutral, 50/60 Hz +/- 10 % |
| 80…480 V AC phase to phase, 50/60 Hz +/- 10 % | |
| Accuracy | Voltage +/- 0.5 % of full scale for class 0.5 |
| Device mounting | Flush |
| Mounting support | Panel |
| Type of installation | Indoor |
| Measurement category | Category III |
| Standards | IEC 61326-1 |
| Product certifications | CE conforming to IEC 61010-1 |
| Environment | |
| Electromagnetic compatibility | Conducted and radiated emissions class A conforming to CISPR 11 |
| Electrostatic discharge conforming to IEC 61000-4-2 | |
| Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 | |
| Surge immunity test conforming to IEC 61000-4-5 | |
| Conducted RF disturbances conforming to IEC 61000-4-6 | |
| Magnetic field at power frequency conforming to IEC 61000-4-8 | |
| Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 | |
| Harmonics conforming to IEC 61000-3-2 | |
| Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 | |
| Immunity to radiated fields conforming to IEC 61000-4-3 | |
| IP degree of protection | Front panel: IP51 conforming to IEC 60529 |
| Body: IP30 conforming to IEC 60529 | |
| Relative humidity | 5…95 % |
| pollution degree | 2 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Colour | Grey |
| Width | 96 mm |
| Height | 96 mm |
| Depth | 43.5 mm |
| Cut-out dimensions | 92 x 92 mm |
| Product weight | 160 g |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | METSEGLDM1125 |
| Color | Gray |
| Depth [cm] | 4.35 |
| Width [cm] | 9.6 |
| Height [cm] | 9.6 |
| Range | MET Easy&Basic |
| Family | DPLVP |
| Voltage ~ Frequency | 50-60 Hz |
| Display | 4 LED |
