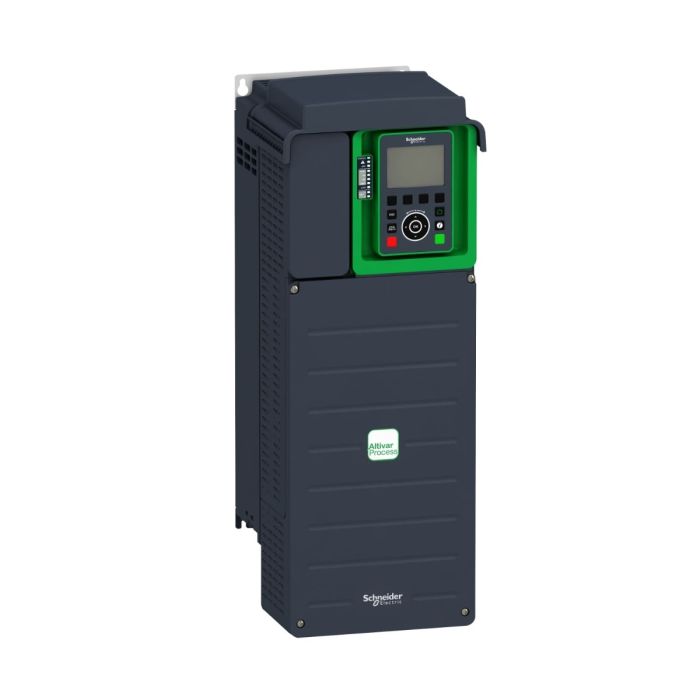

Schneider Electric Variable Speed Drive ATV930, 15 kW, 400-480V, with Braking Unit, IP21

The ATV930D15N4 Variable Speed Drive ATV930 is a high-performance drive designed to control the speed of motors in various industrial applications. With a power rating of 15 kW and compatibility with 400-480V power systems, this drive is ideal for applications requiring precise control and braking capabilities. The integrated braking unit enhances the drive's ability to decelerate motors rapidly and safely. The IP21 protection rating ensures durability and reliability even in challenging environments.

Key Features:

High Performance: This drive is designed for high-performance motor speed control.

Integrated Braking Unit: The integrated braking unit enables rapid and safe motor deceleration.

Compatibility: Suitable for use with 400-480V power systems.

Durable Design: The IP21 protection rating ensures durability in various industrial environments.

Technical Specifications:

Product Type: Variable Speed Drive

Power Rating: 15 kW

Voltage Rating: 400-480V

Braking Unit: Integrated

Protection Rating: IP21

Specifications
Main
Range of product	Altivar Process ATV900
Device application	Industrial application
Product or component type	Variable speed drive
Product destination	Asynchronous motors
	Synchronous motors
Product specific application	Process for industrial
Variant	With braking chopper
	Standard version
Network number of phases	3 phases
Mounting mode	Wall mount
Communication port protocol	Modbus serial
	Modbus TCP
	EtherNet/IP
[Us] rated supply voltage	380...480 V - 15...10 %
Motor power kW	15.0 kW for normal duty
	11.0 kW for heavy duty
Continuous output current	31.7 A at 4 kHz for normal duty
	23.5 A at 4 kHz for heavy duty
EMC filter	Integrated
	With EMC plate option
IP degree of protection	IP21
Degree of protection	UL type 1
option module	Slot A: communication module for Profibus DP V1
	Slot A: communication module for PROFINET
	Slot A: communication module for DeviceNet
	Slot A: communication module for EtherCAT
	Slot A: communication module for CANopen daisy chain RJ45
	Slot A: communication module for CANopen SUB-D 9
	Slot A: communication module for CANopen screw terminals
	Slot A/slot B/slot C: digital and analog I/O extension module
	Slot A/slot B/slot C: output relay extension module
	Slot B: 5/12 V digital encoder interface module
	Slot B: analog encoder interface module
	Slot B: resolver encoder interface module
	communication module for Ethernet Powerlink
Discrete input logic	16 preset speeds
Asynchronous motor control profile	Variable torque standard
	Optimized torque mode
	Constant torque standard
Synchronous motor control profile	Permanent magnet motor
	Synchronous reluctance motor
Maximum output frequency	599 Hz
Switching frequency	2...16 kHz adjustable
	4...16 kHz with derating factor
Nominal switching frequency	4 kHz
Line current	27.0 A at 380 V (normal duty)
	20.6 A at 380 V (heavy duty)
	23.3 A at 480 V (normal duty)
	18.1 A at 480 V (heavy duty)
Apparent power	19.4 kVA at 480 V (normal duty)
	15 kVA at 480 V (heavy duty)
Maximum transient current	38 A during 60 s (normal duty)
	35.3 A during 60 s (heavy duty)
Network frequency	50...60 Hz
Prospective line Isc	50 kA
Complementary
Discrete input number	١٠
Discrete input type	DI1...DI8 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm
	DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
	STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm
Discrete output number	٢
Discrete output type	Logic output DQ+ 0…1 kHz <= 30 V DC 100 mA
	Programmable as pulse output DQ+ 0…30 kHz <= 30 V DC 20 mA
	Logic output DQ- 0…1 kHz <= 30 V DC 100 mA
analogue input number	٣
Analogue input type	AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits
	AI1, AI2, AI3 software-configurable current: 0...20 mA/4...20 mA, impedance: 250 Ohm, resolution 12 bits
analogue output number	٢
Analogue output type	Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
	Software-configurable current AQ1, AQ2: 0...20 mA impedance 500 Ohm, resolution 10 bits
Relay output number	٣
Relay output type	Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
	Configurable relay logic R2: sequence relay NO electrical durability 1000000 cycles
	Configurable relay logic R3: sequence relay NO electrical durability 1000000 cycles
Maximum switching current	Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC
	Relay output R1 on resistive load, cos phi = 1: 3 A at 30 V DC
	Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
	Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
	Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 250 V AC
	Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 30 V DC
	Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
	Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Minimum switching current	Relay output R1, R2, R3: 5 mA at 24 V DC
Physical interface	Ethernet
	2-wire RS 485
Connector type	2 RJ45
	1 RJ45
Method of access	Slave Modbus TCP
Transmission rate	10, 100 Mbits
	4.8 kbps
	9600 bit/s
	19200 bit/s
Transmission frame	RTU
Number of addresses	1…247
Data format	8 bits, configurable odd, even or no parity
Type of polarization	No impedance
4 quadrant operation possible	TRUE
Acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s
Motor slip compensation	Adjustable
	Not available in permanent magnet motor law
	Automatic whatever the load
	Can be suppressed
Braking to standstill	By DC injection
Brake chopper integrated	TRUE
Maximum input current	27.0 A
Maximum output voltage	480.0 V
Relative symmetric network frequency tolerance	5%
Base load current at high overload	23.5 A
Base load current at low overload	31.7 A
Power dissipation in W	Natural convection: 59 W at 380 V, switching frequency 4 kHz
	Forced convection: 366 W at 380 V, switching frequency 4 kHz
With safety function Safely Limited Speed (SLS)	TRUE
With safety function Safe brake management (SBC/SBT)	TRUE
With safety function Safe Operating Stop (SOS)	FALSE
With safety function Safe Position (SP)	FALSE
With safety function Safe programmable logic	FALSE
With safety function Safe Speed Monitor (SSM)	FALSE
With safety function Safe Stop 1 (SS1)	TRUE
With sft fct Safe Stop 2 (SS2)	FALSE
With safety function Safe torque off (STO)	TRUE
With safety function Safely Limited Position (SLP)	FALSE
With safety function Safe Direction (SDI)	FALSE
Protection type	Thermal protection: motor
	Safe torque off: motor
	Motor phase break: motor
	Thermal protection: drive
	Safe torque off: drive
	Overheating: drive
	Overcurrent between output phases and earth: drive
	Overload of output voltage: drive
	Short-circuit protection: drive
	Motor phase break: drive
	Overvoltages on the DC bus: drive
	Line supply overvoltage: drive
	Line supply undervoltage: drive
	Line supply phase loss: drive
	Overspeed: drive
	Break on the control circuit: drive
Quantity per set	1
Width	211 mm
height	545.9 mm
Depth	235 mm
Net weight	13.6 kg
Electrical connection	Control: screw terminal 0.5...1.5 mm²/AWG 20...AWG 16
	Line side: screw terminal 10...16 mm²/AWG 8...AWG 6
	Motor: screw terminal 10...16 mm²/AWG 8...AWG 6
	DC bus: screw terminal 10...16 mm²/AWG 8...AWG 6
Transmission rate	10/100 Mbit/s for Ethernet IP/Modbus TCP
	4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
Exchange mode	Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Data format	8 bits, configurable odd, even or no parity for Modbus serial
Type of polarization	No impedance for Modbus serial
Number of addresses	1…247 for Modbus serial
Supply	External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
	Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
	Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Local signalling	Local diagnostic: 3 LED (mono/dual colour)
	Embedded communication status: 5 LED (dual colour)
	Communication module status: 2 LED (dual colour)
	Presence of voltage: 1 LED (red)
Input compatibility	DI1...DI8: discrete input level 1 PLC conforming to EN/IEC 61131-2
	DI7, DI8: pulse input level 1 PLC conforming to IEC 65A-68
	STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2
Discrete input logic	Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1)
	Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1)
	Positive logic (source) (DI7, DI8), < 0.6 V (state 0), > 2.5 V (state 1)
	Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1)
Sampling duration	2 ms +/- 0.5 ms (DI1...DI8) - discrete input
	5 ms +/- 1 ms (DI7, DI8) - pulse input
	1 ms +/- 1 ms (AI1, AI2, AI3) - analog input
	5 ms +/- 1 ms (AQ1, AQ2) - analog output
Accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
	+/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Linearity error	AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
	AQ1, AQ2: +/- 0.2 % for analog output
Refresh time	Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Isolation	Between power and control terminals
Environment
Operating altitude	<= 1000 m without derating
	1000...4800 m with current derating 1 % per 100 m
Operating position	Vertical +/- 10 degree
product certifications	UL
	TÜV
	CSA
Marking	CE
standards	UL 508C
	EN/IEC 61800-3
	EN/IEC 61800-5-1
	IEC 61000-3-12
	IEC 60721-3
	IEC 61508
	IEC 13849-1
Maximum THDI	<48 % from 80...100 % of load conforming to IEC 61000-3-12
Assembly style	Enclosed
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
	Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
	Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
	1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
	Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3
	Class 3S3 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)	Class 3K5 according to EN 60721-3
Volume of cooling air	215 m3/h
Overvoltage category	III
Regulation loop	Adjustable PID regulator
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Noise level	59.5 dB conforming to 86/188/EEC
Vibration resistance	1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
	1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Environmental characteristic	Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
	Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3
Relative humidity	5…95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for operation	-15…50 °C (without derating)
	50…60 °C (with derating factor)
Noise level	59.5 dB
Pollution degree	2
Ambient air transport temperature	-40…70 °C
Ambient air temperature for storage	-40…70 °C

Weight	16.678000
Brand	Schneider Electric
Model	ATV930D15N4
Width [cm]	21.1
Height [cm]	54.59
Range	ATV930
Family	IDVSD
