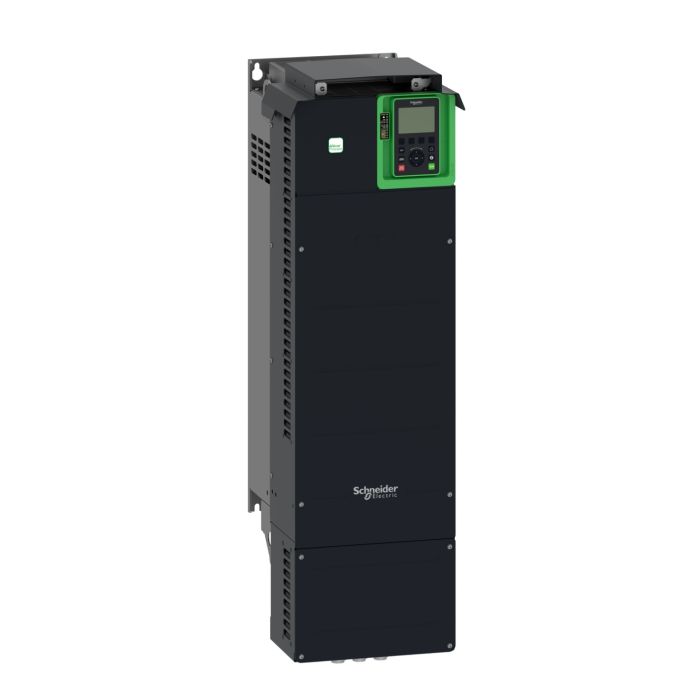

Schneider Electric Variable Speed Drive ATV630, 75 kW, 100 HP, 380-480V, IP21, UL Type 1
Out of stock
SKU
ATV630D75N4
Special Price EGP 336,655 Regular Price EGP 612,100
Quick Overview
Range of product: Altivar Process ATV600
Product type: Variable speed drive
Product specific application: Process and utilities
Variant: Standard version
The ATV630D75N4 Variable Speed Drive ATV630 is a high-capacity drive designed for applications that require robust and precise motor control. With a substantial power rating of 75 kW and compatibility with 380-480V power systems, this drive is ideal for heavy-duty industrial applications. It features an IP21 rating, making it suitable for indoor use, and is UL Type 1 certified for safety and reliability.
Key Features:
Robust Power: With a power rating of 75 kW (100 HP), this drive can handle demanding and high-capacity applications.
Wide Voltage Range: Designed for use with 380-480V power systems, ensuring optimal performance in industrial settings.
IP21 Rated: The IP21 rating ensures that this drive can be used safely indoors.
UL Type 1 Certified: UL Type 1 certification provides added safety and reliability.
Technical Specifications:
Product Type: Variable Speed Drive
Power Rating: 75 kW (100 HP)
Voltage Rating: 380-480V
Protection Rating: IP21
Certifications: UL Type 1
| Specifications | |
Main | |
| Range of product | Altivar Process ATV600 |
| Product or component type | Variable speed drive |
| Product specific application | Process and utilities |
| device short name | ATV630 |
| Variant | Standard version |
| Product destination | Asynchronous motors |
| Synchronous motors | |
| EMC filter | Integrated with 150 m conforming to EN/IEC 61800-3 category C3 |
| IP degree of protection | IP21 conforming to IEC 61800-5-1 |
| IP21 conforming to IEC 60529 | |
| [Us] rated supply voltage | 380...480 V |
| Degree of protection | UL type 1 conforming to UL 508C |
| Type of cooling | Forced convection |
| Supply frequency | 50...60 Hz - 5...5 % |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Motor power kW | 75 kW (normal duty) |
| 55 kW (heavy duty) | |
| Motor power hp | 100 hp normal duty |
| 75 hp heavy duty | |
| Line current | 131.3 A at 380 V (normal duty) |
| 112.7 A at 480 V (normal duty) | |
| 98.9 A at 380 V (heavy duty) | |
| 86.9 A at 480 V (heavy duty) | |
| Prospective line Isc | 50 kA |
| Apparent power | 93.7 kVA at 480 V (normal duty) |
| 72.2 kVA at 480 V (heavy duty) | |
| Continuous output current | 145 A at 2.5 kHz for normal duty |
| 106 A at 2.5 kHz for heavy duty | |
| Asynchronous motor control profile | Variable torque standard |
| Constant torque standard | |
| Optimized torque mode | |
| Synchronous motor control profile | Permanent magnet motor |
| Synchronous reluctance motor | |
| Speed drive output frequency | 0.1…500 Hz |
| Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2.5...8 kHz with derating factor |
| 2...8 kHz adjustable | |
| Safety function | STO (safe torque off) SIL 3 |
| Discrete input logic | 16 preset speeds |
| Communication port protocol | Ethernet |
| Modbus serial | |
| Modbus TCP | |
| Option card | Slot A: communication module, Profibus DP V1 |
| Slot A: communication module, PROFINET | |
| Slot A: communication module, DeviceNet | |
| Slot A: communication module, Modbus TCP/EtherNet/IP | |
| Slot A: communication module, CANopen daisy chain RJ45 | |
| Slot A: communication module, CANopen SUB-D 9 | |
| Slot A: communication module, CANopen screw terminals | |
| Slot A/slot B: digital and analog I/O extension module | |
| Slot A/slot B: output relay extension module | |
| Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link | |
| Communication module, BACnet MS/TP | |
| Communication module, Ethernet Powerlink | |
| Complementary | |
| Mounting mode | Wall mount |
| Maximum transient current | 159.5 A during 60 s (normal duty) |
| 159 A during 60 s (heavy duty) | |
| Network number of phases | 3 phases |
| Discrete output number | ٠ |
| Discrete output type | Relay outputs R1A, R1B, R1C 250 V AC 3000 mA |
| Relay outputs R1A, R1B, R1C 30 V DC 3000 mA | |
| Relay outputs R2A, R2C 250 V AC 5000 mA | |
| Relay outputs R2A, R2C 30 V DC 5000 mA | |
| Relay outputs R3A, R3C 250 V AC 5000 mA | |
| Relay outputs R3A, R3C 30 V DC 5000 mA | |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.1 x In during 60 s (normal duty) |
| 1.5 x In during 60 s (heavy duty) | |
| Motor slip compensation | Automatic whatever the load |
| Adjustable | |
| Not available in permanent magnet motor law | |
| Can be suppressed | |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s |
| Physical interface | Ethernet |
| 2-wire RS 485 | |
| Braking to standstill | By DC injection |
| Protection type | Thermal protection: motor |
| Safe torque off: motor | |
| Motor phase break: motor | |
| Thermal protection: drive | |
| Safe torque off: drive | |
| Overheating: drive | |
| Overcurrent between output phases and earth: drive | |
| Overload of output voltage: drive | |
| Short-circuit protection: drive | |
| Motor phase break: drive | |
| Overvoltages on the DC bus: drive | |
| Line supply overvoltage: drive | |
| Line supply undervoltage: drive | |
| Line supply phase loss: drive | |
| Overspeed: drive | |
| Break on the control circuit: drive | |
| Transmission rate | 10, 100 Mbits |
| 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps | |
| Frequency resolution | Display unit: 0.1 Hz |
| Analog input: 0.012/50 Hz | |
| Transmission frame | RTU |
| Electrical connection | Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 |
| Motor: screw terminal 95...120 mm²/AWG 3/0...250 kcmil | |
| Line side: screw terminal 95...120 mm²/AWG 3/0...250 kcmil | |
| Connector type | RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP |
| RJ45 (on the remote graphic terminal) for Modbus serial | |
| Data format | 8 bits, configurable odd, even or no parity |
| Type of polarization | No impedance |
| Exchange mode | Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| Number of addresses | 1…247 for Modbus serial |
| Method of access | Slave Modbus TCP |
| Supply | External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection |
| Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection | |
| Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection | |
| Local signalling | 3 LEDs for local diagnostic |
| 3 LEDs (dual colour) for embedded communication status | |
| 4 LEDs (dual colour) for communication module status | |
| 1 LED (red) for presence of voltage | |
| Width | 290 mm |
| height | 922 mm |
| Depth | 323 mm |
| Net weight | 58 kg |
| analogue input number | ٣ |
| Analogue input type | AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits |
| AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits | |
| AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits | |
| Discrete input number | ٨ |
| Discrete input type | DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) |
| Input compatibility | DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 | |
| STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2 | |
| Discrete input logic | Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) |
| Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1) | |
| analogue output number | ٢ |
| Analogue output type | Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits |
| Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits | |
| Software-configurable current DQ-, DQ+: 30 V DC | |
| Software-configurable current DQ-, DQ+: 100 mA | |
| Sampling duration | 2 ms +/- 0.5 ms (DI1...DI4) - discrete input |
| 5 ms +/- 1 ms (DI5, DI6) - discrete input | |
| 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input | |
| 10 ms +/- 1 ms (AO1) - analog output | |
| Accuracy | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
| +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output | |
| Linearity error | AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input |
| AO1, AO2: +/- 0.2 % for analog output | |
| Relay output number | ٣ |
| Relay output type | Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles |
| Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles | |
| Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles | |
| Refresh time | Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
| Minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| Maximum switching current | Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
| Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC | |
| Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC | |
| Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC | |
| Isolation | Between power and control terminals |
| Maximum output frequency | 500 kHz |
| Maximum input current | 131.3 A |
| Variable speed drive application selection | Building - HVAC compressor centrifugal |
| Food and beverage processing other application | |
| Mining mineral and metal fan | |
| Mining mineral and metal pump | |
| Oil and gas fan | |
| Water and waste water other application | |
| Building - HVAC screw compressor | |
| Food and beverage processing pump | |
| Food and beverage processing fan | |
| Food and beverage processing atomization | |
| Oil and gas electro submersible pump (ESP) | |
| Oil and gas water injection pump | |
| Oil and gas jet fuel pump | |
| Oil and gas compressor for refinery | |
| Water and waste water centrifuge pump | |
| Water and waste water positive displacement pump | |
| Water and waste water electro submersible pump (ESP) | |
| Water and waste water screw pump | |
| Water and waste water lobe compressor | |
| Water and waste water screw compressor | |
| Water and waste water compressor centrifugal | |
| Water and waste water fan | |
| Water and waste water conveyor | |
| Water and waste water mixer | |
| Motor power range AC-3 | 55…100 kW at 380…440 V 3 phases |
| 55…100 kW at 480…500 V 3 phases | |
| Quantity per set | 1 |
| Enclosure mounting | Wall mounted |
| Environment | |
| Insulation resistance | > 1 MOhm 500 V DC for 1 minute to earth |
| Noise level | 62.4 dB conforming to 86/188/EEC |
| Power dissipation in W | Natural convection: 174 W at 380 V, switching frequency 2.5 kHz |
| Forced convection: 1369 W at 380 V, switching frequency 2.5 kHz | |
| Volume of cooling air | 295 m3/h |
| Operating position | Vertical +/- 10 degree |
| Maximum THDI | <48 % from 80...100 % of load conforming to IEC 61000-3-12 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 | |
| Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | |
| 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 | |
| Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 | |
| Pollution degree | 2 conforming to EN/IEC 61800-5-1 |
| Vibration resistance | 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 |
| 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 | |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 |
| Ambient air temperature for operation | -15…50 °C (without derating) |
| 50…60 °C (with derating factor) | |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | <= 1000 m without derating |
| 1000...4800 m with current derating 1 % per 100 m | |
| product certifications | CSA |
| ATEX zone 2/22 | |
| TÜV | |
| ATEX INERIS | |
| UL | |
| DNV-GL | |
| Marking | CE |
| standards | UL 508C |
| EN/IEC 61800-3 | |
| EN/IEC 61800-3 environment 1 category C2 | |
| EN/IEC 61800-3 environment 2 category C3 | |
| EN/IEC 61800-5-1 | |
| IEC 61000-3-12 | |
| IEC 60721-3 | |
| IEC 61508 | |
| IEC 13849-1 | |
| Overvoltage category | III |
| Regulation loop | Adjustable PID regulator |
| Noise level | 62.4 dB |
| Pollution degree | 2 |
| Weight | 58.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630D75N4 |
| Width [cm] | 29 |
| Height [cm] | 92.2 |
| Range | ATV630 |
| Family | IDVSD |
Write Your Own Review
The information below is required for social login
Sign In
Create New Account
