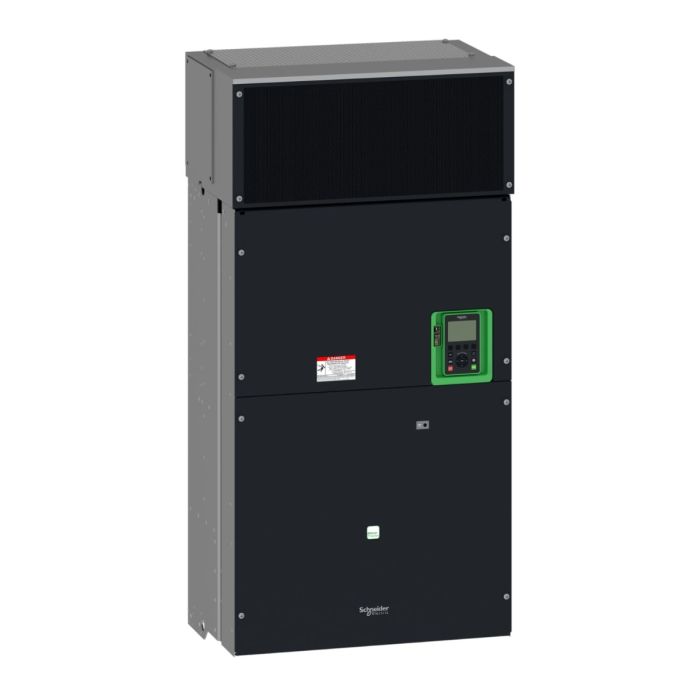

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard,1 Ethernet port,2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 315kW / 500hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 250kW / 400hp for applications requiring significant overload (up to 150%). It weighs 203kg and its dimensions are,598mm wide,1195mm high,380mm deep. This drive is focused on fluids management processing and energy saving,it offers extensive flexibility in water and wastewater,mining,minerals and metals,oil and gas and food and beverage applications. Accessories (fan kit,graphic display terminal) and options (I/O expansion modules,communicdules,EMC input filters) are available with Altivar Process ATV600 drives,depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management,asset management and also the overall performance of the process.

Specifications:

Range of Product	Altivar Process ATV600
Product Specific Application	Process and utilities
Product or Component Type	Variable speed drive
Variant	Standard version
Device short name	ATV630
Mounting Mode	Wall mount
Communication Port Protocol	Modbus serial
	Ethernet
	Modbus TCP
[Us] rated supply voltage	380...480 V - 15...10 %
[Us] rated supply voltage	380...480 V
Relative symmetric mains voltage tolerance	10%
Relative symmetric network frequency tolerance	5%
nominal output current	616.0 A
IP degree of protection	IP21
Product destination	Asynchronous motors
	Synchronous motors
EMC filter	Integrated 164.04 ft (50 m) IEC 61800-3 category C3
IP degree of protection	IP00IEC 61800-5-1
	IP00IEC 60529
	IP21 with kit VW3A9113)IEC 61800-5-1
	IP21 with kit VW3A9113)IEC 60529
type of cooling	Forced convection
Supply frequency	50...60 Hz - 5...5 %
Motor power kW	315 kW normal duty)
	250 kW heavy duty)
Maximum Horse Power Rating	500 hp normal duty
	400 hp heavy duty
Line current	569 A 380 V normal duty)
	461 A 480 V normal duty)
	457 A 380 V heavy duty)
	375 A 480 V heavy duty)
Continuous output current	616 A 2.5 kHz normal duty
	481 A 2.5 kHz heavy duty
Speed drive output frequency	0.1…500 Hz
Safety function	STO (safe torque off) SIL 3
Option card	Slot A communication module, Profibus DP V1
	Slot A communication module, PROFINET
	Slot A communication module, DeviceNet
	Slot A communication module, Modbus TCP/EtherNet/IP
	Slot A communication module, CANopen daisy chain RJ45
	Slot A communication module, CANopen SUB-D 9
	Slot A communication module, CANopen screw terminals
	Slot A/slot B digital and analog I/O extension module
	Slot A/slot B output relay extension module
	Slot A communication module, Ethernet IP/Modbus TCP/MD-Link
	communication module, BACnet MS/TP
	communication module, Ethernet Powerlink
Complementary
Discrete input number	8
Discrete input type	DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V)
Discrete input logic	16 preset speeds
Discrete output number	0
Discrete output type	Relay outputs R1A, R1B, R1C 250 V AC 3000 mA
	Relay outputs R1A, R1B, R1C 30 V DC 3000 mA
	Relay outputs R2A, R2C 250 V AC 5000 mA
	Relay outputs R2A, R2C 30 V DC 5000 mA
	Relay outputs R3A, R3C 250 V AC 5000 mA
	Relay outputs R3A, R3C 30 V DC 5000 mA
Analogue input number	3
Analogue input type	AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits
	AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits
	AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Analogue output number	2
Analogue output type	Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
	Software-configurable current AQ1, AQ2 0...20 mA 10 bits
	Software-configurable current DQ-, DQ+ 30 V DC
	Software-configurable current DQ-, DQ+ 100 mA
Relay output number	3
Relay output type	Configurable relay logic R1 fault relay NO/NC 100000 cycles
	Configurable relay logic R2 sequence relay NO 100000 cycles
	Configurable relay logic R3 sequence relay NO 100000 cycles
Maximum switching current	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
	Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC
	Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
	Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current	Relay output R1, R2, R3 5 mA 24 V DC
Phase	3 phase
Physical interface	Ethernet
	2-wire RS 485
Method of access	Slave Modbus TCP
Transmission Rate	10, 100 Mbits
	4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Transmission frame	RTU
Output voltage	<= power supply voltage
Permissible temporary current boost	1.1 x In 60 s normal duty)
	1.5 x In 60 s heavy duty)
Data format	8 bits, configurable odd, even or no parity
Type of polarization	No impedance
Frequency resolution	Display unit 0.1 Hz
	Analog input 0.012/50 Hz
Electrical connection	Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
	Line side screw terminal 4 x 185 mm² 3 x 350 kcmil
	Motor screw terminal 4 x 185 mm² 3 x 350 kcmil
Connector type	RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
	RJ45 on the remote graphic terminal)Modbus serial
Exchange mode	Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Number of addresses	1…247 Modbus serial
Supply	External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection
	Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection
	Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection
Local signalling	for local diagnostic 3 LEDs
	for embedded communication status 3 LEDs (dual colour)
	for communication module status 4 LEDs (dual colour)
	for presence of voltage 1 LED (red)
Input compatibility	DI1...DI6 discrete input level 1 PLC IEC 61131-2
	DI5, DI6 discrete input level 1 PLC IEC 65A-68
	STOA, STOB discrete input level 1 PLC IEC 61131-2
Discrete input logic	Positive logic (source) DI1...DI8), < 5 V, > 11 V
	Negative logic (sink) DI1...DI8), > 16 V, < 10 V
Sampling duration	2 ms +/- 0.5 ms DI1...DI4) - discrete input
	5 ms +/- 1 ms DI5, DI6) - discrete input
	5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input
	10 ms +/- 1 ms AO1) - analog output
Accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
	+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Linearity error	AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
	AO1, AO2 +/- 0.2 % analog output
Refresh time	Relay output R1, R2, R3)5 ms +/- 0.5 ms)
Isolation	Between power and control terminals
Variable speed drive application selection	Building - HVAC compressor centrifugal
	Food and beverage processing other application
	Mining mineral and metal fan
	Mining mineral and metal pump
	Oil and gas fan
	Water and waste water other application
	Building - HVAC screw compressor
	Food and beverage processing pump
	Food and beverage processing fan
	Food and beverage processing atomization
	Oil and gas electro submersible pump (ESP)
	Oil and gas water injection pump
	Oil and gas jet fuel pump
	Oil and gas compressor for refinery
	Water and waste water centrifuge pump
	Water and waste water positive displacement pump
	Water and waste water electro submersible pump (ESP)
	Water and waste water screw pump
	Water and waste water lobe compressor
	Water and waste water screw compressor
	Water and waste water compressor centrifugal
	Water and waste water fan
	Water and waste water conveyor
	Water and waste water mixer
Motor power range AC-3	250…500 kW 380…440 V 3 phase
	250…500 kW 480…500 V 3 phase
Enclosure mounting	Wall mounted
4 quadrant operation possible	FALSE
Asynchronous motor control profile	Constant torque standard
	Optimized torque mode
	Variable torque standard
Synchronous motor control profile	Permanent magnet motor
	Synchronous reluctance motor
Maximum output frequency	500 kHz
Acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s
Motor slip compensation	Adjustable
	Can be suppressed
	Automatic whatever the load
	Not available in permanent magnet motor law
Switching frequency	2.5...8 kHz with derating factor
	2...8 kHz adjustable
Nominal switching frequency	2.5 kHz
Braking to standstill	By DC injection
Brake chopper integrated	FALSE
Maximum Input Current per Phase	569.0 A
Maximum output voltage	480.0 V
Apparent power	351 kVA 480 V normal duty)
	286 kVA 480 V heavy duty)
Maximum transient current	678 A 60 s normal duty)
	722 A 60 s heavy duty)
Network Frequency	50-60 Hz
Prospective line Isc	50 kA
Base load current at high overload	481.0 A
Base load current at low overload	616.0 A
Power dissipation in W	Forced convection 7099 W
	Natural convection 769 W 380 V 2.5 kHz
With safety function Safely Limited Speed (SLS)	FALSE
With safety function Safe brake management (SBC/SBT)	FALSE
With safety function Safe Operating Stop (SOS)	FALSE
With safety function Safe Position (SP)	FALSE
With safety function Safe programmable logic	FALSE
With safety function Safe Speed Monitor (SSM)	FALSE
With safety function Safe Stop 1 (SS1)	FALSE
With sft fct Safe Stop 2 (SS2)	FALSE
With safety function Safe torque off (STO)	TRUE
With safety function Safely Limited Position (SLP)	FALSE
With safety function Safe Direction (SDI)	FALSE
Protection type	Thermal protection motor
	Safe torque off motor
	Motor phase break motor
	Thermal protection drive
	Safe torque off drive
	Overheating drive
	Overcurrent between output phases and earth drive
	Overload of output voltage drive
	Short-circuit protection drive
	Motor phase break drive
	Overvoltages on the DC bus drive
	Line supply overvoltage drive
	Line supply undervoltage drive
	Line supply phase loss drive
	Overspeed drive
	Break on the control circuit drive
Quantity per Set	1
Width	23.5 in (598 mm)
Height	47.05 in (1195 mm)
Depth	15.0 in (380 mm)
Net Weight	447.5 lb(US) (203 kg)
Environment
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Noise level	68 dB 86/188/EEC
Pollution degree	2 IEC 61800-5-1
Vibration resistance	1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
	1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn 11 ms IEC 60068-2-27
Relative humidity	5…95 % without condensation IEC 60068-2-3
Ambient air temperature for operation	14…104 °F (-10…40 °C) (without derating)
	104…140 °F (40…60 °C) (with derating factor)
Operating altitude	<= 3280.84 ft (1000 m) without derating
	3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
Operating position	Vertical +/- 10 degree
Product Certifications	UL
	TÜV
	CSA
Marking	CE
Standards	UL 508C
	IEC 61800-3
	IEC 61800-3 environment 1 category C2
	EN/IEC 61800-3 environment 2 category C3
	IEC 61800-5-1
	IEC 61000-3-12
	IEC 60721-3
	IEC 61508
	IEC 13849-1
Maximum THDI	<48 % full load IEC 61000-3-12
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
	Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
	Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
	1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
	Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3
	Class 3S3 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	60 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)	Class 3K5 according to EN 60721-3
Volume of cooling air	332862.7 Gal/hr(US) (1260 m3/h)
Overvoltage category	III
Regulation loop	Adjustable PID regulator
Noise level	76 dB
pollution degree	2
Ambient air transport temperature	-40…158 °F (-40…70 °C)
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)
Ordering and shipping details
Category	US1CP4E22207
Discount Schedule	CP4E
GTIN	3606481154736
Returnability	No
Country of origin	CN

Weight	3.000000
Brand	Schneider Electric
Model	ATV630C31N4
Range	Altivar Process ATV600
Family	IDVSD
Type	Variable Speed Drive
Voltage ~ Frequency	50-60 Hz
IP Degree of Protection	IP21

Schneider Electric Variable speed drive ATV630, 315kW/500HP, 380...480V, IP00

Installment Plans

Schneider Electric Variable speed drive ATV630, 315kW/500HP, 380...480V, IP00

Installment Plans

The information below is required for social login

Sign In

Create New Account

Forgot Password
