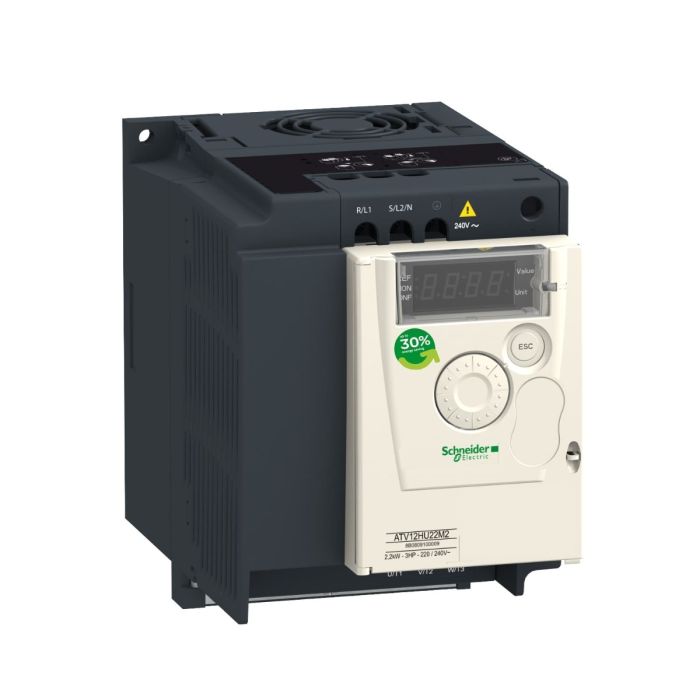

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions,basic cabling,and easy motor control setting. Based on the needs,it can be delivered without heatsink,with embedded EMC filter,or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications,in industry,commercial machines and HVAC machines such as conveyors,pumps,extractors,access barriers and treadmills. It conforms to IEC,UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive,reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications,this allows up to 30% energy savings.

Specifications:

Main
Range of product	Altivar 12
Product or component type	Variable speed drive
Product specific application	Simple machine
Mounting mode	Cabinet mount
Communication port protocol	Modbus
Supply frequency	50/60 Hz +/- 5 %
[Us] rated supply voltage	200...240 V - 15...10 %
nominal output current	7.5 A
Motor power kW	1.5 kW
Motor power hp	2 hp
EMC filter	Integrated
IP degree of protection	IP20
Motor power hp	2 hp
Complementary
Discrete input number	4
Discrete output number	2
Analogue input number	1
Analogue output number	1
Relay output number	1
Physical interface	2-wire RS 485
Connector type	1 RJ45
Continuous output current	7.5 A at 4 kHz
Method of access	Server Modbus serial
Speed drive output frequency	0.5…400 Hz
Speed range	1…20
Sampling duration	20 ms, tolerance +/- 1 ms for logic input
	10 ms for analogue input
Linearity error	+/- 0.3 % of maximum value for analogue input
Frequency resolution	Analog input: converter A/D, 10 bits
	Display unit: 0.1 Hz
Time constant	20 ms +/- 1 ms for reference change
Transmission rate	9.6 kbit/s
	19.2 kbit/s
	38.4 kbit/s
Transmission frame	RTU
Number of addresses	1…247
Data format	8 bits, configurable odd, even or no parity
Communication service	Read holding registers (03) 29 words
	Write single register (06) 29 words
	Write multiple registers (16) 27 words
	Read/write multiple registers (23) 4/4 words
	Read device identification (43)
Type of polarization	No impedance
4 quadrant operation possible	FALSE
Asynchronous motor control profile	Sensorless flux vector control
	Quadratic voltage/frequency ratio
	Voltage/frequency ratio (V/f)
Maximum output frequency	4 kHz
Transient overtorque	150…170 % of nominal motor torque depending on drive rating and type of motor
Acceleration and deceleration ramps	U
	S
	Linear from 0 to 999.9 s
Motor slip compensation	Adjustable
	Preset in factory
Switching frequency	2...16 kHz adjustable
	4...16 kHz with derating factor
Nominal switching frequency	4 kHz
Braking to standstill	By DC injection
Brake chopper integrated	FALSE
Line current	17.8 A at 100 V (heavy duty)
	14.9 A at 120 V (heavy duty)
Maximum input current	14.9 A
Maximum output voltage	240 V
Apparent power	3.6 kVA at 240 V (heavy duty)
Maximum transient current	11.2 A during 60 s (heavy duty)
	12.4 A during 2 s (heavy duty)
Network frequency	50...60 Hz
Relative symmetric network frequency tolerance	5%
Prospective line Isc	1 kA
Base load current at high overload	7.5 A
Power dissipation in W	Forced cooling: 72.0 W
With safety function Safely Limited Speed (SLS)	FALSE
With safety function Safe brake management (SBC/SBT)	FALSE
With safety function Safe Operating Stop (SOS)	FALSE
With safety function Safe Position (SP)	FALSE
With safety function Safe programmable logic	FALSE
With safety function Safe Speed Monitor (SSM)	FALSE
With safety function Safe Stop 1 (SS1)	FALSE
With sft fct Safe Stop 2 (SS2)	FALSE
With safety function Safe torque off (STO)	FALSE
With safety function Safely Limited Position (SLP)	FALSE
With safety function Safe Direction (SDI)	FALSE
Protection type	Line supply overvoltage
	Line supply undervoltage
	Overcurrent between output phases and earth
	Overheating protection
	Short-circuit between motor phases
	Against input phase loss in three-phase
	Thermal motor protection via the drive by continuous calculation of I²t
Tightening torque	1.2 N.m
Insulation	Electrical between power and control
Quantity per set	Set of 1
Width	105 mm
Height	142 mm
Depth	156.2 mm
Net weight	1.4 kg
Environment
Operating altitude	> 1000...2000 m with current derating 1 % per 100 m
	<= 1000 m without derating
Operating position	Vertical +/- 10 degree
Product certifications	NOM
	CSA
	C-Tick
	UL
	GOST
	RCM
	KC
Marking	CE
Standards	UL 508C
	UL 618000-5-1
	IEC 61800-5-1
	IEC 61800-3
Assembly style	With heat sink
Electromagnetic compatibility	Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
	Immunity to conducted disturbances level 3 conforming to IEC 61000-4-6
	Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
	Surge immunity test level 3 conforming to IEC 61000-4-5
	Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3
	Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Volume of cooling air	16 m3/h
Overvoltage category	Class III
Regulation loop	Adjustable PID regulator
Electromagnetic emission	Radiated emissions environment 1 category C2 conforming to IEC 61800-3 2...16 kHz shielded motor cable
	Conducted emissions with integrated EMC filter environment 1 category C1 conforming to IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m
	Conducted emissions with additional EMC filter environment 1 category C1 conforming to IEC 61800-3 4...12 kHz shielded motor cable <20 m
	Conducted emissions with additional EMC filter environment 1 category C2 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m
	Conducted emissions with additional EMC filter environment 2 category C3 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m
	Conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 4...16 kHz shielded motor cable <5 m
	Conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <10 m
Vibration resistance	1 gn (f = 13…200 Hz) conforming to IEC 60068-2-6
	1.5 mm peak to peak (f = 3…13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6
Shock resistance	15 gn conforming to IEC 60068-2-27 for 11 ms
Relative humidity	5…95 % without condensation conforming to IEC 60068-2-3
	5…95 % without dripping water conforming to IEC 60068-2-3
Noise level	45 dB
pollution degree	2
Ambient air transport temperature	-25…70 °C
Ambient air temperature for operation	-10…50 °C without derating
	50…60 °C with current derating 2.2 % per °C
Ambient air temperature for storage	-25…70 °C

Weight	3.000000
Brand	Schneider Electric
Model	ATV12HU15M2
Range	ATV12
Family	IDVSD
Type	Variable Speed Drive
IP Degree of Protection	IP20

Schneider Electric Variable speed drive ATV12, 1.5kW - 2hp, 200..240V,1ph, with heat sink
