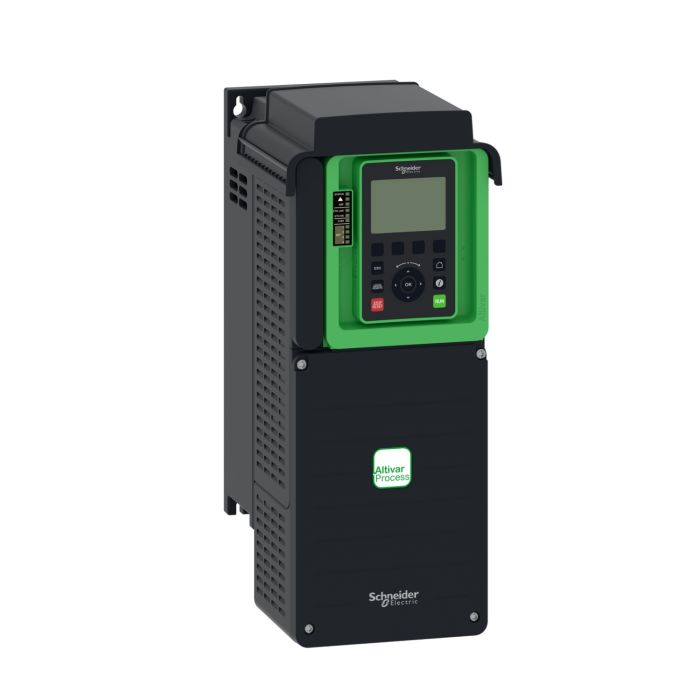

Schneider Electric Variable Speed Drive Altivar 630, 11 kW, 15 HP, 380-480V, IP21, UL Type 1
Out of stock
SKU
ATV630D11N4
Special Price EGP 83,567 Regular Price EGP 151,939
Quick Overview
Range of product: Altivar Process ATV600
Product type: Variable speed drive
Product specific application: Process and utilities
Variant: Standard version
The ATV630D11N4 Variable Speed Drive Altivar 630 is a powerful and reliable drive designed to provide precise control over motor speed and performance. With a power rating of 11 kW and compatibility with 380-480V power systems, this drive is suitable for various industrial applications. It features an IP21 rating for protection and is designed to meet UL Type 1 standards.
Key Features:
Precise Speed Control: The Altivar 630 drive offers precise control over the speed and performance of your motor, making it suitable for a variety of applications.
High Power Rating: With an 11 kW power rating, it is capable of handling industrial-grade tasks.
Voltage Compatibility: Designed for use with 380-480V power systems, ensuring high performance in industrial settings.
IP21 Rating: The drive is rated IP21, providing protection against dust and moisture.
UL Type 1 Certified: Designed to meet UL Type 1 standards for safety and reliability.
Technical Specifications:
Product Type: Variable Speed Drive
Power Rating: 11 kW
Voltage Rating: 380-480V
Protection Rating: IP21
UL Type: Type 1
| Specifications | |
Main | |
| Range of Product | Altivar Process ATV600 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Process and utilities |
| device short name | ATV630 |
| Variant | Standard version |
| Product destination | Asynchronous motors |
| Synchronous motors | |
| EMC filter | Integrated 164.04 ft (50 m) EN/IEC 61800-3 category C2 |
| Integrated 492.13 ft (150 m) EN/IEC 61800-3 category C3 | |
| IP degree of protection | IP21IEC 61800-5-1 |
| IP21IEC 60529 | |
| [Us] rated supply voltage | 380...480 V |
| Degree of protection | UL type 1 UL 508C |
| Type of cooling | Forced convection |
| Supply frequency | 50...60 Hz - 5...5 % |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Motor power kW | 11 kW normal duty) |
| 7.5 kW heavy duty) | |
| Maximum Horse Power Rating | 15 hp normal duty |
| 10 hp heavy duty | |
| Line current | 19.8 A 380 V normal duty) |
| 17 A 480 V normal duty) | |
| 14.1 A 380 V heavy duty) | |
| 12.5 A 480 V heavy duty) | |
| Prospective line Isc | 50 kA |
| Apparent power | 14.1 kVA 480 V normal duty) |
| 10.4 kVA 480 V heavy duty) | |
| Continuous output current | 23.5 A 4 kHz normal duty |
| 16.5 A 4 kHz heavy duty | |
| Asynchronous motor control profile | Constant torque standard |
| Optimized torque mode | |
| Variable torque standard | |
| Synchronous motor control profile | Permanent magnet motor |
| Synchronous reluctance motor | |
| Speed drive output frequency | 0.1…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2...12 kHz adjustable |
| 4...12 kHz with derating factor | |
| Safety function | STO (safe torque off) SIL 3 |
| Discrete input logic | 16 preset speeds |
| Communication Port Protocol | Modbus TCP |
| Ethernet | |
| Modbus serial | |
| Option card | Slot A communication module, Profibus DP V1 |
| Slot A communication module, PROFINET | |
| Slot A communication module, DeviceNet | |
| Slot A communication module, Modbus TCP/EtherNet/IP | |
| Slot A communication module, CANopen daisy chain RJ45 | |
| Slot A communication module, CANopen SUB-D 9 | |
| Slot A communication module, CANopen screw terminals | |
| Slot A/slot B digital and analog I/O extension module | |
| Slot A/slot B output relay extension module | |
| Slot A communication module, Ethernet IP/Modbus TCP/MD-Link | |
| communication module, BACnet MS/TP | |
| communication module, Ethernet Powerlink | |
| Complementary | |
| Mounting Mode | Wall mount |
| Maximum transient current | 25.9 A 60 s normal duty) |
| 24.8 A 60 s heavy duty) | |
| Phase | 3 phase |
| Discrete output number | ٠ |
| Discrete output type | Relay outputs R1A, R1B, R1C 250 V AC 3000 mA |
| Relay outputs R1A, R1B, R1C 30 V DC 3000 mA | |
| Relay outputs R2A, R2C 250 V AC 5000 mA | |
| Relay outputs R2A, R2C 30 V DC 5000 mA | |
| Relay outputs R3A, R3C 250 V AC 5000 mA | |
| Relay outputs R3A, R3C 30 V DC 5000 mA | |
| Output voltage | <= power supply voltage |
| Permissible temporary current boost | 1.1 x In 60 s normal duty) |
| 1.5 x In 60 s heavy duty) | |
| Motor slip compensation | Adjustable |
| Can be suppressed | |
| Not available in permanent magnet motor law | |
| Automatic whatever the load | |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s |
| Physical interface | Ethernet |
| 2-wire RS 485 | |
| Braking to standstill | By DC injection |
| Protection type | Thermal protection motor |
| Safe torque off motor | |
| Motor phase break motor | |
| Thermal protection drive | |
| Safe torque off drive | |
| Overheating drive | |
| Overcurrent between output phases and earth drive | |
| Overload of output voltage drive | |
| Short-circuit protection drive | |
| Motor phase break drive | |
| Overvoltages on the DC bus drive | |
| Line supply overvoltage drive | |
| Line supply undervoltage drive | |
| Line supply phase loss drive | |
| Overspeed drive | |
| Break on the control circuit drive | |
| Transmission Rate | 10, 100 Mbits |
| 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps | |
| Frequency resolution | Display unit 0.1 Hz |
| Analog input 0.012/50 Hz | |
| Transmission frame | RTU |
| Electrical connection | Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 |
| Motor screw terminal 6...10 mm² AWG 10...AWG 8 | |
| Line side screw terminal 6 mm² AWG 10 | |
| Connector type | RJ45 on the remote graphic terminal)Ethernet/Modbus TCP |
| RJ45 on the remote graphic terminal)Modbus serial | |
| Data format | 8 bits, configurable odd, even or no parity |
| Type of polarization | No impedance |
| Exchange mode | Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| Number of addresses | 1…247 Modbus serial |
| Method of access | Slave Modbus TCP |
| Supply | External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection |
| Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection | |
| Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection | |
| Local signalling | For local diagnostic 3 LEDs |
| for embedded communication status 3 LEDs (dual colour) | |
| for communication module status 4 LEDs (dual colour) | |
| for presence of voltage 1 LED (red) | |
| Width | 6.73 in (171 mm) |
| Height | 16.10 in (409 mm) |
| Depth | 9.17 in (233 mm) |
| Net Weight | 16.98 lb(US) (7.7 kg) |
| analogue input number | ٣ |
| Analogue input type | AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits |
| AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits | |
| AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits | |
| Discrete input number | ٨ |
| Discrete input type | DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) |
| Input compatibility | DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 |
| DI5, DI6 discrete input level 1 PLC IEC 65A-68 | |
| STOA, STOB discrete input level 1 PLC EN/IEC 61131-2 | |
| Discrete input logic | Positive logic (source) DI1...DI8), < 5 V, > 11 V |
| Negative logic (sink) DI1...DI8), > 16 V, < 10 V | |
| analogue output number | ٢ |
| Analogue output type | Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits |
| Software-configurable current AQ1, AQ2 0...20 mA 10 bits | |
| Software-configurable current DQ-, DQ+ 30 V DC | |
| Software-configurable current DQ-, DQ+ 100 mA | |
| Sampling duration | 2 ms +/- 0.5 ms DI1...DI4) - discrete input |
| 5 ms +/- 1 ms DI5, DI6) - discrete input | |
| 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input | |
| 10 ms +/- 1 ms AO1) - analog output | |
| Accuracy | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
| +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output | |
| Linearity error | AI1, AI2, AI3 +/- 0.15 % of maximum value analog input |
| AO1, AO2 +/- 0.2 % analog output | |
| Relay output number | ٣ |
| Relay output type | Configurable relay logic R1 fault relay NO/NC 100000 cycles |
| Configurable relay logic R2 sequence relay NO 100000 cycles | |
| Configurable relay logic R3 sequence relay NO 100000 cycles | |
| Refresh time | Relay output R1, R2, R3)5 ms +/- 0.5 ms) |
| Minimum switching current | Relay output R1, R2, R3 5 mA 24 V DC |
| Maximum switching current | Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC |
| Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC | |
| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC | |
| Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC | |
| Isolation | Between power and control terminals |
| Maximum output frequency | 500 kHz |
| Maximum Input Current per Phase | 19.8 A |
| Variable speed drive application selection | Building - HVAC compressor centrifugal |
| Food and beverage processing other application | |
| Mining mineral and metal fan | |
| Mining mineral and metal pump | |
| Oil and gas fan | |
| Water and waste water other application | |
| Building - HVAC screw compressor | |
| Food and beverage processing pump | |
| Food and beverage processing fan | |
| Food and beverage processing atomization | |
| Oil and gas electro submersible pump (ESP) | |
| Oil and gas water injection pump | |
| Oil and gas jet fuel pump | |
| Oil and gas compressor for refinery | |
| Water and waste water centrifuge pump | |
| Water and waste water positive displacement pump | |
| Water and waste water electro submersible pump (ESP) | |
| Water and waste water screw pump | |
| Water and waste water lobe compressor | |
| Water and waste water screw compressor | |
| Water and waste water compressor centrifugal | |
| Water and waste water fan | |
| Water and waste water conveyor | |
| Water and waste water mixer | |
| Motor power range AC-3 | 7…11 kW 380…440 V 3 phase |
| 7…11 kW 480…500 V 3 phase | |
| Quantity per Set | 1 |
| Enclosure mounting | Wall mounted |
| Environment | |
| Insulation resistance | > 1 MOhm 500 V DC for 1 minute to earth |
| Noise level | 56 dB 86/188/EEC |
| Power dissipation in W | Natural convection 51 W 380 V 4 kHz |
| Forced convection 255 W 380 V 4 kHz | |
| Volume of cooling air | 27210.21 Gal/hr(US) (103 m3/h) |
| Operating position | Vertical +/- 10 degree |
| Maximum THDI | <48 % from 80...100 % of load IEC 61000-3-12 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 IEC 61000-4-2 |
| Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 | |
| Electrical fast transient/burst immunity test level 4 IEC 61000-4-4 | |
| 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 | |
| Conducted radio-frequency immunity test level 3 IEC 61000-4-6 | |
| Pollution degree | 2 EN/IEC 61800-5-1 |
| Vibration resistance | 1.5 mm peak to peak 2…13 Hz)IEC 60068-2-6 |
| 1 gn 13…200 Hz)IEC 60068-2-6 | |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation IEC 60068-2-3 |
| Ambient air temperature for operation | 5…122 °F (-15…50 °C) without derating) |
| 122…140 °F (50…60 °C) with derating factor) | |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating |
| 1000...4800 m with current derating 1 % per 100 m | |
| Product Certifications | ATEX INERIS |
| CSA | |
| UL | |
| ATEX zone 2/22 | |
| DNV-GL | |
| TÜV | |
| Marking | CE |
| standards | UL 508C |
| EN/IEC 61800-3 | |
| EN/IEC 61800-3 environment 1 category C2 | |
| EN/IEC 61800-3 environment 2 category C3 | |
| EN/IEC 61800-5-1 | |
| IEC 61000-3-12 | |
| IEC 60721-3 | |
| IEC 61508 | |
| IEC 13849-1 | |
| Overvoltage category | III |
| Regulation loop | Adjustable PID regulator |
| Noise level | 56 dB |
| Weight | 7.700000 |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630D11N4 |
| Width [cm] | 4.5 |
| Height [cm] | 12.4 |
| Range | ATV630 |
| Family | IDVSD |
Write Your Own Review
The information below is required for social login
Sign In
Create New Account
