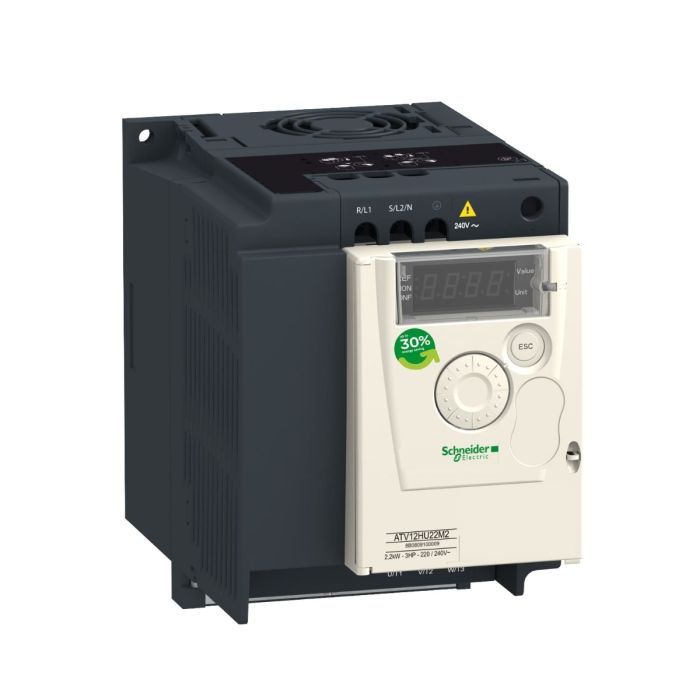

Schneider Electric Variable Speed Drive Altivar 12, 2.2 kW (3 HP), 200-240V, 1-Phase with Heat Sink

The ATV12HU22M2 Variable Speed Drive Altivar 12 is a powerful and efficient motor drive designed for a wide range of applications. With a power rating of 2.2 kW (3 HP) and compatibility with 200-240V single-phase power systems, it provides precise control over motor speed and performance. This drive is equipped with a heat sink for optimal thermal management, ensuring reliable operation.

Key Features:

Precise Speed Control: The Altivar 12 drive offers precise control over the speed and performance of your motor, making it suitable for a variety of applications.

Single-Phase Compatibility: Designed for use with 200-240V single-phase power systems, making it versatile and easy to install.

Thermal Management: The integrated heat sink helps maintain the drive's temperature, ensuring reliable and efficient operation.

Compact Design: Its compact size allows for easy installation even in tight spaces.

Technical Specifications:

Product Type: Variable Speed Drive

Power Rating: 2.2 kW (3 HP)

Voltage Rating: 200-240V

Phase: 1-Phase

Thermal Management: With Heat Sink

Specifications
Main
Range of Product	Altivar 12
Product or Component Type	Variable speed drive
Product Specific Application	Simple machine
Mounting Mode	Cabinet mount
Communication Port Protocol	Modbus
Supply frequency	50/60 Hz +/- 5 %
[Us] rated supply voltage	200...240 V - 15...10 %
Nominal output current	10:00 AM
Maximum Horse Power Rating	3 hp
Motor power kW	2.2 kW
Maximum Horse Power Rating	3 hp
EMC filter	Integrated
IP degree of protection	IP20
Complementary
Discrete input number	4
Discrete output number	2
analogue input number	1
analogue output number	1
Relay output number	1
Physical interface	2-wire RS 485
Connector Type	1 RJ45
Continuous output current	10 A 4 kHz
Method of access	Server Modbus serial
Speed drive output frequency	0.5…400 Hz
Speed range	1…20
Sampling duration	20 ms +/- 1 ms logic input
	10 ms analogue input
Linearity error	+/- 0.3 % of maximum value analogue input
Frequency resolution	Analog input converter A/D, 10 bits
	Display unit 0.1 Hz
Time constant	20 ms +/- 1 ms for reference change
Transmission Rate	9.6 kbit/s
	19.2 kbit/s
	38.4 kbit/s
Transmission frame	RTU
Number of addresses	1…247
Data format	8 bits, configurable odd, even or no parity
Communication service	Read holding registers (03) 29 words
	Write single register (06) 29 words
	Write multiple registers (16) 27 words
	Read/write multiple registers (23) 4/4 words
	Read device identification (43)
Type of polarization	No impedance
4 quadrant operation possible	FALSE
Asynchronous motor control profile	Sensorless flux vector control
	Quadratic voltage/frequency ratio
	Voltage/frequency ratio (V/f)
Maximum output frequency	4 kHz
Transient overtorque	150…170 % of nominal motor torque depending on drive rating and type of motor
Acceleration and deceleration ramps	Linear from 0 to 999.9 s
	U
	S
Motor slip compensation	Adjustable
	Preset in factory
Switching frequency	2...16 kHz adjustable
	4...16 kHz with derating factor
Nominal switching frequency	4 kHz
Braking to standstill	By DC injection
Brake chopper integrated	FALSE
Line current	24.0 A 100 V heavy duty)
	20.2 A 120 V heavy duty)
Maximum Input Current per Phase	20.2 A
Maximum output voltage	240 V
Apparent power	4.8 kVA 240 V heavy duty)
Maximum transient current	15.0 A 60 s heavy duty)
	16.5 A 2 s heavy duty)
Network Frequency	50-60 Hz
Relative symmetric network frequency tolerance	٠
Prospective line Isc	1 kA
Base load current at high overload	10.0 A
Power dissipation in W	Forced cooling 93.0 W
With safety function Safely Limited Speed (SLS)	FALSE
With safety function Safe brake management (SBC/SBT)	FALSE
With safety function Safe Operating Stop (SOS)	FALSE
With safety function Safe Position (SP)	FALSE
With safety function Safe programmable logic	FALSE
With safety function Safe Speed Monitor (SSM)	FALSE
With safety function Safe Stop 1 (SS1)	FALSE
With sft fct Safe Stop 2 (SS2)	FALSE
With safety function Safe torque off (STO)	FALSE
With safety function Safely Limited Position (SLP)	FALSE
With safety function Safe Direction (SDI)	FALSE
Protection type	Line supply overvoltage
	Line supply undervoltage
	Overcurrent between output phases and earth
	Overheating protection
	Short-circuit between motor phases
	Against input phase loss in three-phase
	Thermal motor protection via the drive by continuous calculation of I²t
tightening torque	10.62 lbf.in (1.2 N.m)
insulation	Electrical between power and control
Quantity per Set	Set of 1
Width	4.13 in (105 mm)
Height	5.59 in (142 mm)
Depth	6.15 in (156.2 mm)
Net Weight	3.09 lb(US) (1.4 kg)
Environment
Operating altitude	> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m
	<= 3280.84 ft (1000 m) without derating
Operating position	Vertical +/- 10 degree
Product Certifications	NOM
	CSA
	C-tick
	UL
	GOST
	RCM
	KC
Marking	CE
standards	UL 508C
	UL 618000-5-1
	EN/IEC 61800-5-1
	EN/IEC 61800-3
Assembly style	With heat sink
Electromagnetic compatibility	Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4
	Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2
	Immunity to conducted disturbances level 3 EN/IEC 61000-4-6
	Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3
	Surge immunity test level 3 EN/IEC 61000-4-5
	Voltage dips and interruptions immunity test EN/IEC 61000-4-11
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3
	Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Volume of cooling air	4226.83 Gal/hr(US) (16 m3/h)
Overvoltage category	Class III
Regulation loop	Adjustable PID regulator
Electromagnetic emission	Radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable
	Conducted emissions with integrated EMC filter environment 1 category C1 EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <16.40 ft (5 m)
	Conducted emissions with additional EMC filter environment 1 category C1 EN/IEC 61800-3 4...12 kHz shielded motor cable <65.62 ft (20 m)
	Conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12 kHz shielded motor cable <164.04 ft (50 m)
	Conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12 kHz shielded motor cable <164.04 ft (50 m)
	Conducted emissions with integrated EMC filter environment 1 category C2 EN/IEC 61800-3 4...16 kHz shielded motor cable <16.40 ft (5 m)
	Conducted emissions with integrated EMC filter environment 1 category C2 EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <32.81 ft (10 m)
Vibration resistance	1 gn 13…200 Hz)EN/IEC 60068-2-6
	1.5 mm peak to peak 3…13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6
Shock resistance	15 gn 11 ms EN/IEC 60068-2-27
Relative humidity	5…95 % without condensation IEC 60068-2-3
	5…95 % without dripping water IEC 60068-2-3
Noise level	45 dB

Weight	1.400000
Brand	Schneider Electric
Model	ATV12HU22M2
Depth [cm]	15.62
Width [cm]	10.5
Height [cm]	14.2
Range	ATV12
Family	IDVSD
