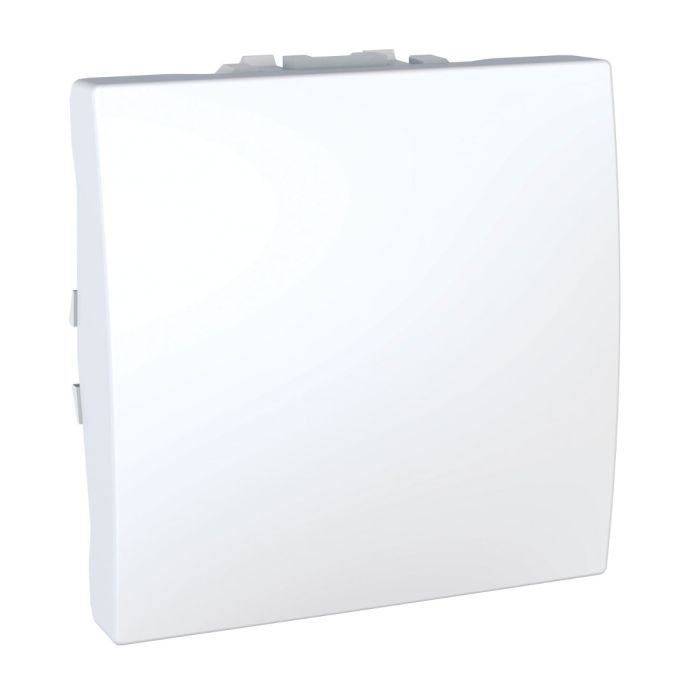

Schneider Electric, Unica, Rocker Switch, 1-Way, 10 Ax 250 Vac, 2 M, White

In stock

SKU

MGU3.201T.18

Brand

Schneider Electric

Special Price EGP 87 Regular Price EGP 174

Schneider Electric, Unica, Rocker Switch, 1-Way, 10 Ax 250 Vac, 2 M, White is available to buy in increments of 1

Quick Overview

Range: Unica
Product Type: Switch
Rated Current: 10 AX
Number of Modules: 2 modules

Main
Range of product	Unica
Aesthetic name	Unica (standard aesthetic)
Product or component type	Switch
Device presentation	Mechanism
Technology type	Electromechanical
Switch function	1-pole 1-way
Number of rocker	1
Device application	Light control
Provided equipment	Internal power connection
Colour tint	White
Complementary
Rated current	10 AX
[Ue] rated operational voltage	250 V
Network type	AC
Network frequency	50/60 Hz
Electrical durability	10000 cycles
Insulation resistance	> 5 MOhm at 500 V
Dielectric strength	2000 V
Minimum load breaking capacity	200 operations 1.25 In and 1.1 Un, cos phi = 0.3
Opening distance	> 3 mm
Actuator	Rocker
Number of modules	2 modules
Connections - terminals	Screw terminals
Cable cross section	0…2.5 mm² rigid cable
	0…2.5 mm² flexible cable
Material	ASA + PC: mechanism cover
Fixing mode	Clip-in
Width	22.5 mm
Height	45 mm
Depth	34 mm
Embedding depth	22 mm
Ambient air temperature for operation	25…35 °C
Ambient air temperature for storage	0…50 °C
Standards	EMC directive
	LV directive
	EN 60669-1
Environment
IP degree of protection	IP20
IK degree of protection	IK01
Environmental characteristic	Window-cleaning fluid
	Petrol
	Alcohol
	Liquid soap
	Oil
	UV resistant
	Acetone
	Bleach
