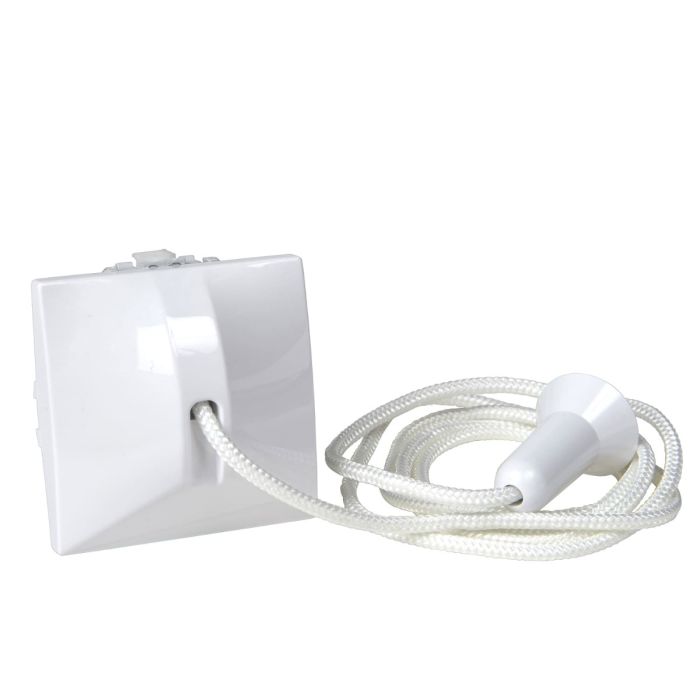

Schneider Electric Unica, Pull String Switch, 10A 250V AC, 2M, White
In stock
SKU
MGU3.226.18
Special Price EGP 100 Regular Price EGP 200
Schneider Electric Unica, Pull String Switch, 10A 250V AC, 2M, White is available to buy in increments of 1
Quick Overview
Rnge: Unica
Product type: Pull string switch
Rated current: 10A
Number of modules: 2 module
You May Also Like:
Schneider Electric Unica, Rocker Switch, 1-way, 20 A 250 VAC, 2M, WhiteSpecial Price EGP 269 Regular Price EGP 538
Schneider Electric Unica, 1 S.O. 2P, EU/US, 1M, IvorySpecial Price EGP 64 Regular Price EGP 128
Schneider Electric Unica Allegro, Cover Frame, 1 Module, IvorySpecial Price EGP 31 Regular Price EGP 62
Schneider Electric Unica Allegro, Cover Frame, 1 module, Graphite GreySpecial Price EGP 31 Regular Price EGP 62
Schneider Electric Unica, 1 Rj45 Socket (S-One), 1M, Cat.6 (MGU3.414.25)Special Price EGP 285 Regular Price EGP 569
Schneider Electric Unica Quadro, Cover Frame, 2 Modules, IvorySpecial Price EGP 34 Regular Price EGP 67
Schneider Electric Unica Allegro, Cover Frame, 2 Module, Technical GreySpecial Price EGP 31 Regular Price EGP 62
Schneider Electric Unica Allegro, Cover Frame, 1 module, Technical GreySpecial Price EGP 31 Regular Price EGP 62
Schneider Electric Unica Blind Cover Plate for 0.5 m, IvorySpecial Price EGP 22 Regular Price EGP 43
Schneider Electric Unica, 1 Telephone Socket, RJ11, 1 Module, WhiteSpecial Price EGP 180 Regular Price EGP 360
Schneider Electric Unica, Push Button, 1 Way, 10 A 250 VAC, 1M, WhiteSpecial Price EGP 98 Regular Price EGP 196
Schneider Electric Unica, Rocker switch, intermediate,10 AX 250 VAC, 1M, WhiteSpecial Price EGP 249 Regular Price EGP 497
Schneider Electric Unica, Rocker Switch, Intermediate, 10 AX 250 VAC, 1M, IvorySpecial Price EGP 260 Regular Price EGP 520
Schneider Electric Unica Buzzer, 230V AC, 2M, Clip-in, WhiteSpecial Price EGP 254 Regular Price EGP 508
Schneider Electric Unica Basic, Cover Frame, 2 gangs, H71, White/WhiteSpecial Price EGP 62 Regular Price EGP 123
Schneider Electric Unica, TV coaxial cable, 1M, WhiteSpecial Price EGP 179 Regular Price EGP 358
| Main | |
| Range | Unica |
| Product or component type | Pull string switch |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism |
| Device application | Control |
| Switch function | 1-pole 1-way |
| Rated current | 10:00 AM |
| Actuator | Cord push-button |
| Number of modules | 2 modules |
| fixing mode | Clip-in |
| Colour tint | White (RAL 9003) |
| Complementary | |
| Technology type | Electromechanical |
| Cable length | 1 m |
| [Ue] rated operational voltage | 250 V |
| network type | AC |
| Network frequency | 50/60 Hz |
| Opening distance | > 3 mm |
| Connections - terminals | Screwless terminals |
| Cable cross section | 2.5 mm² flexible cable |
| 2.5 mm² rigid cable | |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Electrical durability | 40000 cycles, cos phi = 0.6 |
| Dielectric strength | 2000 V |
| Insulation resistance | > 5 MOhm at 500 V |
| Material | ASA + PC: mechanism cover |
| Standards | LV directive |
| EN 60669-1 | |
| EMC directive | |
| Ambient air temperature for operation | 25…35 °C |
| Ambient air temperature for storage | 0…50 °C |
| Embedding depth | 22 mm |
| Depth | 34 mm |
| Width | 45 mm |
| Height | 45 mm |
| Product weight | 0.0291 kg |
| Environment | |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Environmental characteristic | Oil |
| Alcohol | |
| Window-cleaning fluid | |
| UV resistant | |
| Acetone | |
| Bleach | |
| Liquid soap | |
| Petrol | |
| Weight | 0.014000 |
|---|---|
| Brand | Schneider Electric |
| Model | MGU3.226.18 |
| Color | White |
| Depth [cm] | 3.4 |
| Width [cm] | 4.5 |
| Height [cm] | 4.5 |
| Range | Unica |
| Type | Switch |
| Number of Modules | 2 modules |
| Device Application | Control |
| Fixing Mode | Clip-in |
| [In] Rated Current | 10A |
| IP Degree of Protection | IP20 |
| IK Degree of Protection | IK01 |
