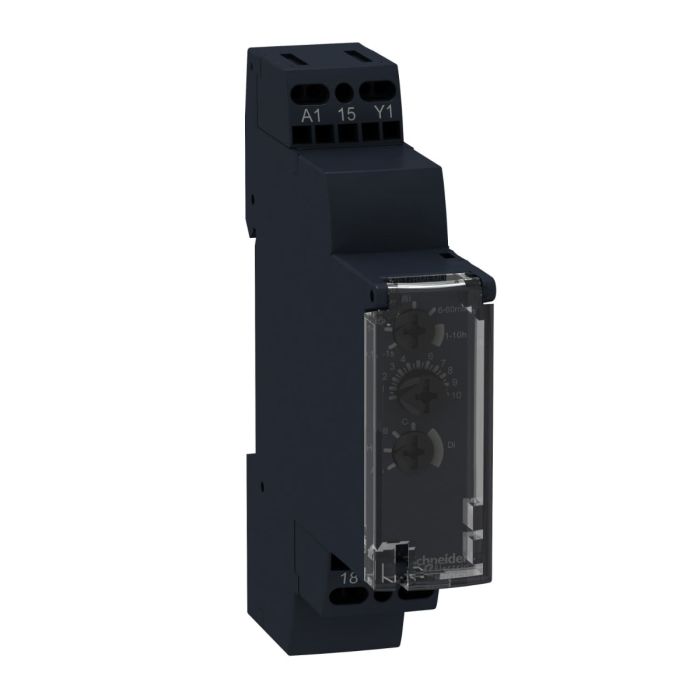

Schneider Electric Time Delay Relay 8 Function, 1 s..100 h - 24..240 V AC/DC - 1 OC
Out of stock
SKU
RE17RMEMU
Special Price EGP 1,857 Regular Price EGP 3,201
Quick Overview
Range product: Harmony Timer Relays
Product type: Modular Timing Relay
Control type: Without test button
Number of functions: 8
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours,has an output rating of 8A,is 17.5mm wide and can be supplied with 24V DC,24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors,allowing for a flexible and easy installation on DIN rail,using the same space as any modular 1-pole DIN device. It also offers a sealable cover,simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics,ideal for refurbishment of old installations without using a PLC. 0 0
| Main | |
| Range of product | Harmony Timer Relays |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Width | 17.5 mm |
| Device short name | RE17R |
| Time delay type | Power on-delay |
| Interval | |
| Off-delay | |
| Symmetrical flashing | |
| Time delay range | 6...60 min |
| 1...10 min | |
| 1...10 s | |
| 1...10 h | |
| 6...60 s | |
| 0.1...1 s | |
| nominal output current | 8:00 AM |
| Complementary | |
| Contacts type and composition | 1 C/O |
| Contacts material | Cadmium free |
| Height | 90 mm |
| Depth | 72 mm |
| Control type | Selector switch front panel |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz |
| 24 V DC | |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| release of input voltage | 10 V |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end |
| Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end | |
| Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end | |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Time delay type | Power on-delay - A- Power on-delay relay |
| Power on-delay - At- Power on-delay relay w/ pause/summation (Y1) | |
| Interval - B- Single interval relay w/ control signal | |
| Off-delay - C- Off-delay relay w/ control signal | |
| Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off) | |
| Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on) | |
| Interval - H- Interval relay | |
| control signal pulse width | 100 ms with load in parallel typical |
| 30 ms typical | |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Reset time | 120 ms on de-energisation typical |
| On-load factor | 100% |
| Power consumption in VA | 0…32 VA at 240 V AC |
| Maximum power consumption in W | 0.6 W at 24 V DC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC/DC |
| Maximum switching voltage | 250 V AC |
| breaking capacity | 2000 VA |
| operating frequency | 10 Hz |
| Electrical durability | 100000 cycles (8 A at 250 V AC maximum) for resistive load |
| Mechanical durability | 10000000 cycles |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
| [Uimp] rated impulse withstand voltage | 5 kV during 1.2/50 µs |
| power on delay | 100 ms |
| Marking | CE |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Safety reliability data | MTTFd = 296.8 years |
| B10d = 270000 | |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Local signalling | LED indicator for on steady: relay energised, no timing in progress |
| LED indicator for flashing: timing in progress 80 % ON and 20 % OFF | |
| LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF | |
| Function available | A- Power on-delay relay-1 C/O |
| At- Power on-delay relay w/ pause/summation (Y1)-1 C/O | |
| B- Single interval relay w/ control signal-1 C/O | |
| C- Off-delay relay w/ control signal-1 C/O | |
| D- Symmetrical flashing relay (starting pulse-off)-1 C/O | |
| Di- Symmetrical flashing relay (starting pulse-on)-1 C/O | |
| H- Interval relay-1 C/O | |
| Net weight | 0.07 kg |
| Control type | Without test button |
| Number of functions | 8 |
| Time delay type | A, At, B, C, D, Di, H, Ht |
| Functionality | Multifunction |
| Compatibility code | RE17 |
| Environment | |
| Immunity to microbreaks | 20 ms |
| Standards | 2004/108/EC |
| IEC 61000-6-2 | |
| IEC 61000-6-3 | |
| IEC 61000-6-1 | |
| 2006/95/EC | |
| IEC 61812-1 | |
| IEC 61000-6-4 | |
| Product certifications | CSA |
| cULus | |
| Ambient air temperature for storage | -30…60 °C |
| Ambient air temperature for operation | -20…60 °C |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 |
| IP40 (housing) conforming to IEC 60529 | |
| IP50 (front panel) conforming to IEC 60529 | |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 93 % without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility | Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2 |
| Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2 | |
| Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3 | |
| Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4 | |
| Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4 | |
| 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5 | |
| 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5 | |
| Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6 | |
| Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11 | |
| Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11 | |
| Conducted and radiated emissions: , class B, conforming to EN 55022 | |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | RE17RMEMU |
| Color | Black |
| Range | Zelio Timers |
| Family | IDSIG |
