Schneider Electric, TeSys K - differential thermal overload relays - 5.5...8 A - class 10A
Range: TeSys
Product type: Differential thermal overload relay
Relay application: Motor protection
Network type: DC, AC

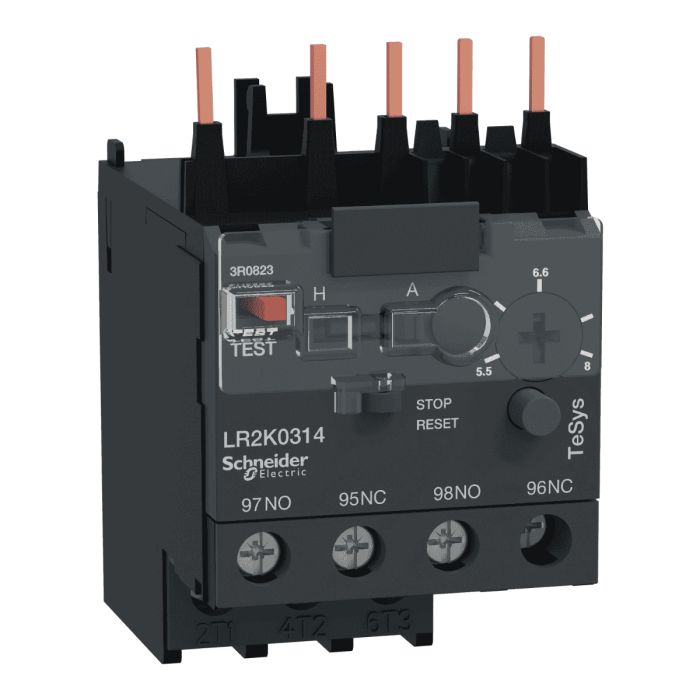

TeSys LRK thermal overload relay,8A/690V,thermal setting range 5.5-8A,tripping class 10A,for protection of 3-phase motors 3kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial,a manual-automatic reset selector,a test slide switch for simulation of a tripping,reset/stop button,a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals,it connects directly to the bottom terminals of 3-pole contactors LC1K09-K16. Mounting on DIN rail,separated from the contactor,with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC,UL,CSA,CCC,EAC),Green Premium compliant (RoHs/Reach).
Specifications:
| Main | |
| Range | TeSys |
| product name | TeSys LRK |
| Product or component type | Differential thermal overload relay |
| Device short name | LR2K |
| Relay application | Motor protection |
| Product compatibility | LC7K |
| LC1K | |
| LP4K | |
| LP1K | |
| Network type | DC |
| AC | |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 5.5…8 A |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to BS 4941 |
| Power circuit: 690 V conforming to IEC 60947 | |
| Power circuit: 750 V conforming to VDE 0110 group C | |
| Power circuit: 600 V conforming to CSA C22.2 No 14 | |
| Complementary | |
| Network frequency | <= 400 Hz |
| Mounting support | Under contactor |
| Plate, with specific accessories | |
| Rail, with specific accessories | |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 6 A for signalling circuit |
| [Ue] rated operational voltage | <= 690 V for power circuit |
| 690 V AC AC-15 for signalling circuit | |
| 250 V DC DC-13 for signalling circuit | |
| Associated fuse rating | 6 A gG for signalling circuit conforming to VDE 0660 |
| 6 A gG for signalling circuit conforming to IEC 60947 | |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Power dissipation per pole | 2 W |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Local signalling | Trip indicator (yellow) |
| Control type | Red push-button: trip test function |
| Blue push-button: stop and manual reset | |
| selector switch: manual or automatic reset | |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid |
| Screw clamp terminals 2 cable(s) 1.5…4 mm²solid | |
| Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end | |
| Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end | |
| Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end | |
| Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end | |
| Tightening torque | 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | |
| 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | |
| Height | 58 mm |
| Width | 45 mm |
| Depth | 65 mm |
| Net weight | 0.145 kg |
| Environment | |
| Standards | VDE 0660 |
| NF C 63-650 | |
| IEC 60947 | |
| BS 4941 | |
| Product certifications | UL |
| CSA | |
| UKCA | |
| Protective treatment | TC conforming to IEC 60068 |
| TC conforming to DIN 50016 | |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -20…55 °C without derating conforming to IEC 60947 |
| -30…60 °C with derating conforming to IEC 60947 | |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Requirement 2 conforming to NF F 16-101 | |
| Requirement 2 conforming to NF F 16-102 | |
| Mechanical robustness | Shocks NO contact: 10 Gn for 11 ms conforming to IEC 60068-2-27 |
| Shocks NC contact: 10 Gn for 11 ms conforming to IEC 60068-2-27 | |
| Vibrations NO contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 | |
| Vibrations NC contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LR2K0314 |
| Color | Black |
| Range | Tesys K |
| Family | PPCTR |
| IP Degree of Protection | IP2X |
