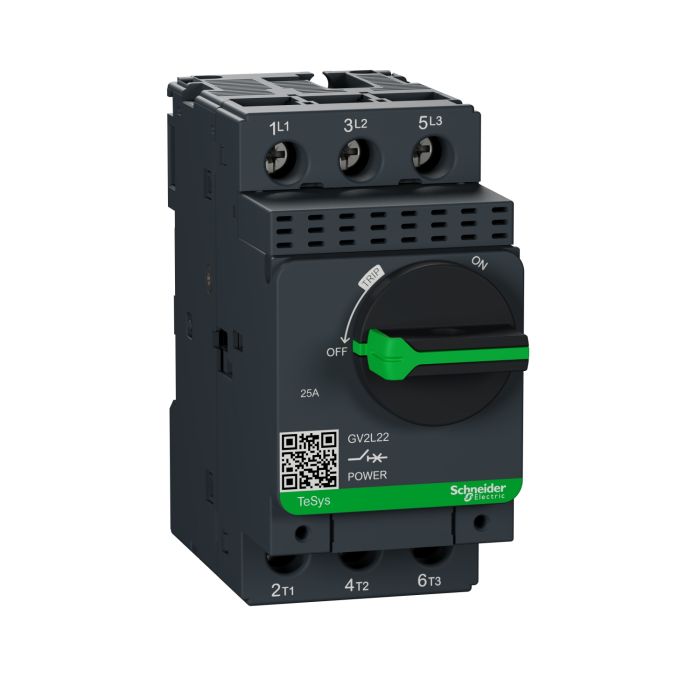

Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 25A, Magnetic, Rotary Handle, Screw Clamp Terminals
Range of product: TeSys Deca
Product type: Motor circuit breaker
Poles 3P
Device application: Motor protection
The GV2L22 TeSys GV2 Motor Circuit Breaker is an essential component for motor protection and control in industrial applications. Featuring three poles and a current rating of 25A, this circuit breaker provides reliable protection for motors in various applications. It includes a magnetic tripping unit for precise and effective protection and is equipped with screw clamp terminals for secure electrical connections.
Key Features:
Motor Protection: Designed to safeguard motors from overloads and short-circuit electrical disruptions, ensuring the longevity and reliability of your electrical systems.
Three Poles: With three poles, this circuit breaker offers enhanced protection for a range of applications.
Current Rating: With a capacity of 25A, this breaker is suitable for various motor applications.
Magnetic Tripping: Features a magnetic tripping unit for accurate and efficient protection against overloads and short circuits.
Rotary Handle Control: Comes with a rotary handle for convenient manual operation.
Screw Clamp Terminals: Ensure secure and reliable electrical connections, reducing the need for frequent maintenance.
| Specifications | |
Main | |
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| TeSys Deca | |
| Product or component type | Motor circuit breaker |
| device short name | GV2L |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with 2 x M4 screws) | |
| Motor power kW | 9 kW at 400/415 V AC 50/60 Hz |
| 11 kW at 400/415 V AC 50/60 Hz | |
| 11 kW at 500 V AC 50/60 Hz | |
| 15 kW at 500 V AC 50/60 Hz | |
| 18.5 kW at 690 V AC 50/60 Hz | |
| Breaking capacity | 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Rotary handle |
| [In] rated current | 25 A |
| Magnetic tripping current | 327 A |
| [Ith] conventional free air thermal current | 25 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 1.8 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 97 mm |
| Net weight | 0.33 kg |
Product Type: Motor Circuit Breaker
Poles: 3P (Three Poles)
Current Rating: 25A
Tripping Unit: Magnetic
Terminals: Screw Clamp
| Weight | 0.330000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV2L22 |
| Width [cm] | 4.5 |
| Height [cm] | 8.9 |
| Range | TeSys |
| Family | PPCTR |
