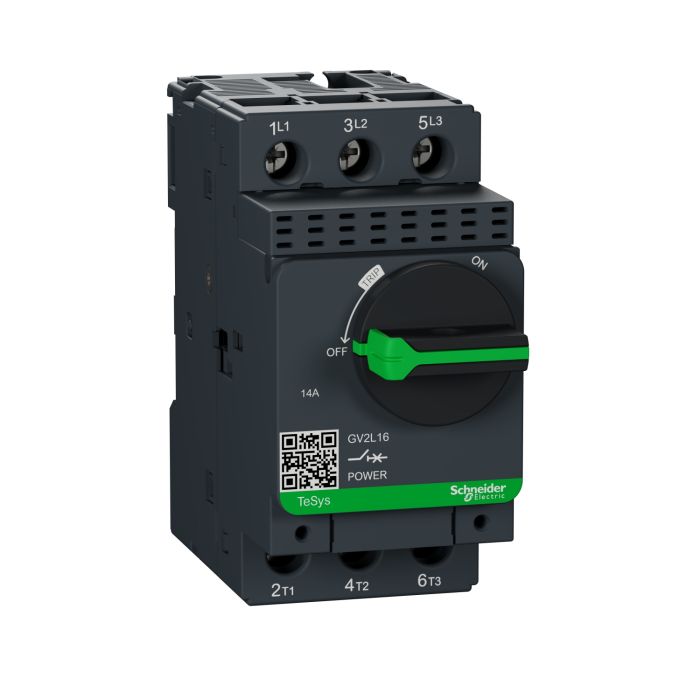

Schneider Electric TeSys GV2 Motor Circuit Breaker, 3P, 14A, Magnetic, Rotary Handle, Screw Clamp Terminals
Range of product: TeSys Deca
Product type: Motor circuit breaker
Poles: 3P
Device application: Motor protection
The GV2L16 TeSys GV2 Motor Circuit Breaker is a crucial component for motor protection and control in industrial applications. With three poles and a current rating of 14A, this circuit breaker offers versatile motor protection for a wide range of applications. It features a magnetic trip unit and a rotary handle for convenient manual operation. The secure screw clamp terminals ensure dependable electrical connections.
Key Features:
Motor Protection: Designed to safeguard motors against overloads and short circuits, the TeSys GV2 Motor Circuit Breaker ensures the longevity and reliability of your electrical systems.
Three Poles: Equipped with three poles, this circuit breaker provides enhanced protection for various motor sizes, making it suitable for diverse industrial applications.
Magnetic Trip Unit: The magnetic trip unit allows for efficient and reliable operation, disconnecting the motor in the presence of overloads and short circuits.
Rotary Handle: The rotary handle provides a convenient manual operation for the circuit breaker.
Screw Clamp Terminals: Secure screw clamp terminals guarantee dependable electrical connections, reducing the need for frequent maintenance.
Technical Specifications:
Product Type: Motor Circuit Breaker
Poles: 3P (Three Poles)
Current Rating: 14A
Trip Unit: Magnetic
Terminals: Screw Clamp Terminals
| Specifications | |
Main | |
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| TeSys Deca | |
| Product or component type | Motor circuit breaker |
| device short name | GV2L |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with 2 x M4 screws) | |
| Motor power kW | 5.5 kW at 400/415 V AC 50/60 Hz |
| 7.5 kW at 500 V AC 50/60 Hz | |
| 9 kW at 690 V AC 50/60 Hz | |
| 11 kW at 690 V AC 50/60 Hz | |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Rotary handle |
| [In] rated current | 14 A |
| Magnetic tripping current | 170 A |
| [Ith] conventional free air thermal current | 14 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 1.8 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 97 mm |
| Net weight | 0.33 kg |
| Colour | Dark grey |
| Weight | 0.330000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV2L16 |
| Width [cm] | 4.5 |
| Height [cm] | 8.9 |
| Range | TeSys |
| Family | PPCTR |
