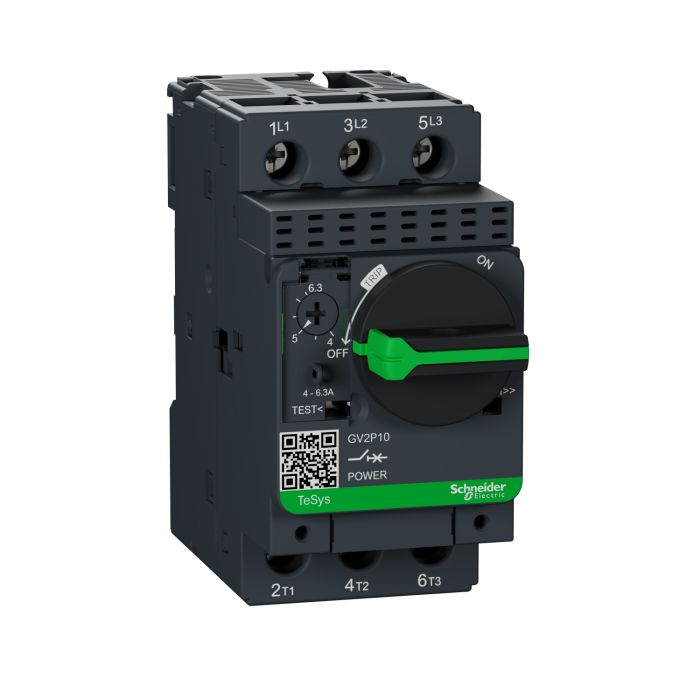

Schneider Electric TeSys GV2 Motor Circuit Breaker, 3 Poles, 4-6.3 Amps, Thermal Magnetic, Screw Clamp Terminals
Range of product: TeSys Deca
Product type: Motor circuit breaker
Poles: 3P
Device application: Motor protection
The TeSys GV2 GV2P10 Motor Circuit Breaker is a versatile and reliable component for motor protection and control in industrial applications. With three poles and a current rating of 4-6.3 amps, this circuit breaker is designed to safeguard motors from overload and short-circuit conditions. It utilizes screw clamp terminals for secure and efficient electrical connections.
Key Features:
Motor Protection: This circuit breaker offers dependable protection against motor overloads and short circuits, enhancing the longevity and safety of your motors.
Three Poles: With three poles, it ensures comprehensive protection for your motors in various configurations.
Adjustable Current Rating: The adjustable current rating, ranging from 4 to 6.3 amps, provides flexibility to adapt to the specific requirements of your application.
Screw Clamp Terminals: Equipped with screw clamp terminals, the circuit breaker facilitates easy and secure electrical connections.
Technical Specifications:
Product Type: Motor Circuit Breaker
Poles: 3 Poles
Current Rating: 4-6.3 Amps
Tripping Unit: Thermal Magnetic
Connection Terminals: Screw Clamp
Specifications
| Main | |
| Range | TeSys Deca |
| Product name | TeSys GV2 |
| TeSys Deca | |
| Product or component type | Motor circuit breaker |
| Device short name | GV2P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped |
| Panel: screwed (with 2 x M4 screws) | |
| Motor power kW | 2.2 kW at 400/415 V AC 50/60 Hz |
| 3 kW at 500 V AC 50/60 Hz | |
| 4 kW at 690 V AC 50/60 Hz | |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Rotary handle |
| [In] rated current | 6.3 A |
| Thermal protection adjustment range | 4…6.3 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 78 A |
| [Ith] conventional free air thermal current | 6.3 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 97 mm |
| Colour | Dark grey |
| Environment | |
| standards | EN/IEC 60947-2 |
| EN/IEC 60947-4-1 | |
| product certifications | CCC |
| UL | |
| CSA | |
| EAC | |
| ATEX | |
| LROS (Lloyds register of shipping) | |
| BV | |
| RINA | |
| DNV-GL | |
| UKCA | |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms |
| Vibrations: 5 Gn, 5...150 Hz | |
| Operating altitude | 2000 m |
| Weight | 0.324000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV2P10 |
| Width [cm] | 4.5 |
| Height [cm] | 8.9 |
| Range | TeSys |
| Family | PPCTR |
