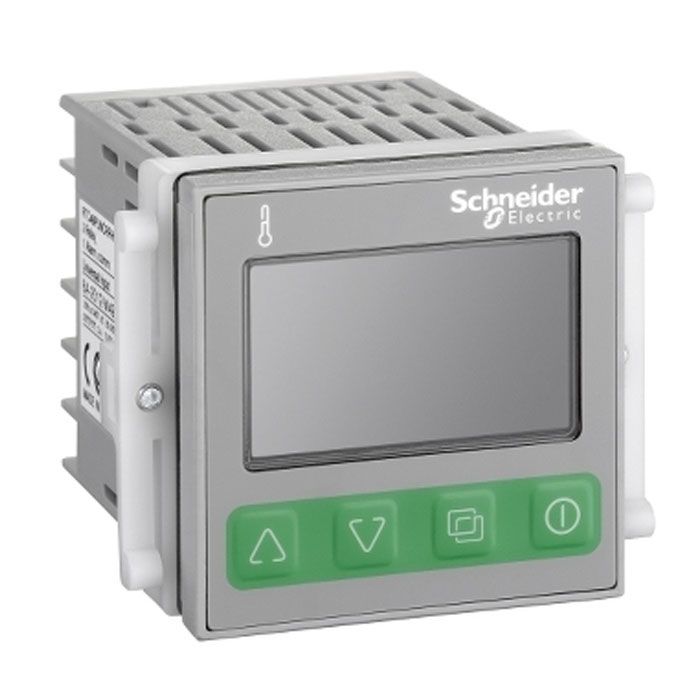

Schneider Electric Temperature Control Relay, RTC, 48x48 mm, 24V AC/DC, 1 SSR, 1 Relay Alarm
Product or component type: Modular measurement and control relays
Relay type: Temperature control relays
Product specific application: HVAC - Packaging - Heating or cooling - Industrial machines
The Schneider Electric RTC48PUN1SRLU is a temperature control relay designed for precision temperature monitoring and control applications. With a compact 48x48 mm form factor, it is suitable for panel mounting and integration into control systems. This relay operates with a 24V AC/DC power supply and features 1 solid-state relay (SSR) output along with 1 relay alarm output. It is ideal for applications where maintaining a specific temperature is critical, offering accurate and reliable temperature control.
Product Features:
Precision Temperature Control: Designed for applications requiring precise temperature monitoring and control.
Compact 48x48 mm Form Factor: Suitable for panel mounting and integration into control systems.
24V AC/DC Power Supply: Operates with a 24V AC/DC power source.
1 Solid-State Relay (SSR) Output: Provides a solid-state relay output for control.
1 Relay Alarm Output: Equipped with a relay alarm output for alerting and signaling.
Reliable and Accurate: Ensures reliable and accurate temperature control for critical applications.
The Schneider Electric RTC48PUN1SRLU temperature control relay is a dependable solution for maintaining specific temperatures in various industrial and commercial settings.
| Specifications | |
Main | |
| Range of Product | Zelio Control |
| Product or Component Type | Modular measurement and control relays |
| Relay Type | Temperature control relays |
| Product Specific Application | HVAC |
| Packaging | |
| Heating or cooling | |
| Industrial machines | |
| Relay name | RTC |
| Complementary | |
| Outer dimension | 48 x 48 mm |
| 1/16 DIN | |
| Analogue input type | Thermocouple thermocouple J, K, R, B, S, T, E, N, PLII, C(W/Re5-26)) |
| Temperature probePt 100, JPt 100) | |
| Voltage 0…1 V DC | |
| Voltage 0...5 V DC | |
| Voltage 1...5 V DC | |
| Voltage 0...10 V DC | |
| Current 0...20 mA | |
| Current 4...20 mA | |
| [Us] rated supply voltage | 24 V AC/DC |
| [Us] rated supply voltage | 24 V AC/DC |
| Supply voltage limits | 20…28 V |
| Measurement accuracy | 0.2 % full scale |
| Sampling duration | 250 ms |
| Number of outputs | 1 relay NO output 2 |
| 1 solid state output 1 | |
| Output type | Relay 250 V AC / 3 A on resistive load |
| Relay 250 V AC / 1 A on inductive load | |
| Solid state 12 V DC / 40 mA | |
| Alarm output | 1 C/O |
| Power consumption in VA | 8 VA 250 V AC |
| Function Available | PID |
| Auto tuning | |
| Marking | CE |
| Operating position | Any position |
| Display Type | 11 segments LCD |
| Display digits | ٥ |
| Signalling function | Process value green, orange and red |
| Output status (OUT1, OUT2) Orange | |
| Alarm status (EV1, EV2) Orange | |
| Transmission/reception activity (TX/TR) Orange | |
| Setpoint value Green | |
| Mounting Support | Panel |
| Net Weight | 4.23 oz (120 g) |
| Environment | |
| standards | EN 61010-1 |
| CSA C22.2 No 24-93 | |
| EN 61326-1 | |
| Product Certifications | cURus (873) |
| Ambient Air Temperature for Storage | -13…176 °F (-25…80 °C) |
| Ambient air temperature for operation | 32…122 °F (0…50 °C) |
| Relative Humidity | 35…85 % without condensation |
| Vibration resistance | 1 gn 10…55 Hz)IEC 60068-2-6 |
| Shock resistance | 10 gn IEC 60068-2-27 |
| IP degree of protection | IP66 IEC 60529 front face) |
| IP20 rear) | |
| NEMA degree of protection | NEMA 4X front face |
| Ordering and shipping details | |
| Category | 22380-RELAYS-MEASUREMENT (RM17-RM35) |
| Discount Schedule | CP2 |
| GTIN | 7.85902E+11 |
| Returnability | No |
| Country of origin | JP |
| Weight | 0.120000 |
|---|---|
| Brand | Schneider Electric |
| Model | RTC48PUN1SRLU |
