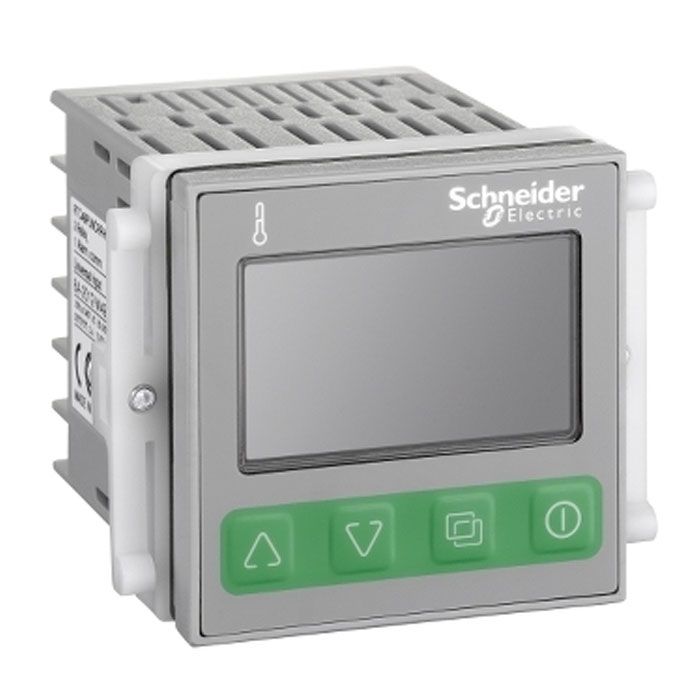

Schneider Electric Temperature Control Relay, 48x48 mm, 100-240V AC, 1 SSR Alarm
Product or component type: Modular measurement and control relays
Relay type: Temperature control relays
Product specific application: Packaging - Heating or cooling - HVAC - Industrial machines
The Schneider Electric RTC48PUN1SNHU is a temperature control relay designed for a variety of industrial applications. This 48x48 mm relay is capable of accepting input voltage in the range of 100-240V AC. It features 1 SSR (Solid State Relay) alarm output for precise and reliable temperature control.
Key Features:
Temperature Control Relay: Specifically designed for temperature control applications.
Compact Size: The relay has a compact 48x48 mm form factor.
Input Voltage Range: Accepts input voltage in the range of 100-240V AC.
1 SSR Alarm Output: Equipped with 1 Solid State Relay alarm output for accurate temperature control.
Versatile Industrial Use: Suitable for various industrial settings where temperature control is crucial.
The Schneider Electric RTC48PUN1SNHU temperature control relay ensures precise temperature management in industrial processes and applications.
| Specifications | |
Main | |
| Range of product | Zelio Control |
| Product or component type | Modular measurement and control relays |
| Relay type | Temperature control relays |
| Product specific application | Packaging |
| Heating or cooling | |
| HVAC | |
| Industrial machines | |
| Relay name | RTC |
| Complementary | |
| Outer dimension | 48 x 48 mm |
| 1/16 DIN | |
| Analogue input type | Thermocouple thermocouple J, K, R, B, S, T, E, N, PLII, C(W/Re5-26)) |
| Temperature probePt 100, JPt 100) | |
| Voltage 0…1 V DC | |
| Voltage 0...5 V DC | |
| Voltage 1...5 V DC | |
| Voltage 0...10 V DC | |
| Current 0...20 mA | |
| Current 4...20 mA | |
| [Us] rated supply voltage | 100...240 V AC |
| [Us] rated supply voltage | 100...240 V AC |
| Supply voltage limits | 85…264 V |
| Measurement accuracy | 0.2 % full scale |
| Sampling duration | 250 ms |
| Number of outputs | 1 solid state output 1 |
| Output type | Solid state 12 V DC / 40 mA |
| Alarm output | 1 C/O |
| Power consumption in VA | 8 VA 250 V AC |
| Function available | Auto tuning |
| PID | |
| Marking | CE |
| Operating position | Any position |
| Display type | 11 segments LCD |
| Display digits | 5 |
| Signalling function | Process value green, orange and red |
| Output status (OUT1, OUT2) orange | |
| Alarm status (EV1, EV2) orange | |
| Transmission/reception activity (TX/TR) orange | |
| Setpoint value green | |
| mounting support | Panel |
| Net weight | 4.23 oz (120 g) |
| Environment | |
| standards | EN 61010-1 |
| CSA C22.2 No 24-93 | |
| EN 61326-1 | |
| product certifications | cURus (873) |
| Ambient air temperature for storage | -13…176 °F (-25…80 °C) |
| Ambient air temperature for operation | 32…122 °F (0…50 °C) |
| Relative humidity | 35…85 % without condensation |
| Vibration resistance | 1 gn 10…55 Hz)IEC 60068-2-6 |
| Shock resistance | 10 gn IEC 60068-2-27 |
| IP degree of protection | IP66 IEC 60529 front face) |
| IP20 rear) | |
| NEMA degree of protection | NEMA 4X front face |
| Weight | 0.120000 |
|---|---|
| Brand | Schneider Electric |
| Model | RTC48PUN1SNHU |
