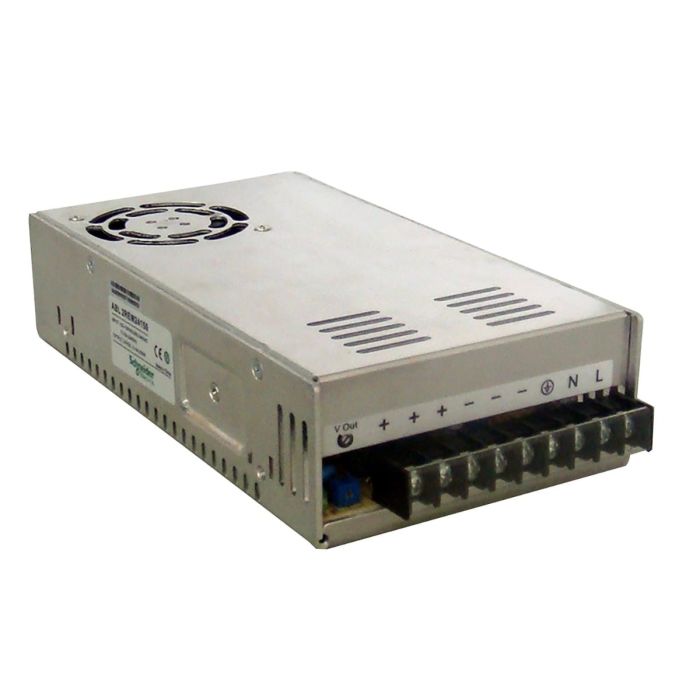

Schneider Electric Switching Mode Power Supply, Input 100-120/200-240V AC, Output 24V DC, 350W, 14.6A
Range: Easy Modicon ABL2
Product type: Power supply
Output voltage: 24 V DC
Network frequency: 47...63 Hz
This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 350W, with a 100V to 240V AC output voltage, and 351W nominal power. Its output current is 14.6A. It offers better performance with cost effective. Its cooling is based on forced air, with an integrated DC fan. It has a manual voltage switching. It measures 215mm wide x 115mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost effective. Smart design.
Main | |
| Range of product | Easy Modicon ABL2 |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Rated power in W | 350 W |
| Main Input Voltage | 100...120 V AC single phase |
| 200...240 V | |
| Output voltage | 24 V DC |
| Power supply output current | 14.6 A |
| Operating position | Any position |
| Vibration resistance | 2 gn (f= 10…500 Hz) conforming to EN/IEC 61131-2 |
| Name of test | Conducted interference conforming to EN 61000-6-4 level A |
| Complementary | |
| Input voltage limits | 85...264 V |
| 180...264 V | |
| Network frequency | 47...63 Hz |
| Inrush current | 60 A at 100...120 V AC |
| 60 A at 200...240 V AC | |
| Cos phi | 0.5 |
| Efficiency | 83% |
| Power dissipation in W | 47.7 W |
| Current consumption | 3.3 A at 240 V |
| Input protection type | Integrated fuse (not interchangeable) |
| Output voltage limits | 21.6...26.4 V |
| Line and load regulation | +/- 1 % |
| Holding time | >= 12 ms at 115 V |
| Output protection type | Against overload, protection technology: 1.1...1.5 x In |
| Against short-circuits, protection technology: 1.1...1.5 x In | |
| Against overvoltage, protection technology: 1.1...1.5 x In | |
| Thermal, protection technology: 1.1...1.5 x In | |
| Connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 |
| Marking | CE |
| Mounting support | DIN rail with accessory |
| Panel mounting with accessory | |
| Operating altitude | 2000 m |
| Output coupling | Series |
| Overvoltage category | II |
| Meantime between failure [MTBF] | 350000 h at 25 °C |
| Status LED | 1 LED (green) output voltage |
| Width | 115 mm |
| Height | 215 mm |
| Depth | 50 mm |
| Net weight | 0.97 kg |
| Environment | |
| Product certifications | EAC |
| IC | |
| Environmental characteristic | EMC conforming to EN 55022 class B |
| IP degree of protection | IP20 conforming to EN/IEC 60950 |
| Ambient air temperature for operation | -20…70 °C (with rated power derating 5 W per °C) |
| Ambient air temperature for storage | -20…85 °C |
| Relative humidity | 20…90 % |
| Overvoltage category | Class I conforming to VDE 0106-1 |
| pollution degree | 2 |
| Dielectric strength | 2000 V between input and ground |
| Weight | 0.970000 |
|---|---|
| Brand | Schneider Electric |
| Model | ABL2REM24150H |
| Depth [cm] | 5 |
| Width [cm] | 11.5 |
| Height [cm] | 23.5 |
| Type | Switch |
| IP Degree of Protection | IP20 |
