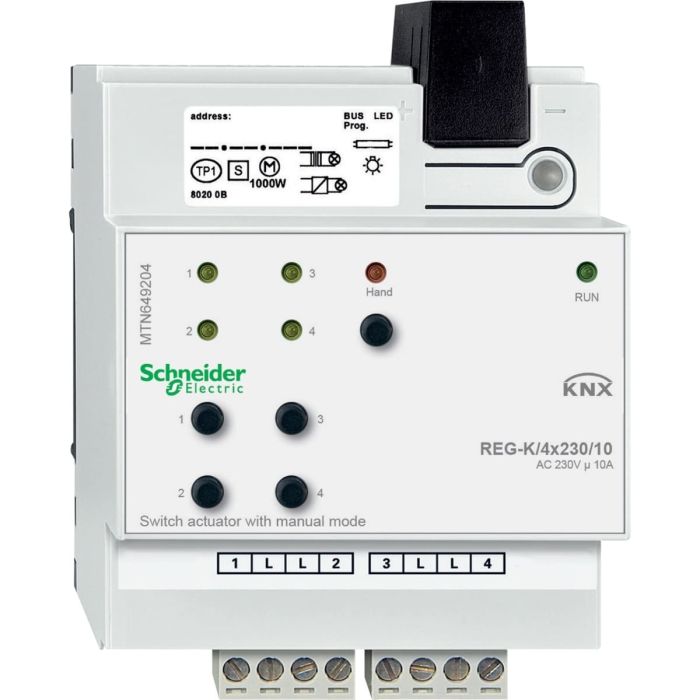

Schneider Electric Switch actuator REG-K/4x230/10 with manual mode, light grey

Switch actuator REG-K/4x230/10 with manual mode. For independent switching of up to 4 loads via make contacts. The function of the switching channels is freely configurable. All switching outlets can be operated manually using push-button operation. Channel status display via LEDs. A green LED indicates readiness for operation. With integrated bus coupler. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions: Operation as break contact/make contact. Programmable behaviour for download. Delay functions for each channel. Staircase lighting function with/without manual OFF function. Cut-out warning for staircase lighting function. Scenes. Central function. Disable function. Logic operation or priority control. Status feedback function for each channel. Power supply: Nominal voltage: AC 230 V, 50 - 60 Hz. External auxiliary voltage (optional): AC 110 - 240 V, 50 - 60 Hz, max. 2 VA. For each switch output: Nominal current: 10 A, cos Phi 1. 10 A, cos Phi 0.6. Incandescent lamps: AC 230 V, max. 2000 W. Halogen lamps: AC 230 V, max. 1700 W. Fluorescent lamps: AC 230 V, max. 1800 W, uncompensated. AC 230 V, max. 1000 W parallel-compensated. Capacitive load: AC 230 V, max. 105 µF. Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.

Specifications:
