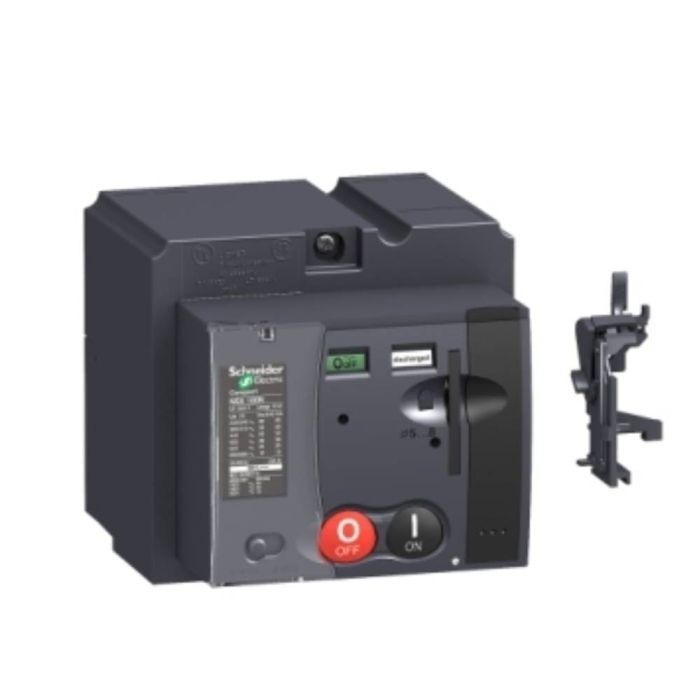

Schneider Electric Standard motor mechanism module MT100/160,ComPact NSX100/160,220/240 VAC 50/60 Hz,208/277 VAC 60 Hz
Out of stock
SKU
LV429434
Special Price EGP 37,612 Regular Price EGP 56,989
Quick Overview
Product type: Motor mechanism
Device application: Automatic spring charging
Control type: Standard
This is a standard motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz or 208VAC to 277VAC 60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Specifications:
| Main | |
| Device short name | MT250 |
| Product or component type | Motor mechanism |
| Device application | Automatic spring charging |
| Range compatibility | ComPacT NSX100 |
| ComPacT NSX160 | |
| ComPacT NSX100 DC | |
| ComPacT NSX160 DC | |
| control type | Standard |
| [Uc] control circuit voltage | 208...277 V AC 60 Hz |
| 220...240 V AC 50/60 Hz | |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current | 160 A |
| 100 A | |
| Complementary | |
| Control signal type | Impulse |
| Maintained | |
| circuit breaker response time | < 700 ms open |
| < 80 ms closed | |
| Maximum operating frequency | 4 per minute |
| Maximum power consumption in VA | 500 VA closing |
| 500 VA opening | |
| Provided equipment | SDE adaptor |
| Locking options description | Padlocking in OFF position |
| 1 to 3 padlocks Ø 5 to Ø 8 |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LV429434 |
| Device Application | Automatic Spring Charging |
| Range | NSXAccessories |
| Family | PPCCB |
| Type | Motor mechanism |
| Compatible With | ComPacT new generation ComPacT NSX100 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPact ComPacT NSX DC new generation NSX100 DC, ComPact ComPacT NSX DC new generation NSX160 DC |
| [In] Rated Current | 160 A 100 A |
