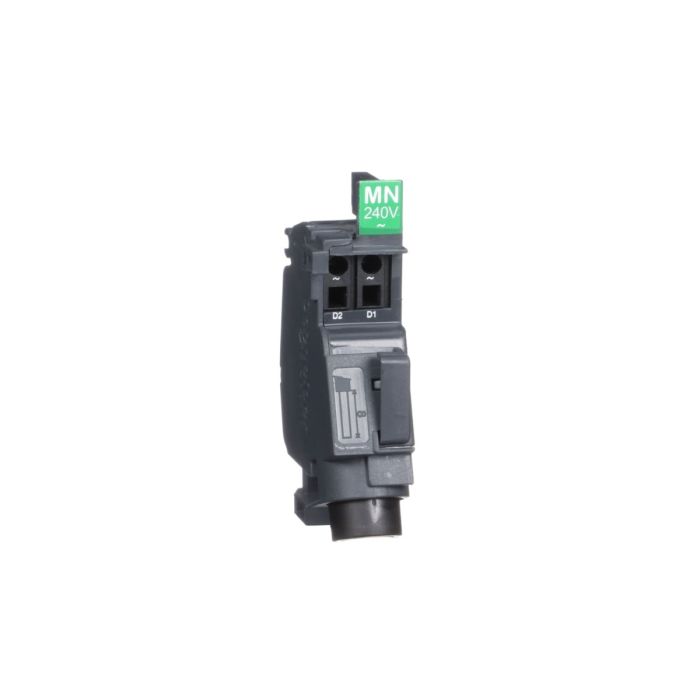

Schneider Electric Standard Mn Undervoltage Release, Compact NSXm, Rated Voltage 220/240 Vac 50 Hz, 208/240 Vac 60Hz
In stock
SKU
LV426804
Special Price EGP 8,404 Regular Price EGP 12,734
Schneider Electric Standard Mn Undervoltage Release, Compact NSXm, Rated Voltage 220/240 Vac 50 Hz, 208/240 Vac 60Hz is available to buy in increments of 1
Quick Overview
Range: ComPact
Product type: Voltage release
Device application: Control
Control type: Standard
This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation,visible from the front face of the device. This MN auxiliary has a 220/240 VAC 50Hz or 208/240 VAC 60Hz rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Specifications:
Main | ||
| Range | ComPact | |
| Range of product | ComPacT NSXm | |
| Device short name | MN | |
| Product or component type | Voltage release | |
| Device application | Control | |
| Voltage release type | Opening coil | |
| Undervoltage release | ||
| control type | Standard | |
| [Uc] control circuit voltage | 220...240 V AC 50 Hz | |
| 208...240 V AC 60 Hz | ||
| Range compatibility | ComPact ComPacT NSXm | |
| ComPact ComPact NSXm | ||
| PowerPact PowerPact B | ||
| Complementary | ||
| Operating threshold | 0.35...0.7 x Un opening | |
| 0.85 x Un closing | ||
| Response time | < 50 ms | |
| Auxiliary connection terminal | Spring |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | LV426804 |
| Device Application | Control |
| Range | NSXm |
| Family | PPCCB |
| Type | Voltage Release |
