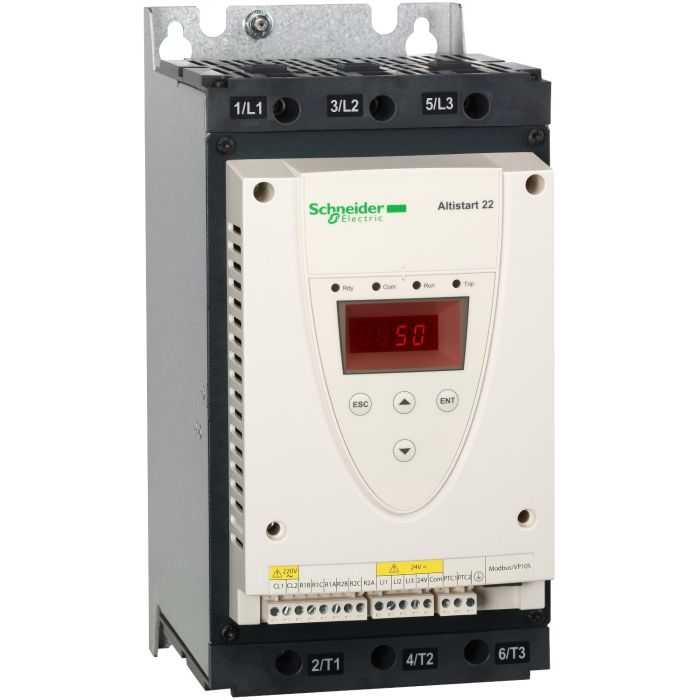

Schneider Electric Soft Starter, 220V Control, 230-18.5 kW Power, 400-440V, 37 kW
Range of product: Altistart 22
Product type: Soft starter
Product specific application: Pumps and fans
Network number of phases: 3 phases
The ATS22D75Q Soft Starter is an advanced control device designed to smoothly start electric motors and reduce excessive starting currents.
It is typically used in industrial applications to provide motor protection and enhance system efficiency.
Key Features:
Precise Control: The soft starter allows for precise control of motor starting and speed.
Advanced Protection: It offers protection against increased currents and overloads, helping to maintain motor safety.
Energy Savings: It reduces excessive starting current and assists in lowering energy consumption.
Durability and Efficiency: It is characterized by its durable design and efficient performance.
Technical Specifications:
Product Type: Soft Starter
Control Voltage: 220V
Power Rating: 230-18.5 kW
Power Supply: 400-440V - 37 kW
Specifications
| Main | |
| Range of product | Altistart 22 |
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Pumps and fans |
| component name | ATS22 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 230...440 V - 15...10 % |
| Motor power kW | 37 kW 400 V |
| 37 kW 440 V | |
| 18.5 kW 230 V | |
| Factory setting current | 69 A |
| Power dissipation in W | 63 W for standard applications |
| utilisation category | AC-53A |
| Type of start | Start with torque control (current limited to 3.5 In) |
| IcL starter rating | 75 A for connection in the motor supply line for standard applications |
| IP degree of protection | IP20 |
| Complementary | |
| Assembly style | With heat sink |
| Function available | Internal bypass |
| Supply voltage limits | 195…484 V |
| Supply frequency | 50...60 Hz - 10...10 % |
| Network frequency | 45...66 Hz |
| device connection | In the motor supply line |
| To the motor delta terminals | |
| [Uc] control circuit voltage | 230 V - 15...10 % 50/60 Hz |
| Control circuit consumption | 20 W |
| Discrete output number | 2 |
| Discrete output type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O | |
| Minimum switching current | 100 mA at 12 V DC (relay outputs) |
| Maximum switching current | 5 A 250 V AC resistive 1 relay outputs |
| 5 A 30 V DC resistive 1 relay outputs | |
| 2 A 250 V AC inductive 0.4 20 ms relay outputs | |
| 2 A 30 V DC inductive 7 ms relay outputs | |
| Discrete input number | 3 |
| Discrete input type | (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm |
| Discrete input voltage | 24 V <= 30 V |
| Discrete input logic | Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| Output current | 0.4...1 Icl adjustable |
| PTC probe input | 750 Ohm |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Communication data link | Serial |
| Physical interface | RS485 multidrop |
| Transmission rate | 4800, 9600 or 19200 bps |
| Installed device | 31 |
| Protection type | Phase failure: line |
| Thermal protection: motor | |
| Thermal protection: starter | |
| Marking | CE |
| Type of cooling | Forced convection |
| Operating position | Vertical +/- 10 degree |
| height | 295 mm |
| Width | 145 mm |
| Depth | 207 mm |
| Net weight | 12 kg |
| Motor power range AC-3 | 15…25 kW at 200…240 V 3 phases |
| 30…50 kW at 380…440 V 3 phases | |
| Motor starter type | Soft starter |
| Environment | |
| Electromagnetic compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2 |
| Damped oscillating waves level 3 conforming to IEC 61000-4-12 | |
| Electrostatic discharge level 3 conforming to IEC 61000-4-2 | |
| Immunity to electrical transients level 4 conforming to IEC 61000-4-4 | |
| Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 | |
| Voltage/current impulse level 3 conforming to IEC 61000-4-5 | |
| standards | EN/IEC 60947-4-2 |
| product certifications | CSA |
| UL | |
| GOST | |
| CCC | |
| C-Tick | |
| Vibration resistance | 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6 |
| 1.5 mm (f= 2…13 Hz) conforming to EN/IEC 60068-2-6 | |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Noise level | 45 dB |
| Pollution degree | Level 2 conforming to IEC 60664-1 |
| Relative humidity | 0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) |
| 40…60 °C (with current derating 2.2 % per °C) | |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 1000 m without derating |
| > 1000...< 2000 m with current derating of 2.2 % per additional 100 m | |
| Weight | 12.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | ATS22D75Q |
| Width [cm] | 4.5 |
| Height [cm] | 12.4 |
| Range | ATS22 |
| Family | IDVSD |
