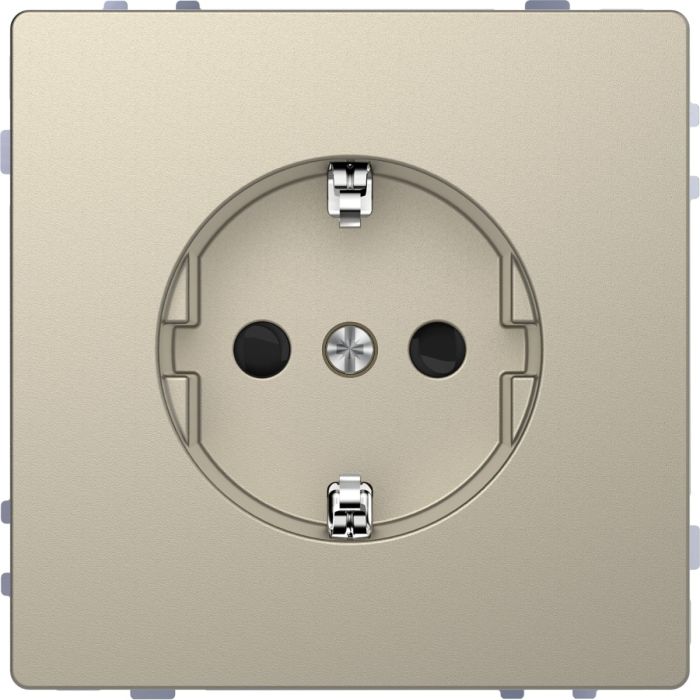

Schneider Electric Socket-outlet, Merten System Design, 2P + E, 16A, Sahara
Range: Merten
Product type: Socket-outlet
Device application: Power source
Color: Sahara
The Schneider Electric Merten System Design socket outlet MTN2300-6033 is a full Sahara-colored product with 1 group with side earthing. Its connection terminals are screwless. And this device is Schuko standard. And its rated current is 16. The appropriate mounting box can be recessed into the wall surface with a flush-mounted type. Its fixing method is with screws and nails. The socket outlet is made of PC (polycarbonate), making it as resistant as possible. This socket belongs to the System Design aesthetic group. In addition, it has perfectly complied with the DIN 49440 standard. It is 71 mm wide, 40 mm high and 71 mm long. The pole configuration of this socket outlet is 2P + E with shutters to protect children from possible electric shock. The lacquered surface treatment helps to provide a transparent and solid protection. /Text translated by machine.
| Range | Merten |
| Product name | System Design |
| Product or component type | Socket-outlet |
| Device presentation | Mechanism with mounting frame and central plate |
| Additional | |
| Device installation | Recessed |
| Capture mode | With screws and clamps |
| Device application | Power source |
| Number of sockets | 1 |
| Output pole configuration | 2P + E |
| Output standard deviation | Schuko |
| Output standard | CEE 7/3 |
| Cap type | With child protection |
| rated current | 16 A |
| [Ue] rated operating voltage | 250V |
| Network type | AC |
| Network frequency | 50/60Hz |
| Color shade | Sahara |
| Material | thermoplastic |
| surface treatment | Lacquered |
| Surface finish | Matte |
| Connectors - terminals | Screw terminals |
| IP protection level | IP20 |
| Width | 71 mm |
| Height | 71 mm |
| Depth | 40mm |
| Standards | DIN 49440 |
| Weight | 0.014000 |
|---|---|
| Brand | Schneider Electric |
| Model | MTN2300-6033 |
| Color | Sahara |
| Depth [cm] | 7.85 |
| Width [cm] | 1.8 |
| Height [cm] | 8.5 |
| Range | Merten |
| Type | Socket-Outlet |
| [In] Rated Current | 16 A |
| IP Degree of Protection | IP20 |
| IK Degree of Protection | IK02 |
