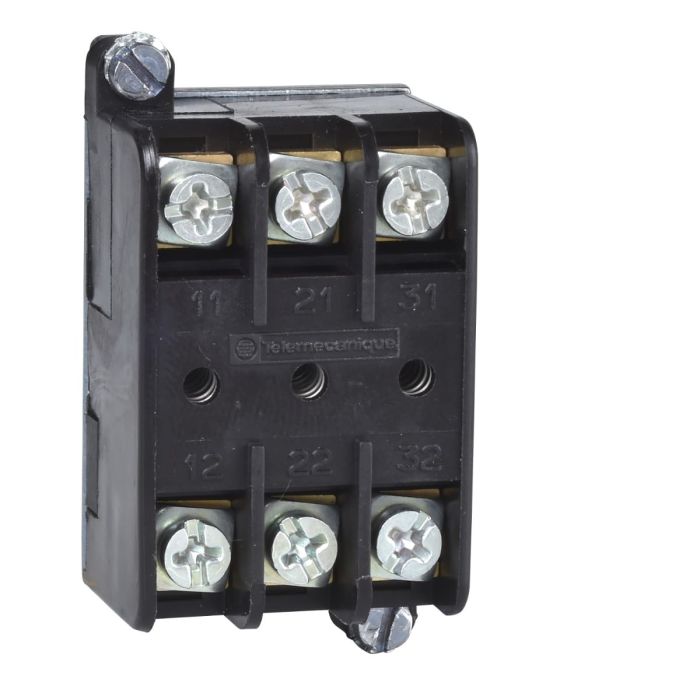

Schneider Electric Single Isolating Block XEN-T for Control Circuit
Range: Harmony XAC
Product type: Isolating switch
Electrical circuit type: Control circuit
Product compatibility: XACA
This product is part of the Harmony XAC range,an offer of pendant control stations for Ø22mm plastic signalling units. This single isolating block for control circuit. It has 3 normally closed contacts. It is an isolating block with a rated insulation voltage of 400V and a 11 enclosed thermal current of 10A. It is designed for front mounting with slow-break contact operation. It is furnished with screw clamp terminals for electrical connection. It offers mechanical durability of 1 million operating cycles. It weighs 0.05kg. It is suitable for industry and service sector,hoist and travelling cranes. It meets CSA C22.2 No 14,UL 508,EN/IEC 60947-5-1 and EN/IEC 60204-32 standards. It is compatible with the pendant control stations XACA. It is designed for mechanical handling,these highly robust pendant control stations comply with the safety requirements of IEC standards. They are not only simples and intuitive,but also very comfortable for the operator to use.
Specifications:
Main | |
| Range of product | Harmony XAC |
| Product or component type | Isolating switch |
| Component name | XENT |
| Electrical circuit type | Control circuit |
| Contact block application | Emergency stop push-button |
| Contact block type | Single |
| Product compatibility | XACA |
| Contacts type and composition | 3 NC |
| Mounting of block | Front mounting |
| Contact operation | Slow-break |
| Complementary | |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end |
| Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end | |
| Mechanical durability | 1000000 cycles |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A | |
| Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A | |
| Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A | |
| [Ithe] conventional enclosed thermal current | 10:00 AM |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 14 N |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C | |
| 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C | |
| Net weight | 0.05 kg |
| Environment | |
| Standards | CSA C22.2 No 14 |
| UL 508 | |
| IEC 60947-5-1 | |
| IEC 60204-32 | |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | XENT1192 |
| Color | Black |
| Range | PendantStations |
| Family | IDSIG |
| Type | Isolating Switch |
