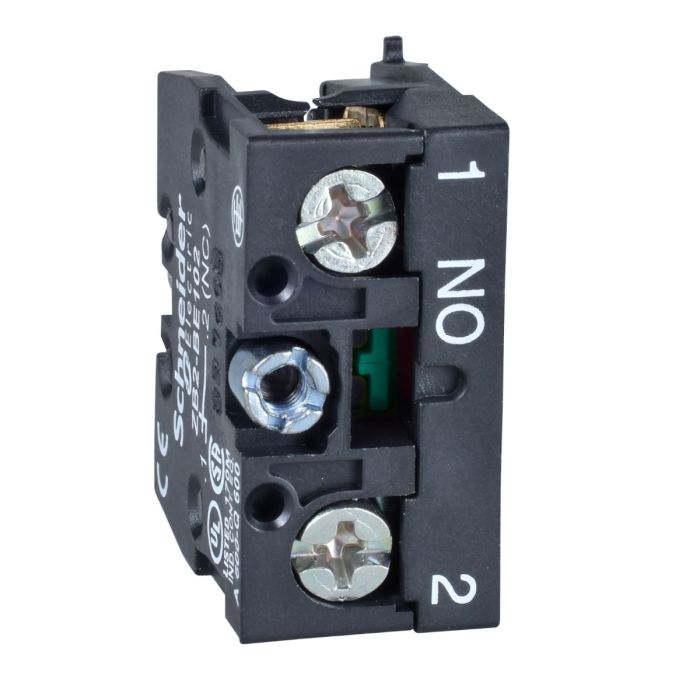

Schneider Electric Single Contact Block,1 NO
In stock
SKU
ZB2BE101
Special Price EGP 250 Regular Price EGP 431
Schneider Electric Single Contact Block,1 NO is available to buy in increments of 1
Quick Overview
Range: Harmony XAC
Product type: Contact block
Electrical circuit type: Control circuit
Type of operator: Spring return
This additionnal contact block for high power switching is a separate component of diameter 22mm XB4 or XB5 ranges It features a single NO contact block and screw connection type. It is easily fitted on the back of high power switching contacts ZBE50x.
Specifications:
| Main | |
| Range of product | Harmony XAC |
| Product or component type | Contact block |
| Component name | ZB2 |
| Electrical circuit type | Control circuit |
| Contact block application | Single speed |
| Contact block type | Single |
| Type of operator | Spring return |
| Product compatibility | XB4 |
| XAPS2 | |
| XACA | |
| XB5 | |
| Contacts type and composition | 1 NO |
| Mounting of block | Front mounting |
| Contact operation | Slow-break |
| Complementary | |
| Mechanical durability | 1000000 cycles |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A |
| A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A | |
| Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A | |
| Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A | |
| [Ithe] conventional enclosed thermal current | 10:00 AM |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 13…15 N |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG (gl) |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1 |
| 48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1 | |
| 65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1 | |
| Terminals description ISO n°1 | (13-14)NO |
| Net weight | 0.02 kg |
| Connections - terminals | Screw clamps terminals, 1 x 2.5 mm² with or without cable end |
| Screw clamps terminals, 2 x 1.5 mm² with or without cable end | |
| Environment | |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Standards | IEC 60947-5-1 |
| UL 508 | |
| IEC 60204-32 | |
| CSA C22.2 No 14 |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | ZB2BE101 |
| Range | Others-SIG |
| Family | IDSIG |
| [In] Rated Current | 10 A |
