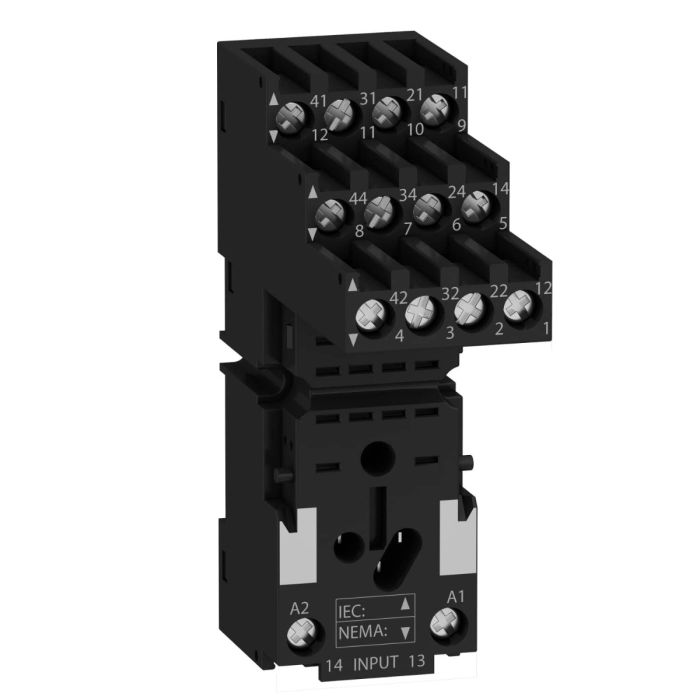

Schneider Electric Separate Contact Socket for RXM4 Relay
Range of product: Harmony Electromechanical Relays
Product type: Socket
compatibility : Plug-in relay RXG with 2 C/O contact
The Schneider Electric RXZE2S114M is a separate contact socket designed for use with RXM4 type relays. This socket is used to connect and hold the relay securely, allowing for easy wiring and maintenance of the electrical circuit. It is compatible with 10 A relays and features a screw connector. The RXZE2S114M socket is designed for use in 250 V AC applications and is an essential component for relay-based electrical systems.
Key Features:
Socket for RXM4 Relay: Designed to accommodate RXM4 type relays.
Reliable Connection: Ensures a secure and reliable connection for the relay.
Easy Wiring: Simplifies the wiring process, making installation and maintenance convenient.
Screw Connector: Features a screw-type connector for connecting wires.
Voltage Rating: Suitable for use in 250 V AC applications.
Specifications
| Main | |
| Range of product | Harmony Electromechanical Relays |
| Harmony Timer Relays | |
| Product or component type | Socket |
| contact terminal arrangement | Separate |
| Product compatibility | Plug-in relay RXM with 4 C/O contact |
| Plug-in relay REXL with 4 C/O contact | |
| Shape of pin | Flat |
| Device short name | RXZ |
| Sale per indivisible quantity | 10 |
| Complementary | |
| [Ith] conventional free air thermal current | 10:00 ص |
| [Ue] rated operational voltage | < 250 V |
| Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end |
| Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end | |
| Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end | |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) |
| Clip-on (35 mm symmetrical DIN rail) | |
| Marking | CE |
| Width | 27 mm |
| Net weight | 0.07 kg |
| Environment | |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| standards | IEC 61984 |
| product certifications | CSA |
| Lloyd's | |
| UL | |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Dielectric strength | 2500 V |
| Weight | 0.062200 |
|---|---|
| Brand | Schneider Electric |
| Model | RXZE2S114M |
| Width [cm] | 2.7 |
| Range | Zelio Relays - RXM |
| Family | IDSIG |
