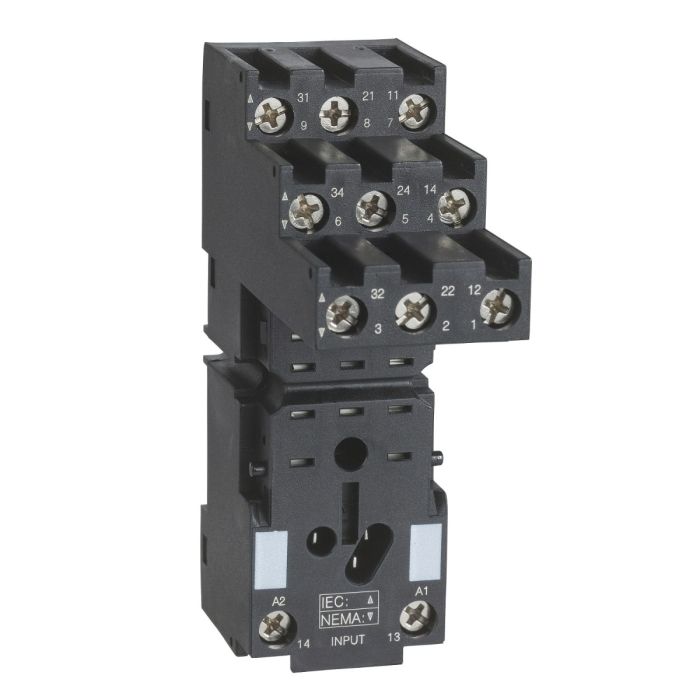

Schneider Electric Separate Contact Socket for RXM3 Relay
Range: Harmony Electromechanical Relays
Product type: Socket
Shape of pin: Flat
Compatibility: Plug-in relay RXG with 2 C/O contact
This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
Specifications:
| Main | |
| Range of product | Harmony Electromechanical Relays |
| Product compatibility | Plug-in relay RXM with 3 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10A |
| Product or component type | Socket |
| Contacts type and composition | 3 C/O |
| Complementary | |
| [Ue] rated operational voltage | < 250 V conforming to IEC |
| < 300 V conforming to UL | |
| Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end |
| Screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end | |
| Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end | |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) |
| Clip-on (35 mm symmetrical DIN rail) | |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Separate |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 27 mm |
| Net weight | 0.058 kg |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL |
| Lloyd's | |
| CSA | |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Weight | 0.065000 |
|---|---|
| Brand | Schneider Electric |
| Model | RXZE2S111M |
| Width [cm] | 2.7 |
| Range | Zelio Relays - RXM |
| Family | IDSIG |
| Type | Socket-Outlet |
| [In] Rated Current | 10 A |
| IP Degree of Protection | IP20 |
