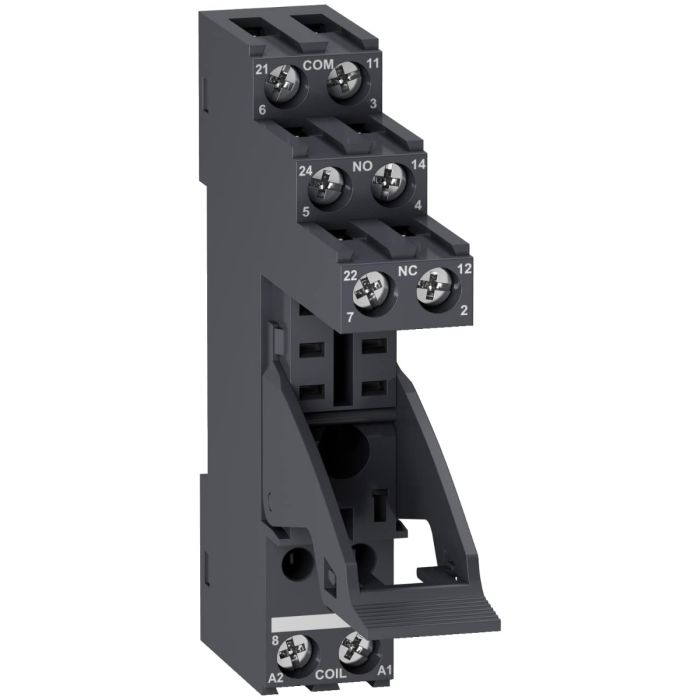

Schneider Electric Separate Contact Socket for RXG2 Relay
Range of product: Harmony Electromechanical Relays
Product type: Socket
compatibility: Plug-in relay RXG with 2 C/O contact
The Schneider Electric RGZE1S48M is a separate contact socket designed for use with RXG2 type relays. This socket is used to connect and hold the relay securely, allowing for easy wiring and maintenance of the electrical circuit. It is compatible with 5 A relays and features a screw connector. The RGZE1S48M socket is designed for use in 250 V AC applications.
Key Features:
Socket for RXG2 Relay: Designed to accommodate RXG2 type relays.
Reliable Connection: Ensures a secure and reliable connection for the relay.
Easy Wiring: Simplifies the wiring process, making installation and maintenance convenient.
Screw Connector: Features a screw-type connector for connecting wires.
Voltage Rating: Suitable for use in 250 V AC applications.
Specifications
| Main | |
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Socket |
| contact terminal arrangement | Separate |
| Complementary | |
| Product compatibility | Plug-in relay RXG with 2 C/O contact |
| [Ui] rated insulation voltage | 250 V |
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation |
| 4 kV between contacts with basic insulation | |
| 4 kV between poles with basic insulation | |
| 4 kV between terminals and DIN rail with basic insulation | |
| [In] rated current | 05:00 ص |
| [Ue] rated operational voltage | 250 V conforming to IEC |
| 300 V conforming to UL | |
| Dielectric strength | 5 kV between coil and contact with reinforced insulation |
| 2.5 kV between contacts with basic insulation | |
| 3 kV between poles with basic insulation | |
| 3 kV between terminals and DIN rail with basic insulation | |
| Connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end |
| Screw terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end | |
| Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end | |
| Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Screw type | M3 |
| Environment | |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 10…85 % |
| standards | CSA C22.2 No 14 |
| IEC 61984 | |
| UL 508 | |
| product certifications | EAC |
| CE | |
| CSA | |
| UL | |
| DNV-GL | |
| IP degree of protection | IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Weight | 0.039700 |
|---|---|
| Brand | Schneider Electric |
| Model | RGZE1S48M |
| Range | Zelio Relays - RXG |
| Family | IDSIG |
