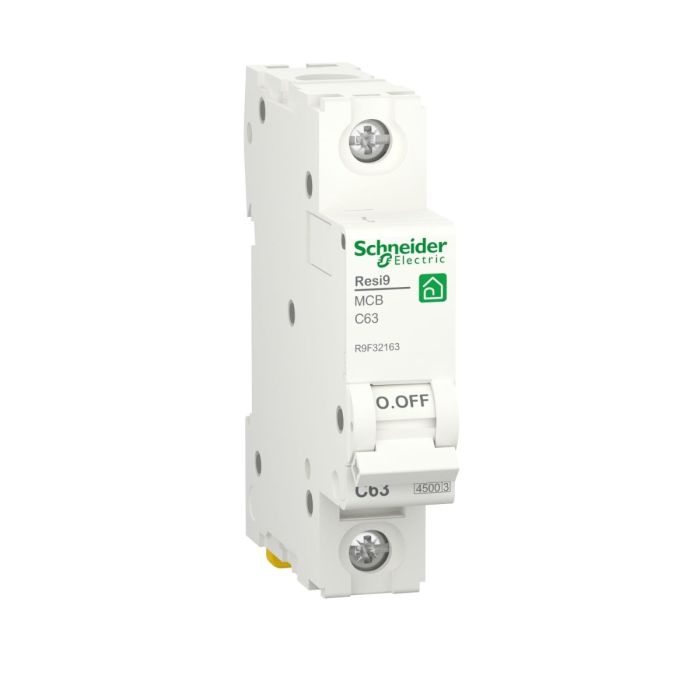

Resi9 Miniature Circuit Breaker (MCB), 1P, 63A, C curve, 4500A, Schneider Electric
Poles description: 1P
Number of protected poles: 1
[In] rated current: 63 A
Breaking capacity: 4500 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
Are you in need of a reliable circuit protection solution for your electrical systems? Look no further! The R9F32163 Miniature Circuit Breaker from Schneider Electric is designed to keep your circuits safe and your electrical installations running smoothly.
Key Features:
-
Single-Pole Design: This 1P circuit breaker offers compact and efficient protection.
-
63A Rating: With a 63A amperage rating, it's well-suited to handle various electrical loads.
-
C-Curve: Designed to provide quick trip response during short circuit situations, enhancing safety.
-
Impressive Breaking Capacity: With a 4500A IEC EN 60898-1 breaking capacity, it can effectively handle fault currents.
-
User-Friendly: Easy to install and operate, making it a great choice for various applications.
-
Durable Build: Crafted to be long-lasting, ensuring the longevity and reliability of your electrical system.
The R9F32163 Miniature Circuit Breaker is tailored to meet your circuit protection needs, providing peace of mind and uninterrupted electrical performance. Whether for residential or industrial use, its compact design and impressive specifications make it the ideal choice.
Elevate your electrical systems with the R9F32163 Miniature Circuit Breaker and enjoy enhanced safety and reliability!
" "| Specifications | |
Main | |
| Range | Resi9 |
| Product or component type | Miniature circuit-breaker |
| Device application | Distribution |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 63 A |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 4500 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Complementary | |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
| Magnetic tripping limit | 5...10 x In AC |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC |
| [Uimp] rated impulse withstand voltage | 4 kV |
| control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 2 |
| height | 81 mm |
| Width | 18 mm |
| Depth | 72 mm |
| Embedding depth | 44 mm |
| Net weight | 240 g |
| Colour | White (RAL 9003) |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) - 1...25 mm² - rigid |
| Tunnel type terminals (top or bottom) - 1...16 mm² - flexible with ferrule | |
| Tunnel type terminals (top or bottom) - 1...16 mm² - flexible | |
| Wire stripping length | 14 mm |
| Tightening torque | 2 N.m |
| earth-leakage protection | Without |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category | III |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…60 °C |
| Weight | 0.250000 |
|---|---|
| Brand | Schneider Electric |
| Model | R9F32163 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.2 |
| Width [cm] | 1.8 |
| Height [cm] | 8.1 |
| Range | Resi9 1P |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 1P |
| [In] Rated Current | 63 A |
