Schneider Electric Regulated Switch Power Supply, 1 or 2 Phase, 100-500V, 24V, 3A
Range of product: Modicon Power Supply
Product type: Power supply
Power supply type: Regulated switch mode
Output voltage: 24 V DC

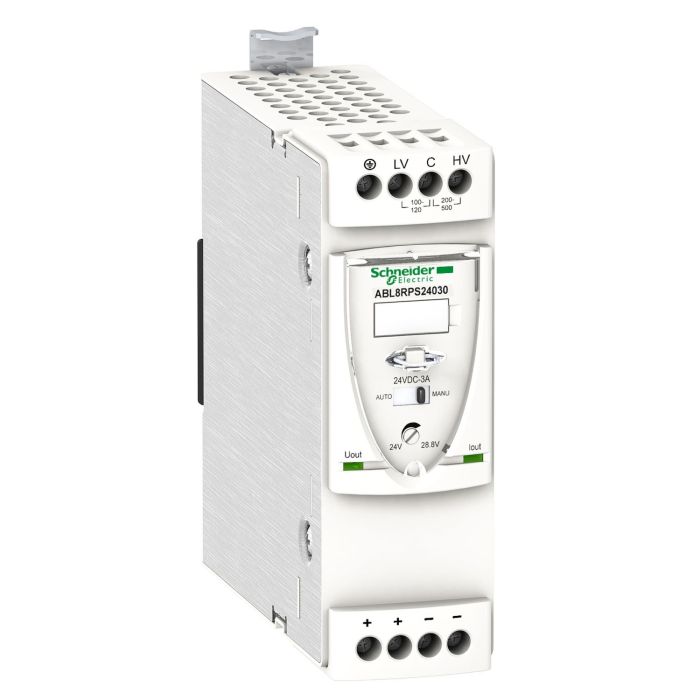

The ABL8RPS24030 Regulated Switch Power Supply is designed to provide reliable and stable power in various applications. It can operate on both 1 or 2 phases with an input voltage range of 100-500V and delivers a consistent output of 24V and 3A. This power supply is optimized for efficiency and reliability, making it suitable for a wide range of electrical and electronic systems.
Key Features:
Stable Output: This power supply ensures a stable 24V output for your equipment.
1 or 2 Phase Operation: Can operate on both 1 or 2 phases, providing flexibility in installation.
Wide Voltage Range: With an input voltage range of 100-500V, it can be used in various regions.
Optimized Design: The power supply is designed for efficiency and reliability.
Applications: Ideal for powering a variety of electrical and electronic systems.
Technical Specifications:
Product Type: Regulated Switch Power Supply
Input Voltage: 100-500V (1 or 2 Phase)
Output Voltage: 24V
Output Current: 3A
Specifications
| Main | |
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase, terminal(s): N-L1 |
| 200...500 V AC phase to phase, terminal(s): L1-L2 | |
| Rated power in W | 72 W |
| Output voltage | 24 V DC |
| Power supply output current | 03:00 ص |
| Permissible temporary current boost | 1.5 x In (for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Complementary | |
| Input voltage limits | 170...550 V AC |
| 85...132 V AC | |
| Inrush current | 30 A |
| Power factor | 0.51 at 240 V AC |
| 0.59 at 120 V AC | |
| Efficiency | 87% |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 7.8 W |
| Provided equipment | Power factor correction filter conforming to IEC 61000-3-2 |
| Output protection type | Against overload, protection technology: manual or automatic reset |
| Against overvoltage, protection technology: 30...32 V, manual reset | |
| Against short-circuits, protection technology: manual or automatic reset | |
| Against undervoltage, protection technology: tripping if U < 21.6 V | |
| Thermal, protection technology: automatic reset | |
| Connections - terminals | Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection |
| Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection | |
| Screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection | |
| Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection | |
| Status LED | 1 LED (green and red) output voltage |
| 1 LED (green, red and orange) output current | |
| Depth | 125 mm |
| height | 125 mm |
| Width | 45 mm |
| Net weight | 0.3 kg |
| Output coupling | Parallel |
| Series | |
| Marking | CE |
| Mounting support | 35 x 15 mm symmetrical DIN rail |
| 35 x 7.5 mm symmetrical DIN rail | |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 |
| SELV conforming to IEC 60204-1 | |
| SELV conforming to IEC 60364-4-41 | |
| Dielectric strength | 3500 V with between input and ground |
| 4000 V with between input and output | |
| 500 V with between output and ground | |
| Environment | |
| standards | CSA C22.2 No 60950-1 |
| UL 508 | |
| EN/IEC 62368-1 | |
| Product certifications | CCSAus |
| EAC | |
| UL | |
| RCM | |
| KC | |
| Environmental characteristic | EMC conforming to IEC 61000-6-1 |
| EMC conforming to IEC 61000-6-3 | |
| EMC conforming to IEC 61000-6-2 | |
| EMC conforming to IEC 61000-6-4 | |
| EMC conforming to EN/IEC 61204-3 | |
| Safety conforming to IEC 60950-1 | |
| Safety conforming to EN/IEC 61204-3 | |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | 50…60 °C with derating factor mounting position A < 2000 m |
| -25…50 °C without derating mounting position A < 2000 m | |
| Weight | 0.300000 |
|---|---|
| Brand | Schneider Electric |
| Model | ABL8RPS24030 |
| Width [cm] | 4.5 |
| Height [cm] | 12.5 |
| Range | ABL8 |
| Family | IDMST |
