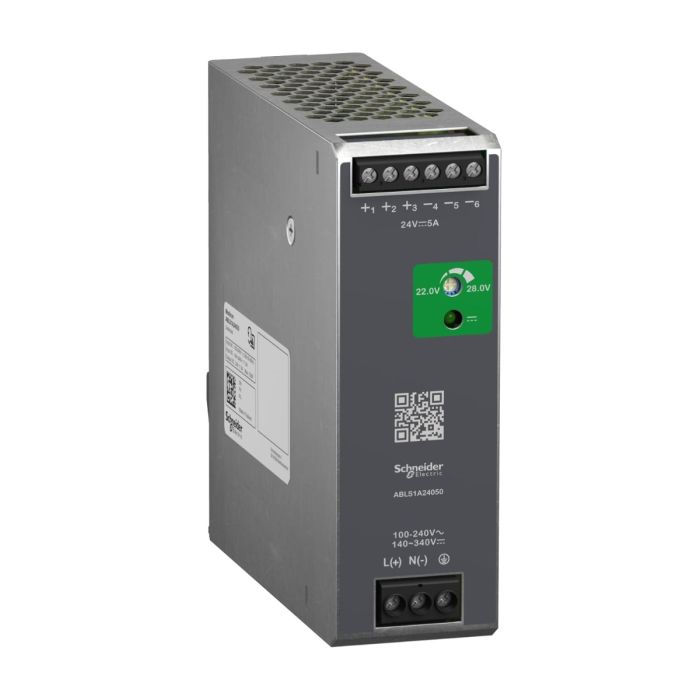

Schneider Electric Regulated Power Supply, 100-240V AC, 24V, 5A, Single Phase, Optimized
In stock
SKU
ABLS1A24050
Special Price EGP 7,681 Regular Price EGP 13,965
Schneider Electric Regulated Power Supply, 100-240V AC, 24V, 5A, Single Phase, Optimized is available to buy in increments of 1
Quick Overview
Range of product: Modicon Power Supply
Product type: Power supply
Power supply type: Regulated switch mode
Variant option: Optimized
The ABLS1A24050 Regulated Power Supply is designed to provide reliable and stable power in various applications. With an input voltage range of 100-240V AC, this single-phase power supply delivers a consistent output of 24V and 5A. It is optimized for efficiency and reliability, making it suitable for a wide range of electrical and electronic systems.
Key Features:
Stable Output: This power supply ensures a stable 24V output for your equipment.
Wide Voltage Range: With an input voltage range of 100-240V AC, it can be used in various regions.
Optimized Design: The power supply is designed for efficiency and reliability.
Single-Phase: Suitable for single-phase applications.
Applications: Ideal for powering a variety of electrical and electronic systems.
Specifications:
| Main | |
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure material | Aluminium |
| Nominal input voltage | 100...240 V AC single phase |
| 100...240 V AC phase to phase | |
| 140...340 V DC | |
| Rated power in W | 120 W |
| Output voltage | 24 V DC |
| Power supply output current | 05:00 ص |
| Complementary | |
| Input voltage limits | 85...264 V AC without temperature derating |
| 120...375 V DC without temperature derating | |
| 85…120 V DC with temperature derating | |
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN |
| TT | |
| IT | |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 4 A |
| External protection (recommended) 20 A Curve C | |
| External protection (recommended) 13 A Curve C | |
| Inrush current | 30.0 A at 115 V |
| 60.0 A at 230 V | |
| Power factor | 0.55 at 115 V AC |
| 0.45 at 230 V AC | |
| Efficiency | 85 % at 115 V AC |
| 88 % at 230 V AC | |
| Output voltage adjustment | 22...28 V |
| Power dissipation in W | 25 W |
| Current consumption | < 2.5 A 115 V AC |
| < 1.4 A 230 V AC | |
| < 1.3 A 140 V DC | |
| Turn-on time | < 1 s |
| Holding time | > 20 ms 115 V AC |
| > 40 ms 230 V AC | |
| Startup with capacitive loads | 8000 µF |
| Residual ripple | < 120 mV |
| Meantime between failure [MTBF] | 700000 h at 25 °C, full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset |
| Against over temperature, protection technology: manual reset | |
| Against overvoltage, protection technology: manual reset | |
| Connections - terminals | Screw connection: 0.5...4 mm², (AWG 20...AWG 12) without wire end ferrule for output |
| Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) with wire end ferrule for output | |
| Screw connection: 0.75...4 mm², (AWG 18...AWG 12) without wire end ferrule for input | |
| Screw connection: 0.75...4 mm², (AWG 18...AWG 12) with wire end ferrule for input | |
| Line and load regulation | < 0.5 % at 0 to 100 % load at 25 °C |
| < 1 % at full voltage range in line at 25 °C | |
| Status LED | 1 LED (green) output voltage |
| Depth | 117.6 mm |
| height | 123.6 mm |
| Width | 40 mm |
| Net weight | 0.55 kg |
| Output coupling | Parallel |
| Serial | |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | |
| Double-profile DIN rail | |
| Supply | SELV conforming to IEC 60950-1 |
| SELV conforming to IEC 60204-1 | |
| SELV conforming to IEC 60364-4-41 | |
| Dielectric strength | 3000 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
| Environment | |
| standards | IEC 62368-1 |
| EN/IEC 61204-3 | |
| IEC 61000-6-1 | |
| IEC 61000-6-2 | |
| IEC 61000-6-3 | |
| IEC 61000-6-4 | |
| IEC 61000-3-2 | |
| EN 61000-3-3 | |
| UL 62368-1 | |
| CSA C22.2 No 62368-1 | |
| UL 508 | |
| CSA C22.2 No 107.1 | |
| EN/IEC 62368-1 | |
| Product certifications | CE |
| CUL listed | |
| CUL recognized | |
| RCM | |
| CB Scheme | |
| EAC | |
| KC | |
| Operating altitude | < 5000 m |
| Shock resistance | 150 m/s² for 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…-10 °C with current derating of 2 % per °C mounting position A < 2000 m |
| -10…40 °C without derating mounting position A 115 V AC < 2000 m | |
| -10…50 °C without derating mounting position A 230 V AC < 2000 m | |
| 40…70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m | |
| 50…70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m | |
| Electrical shock protection class | Class I |
| Pollution degree | 2 |
| Vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6 |
| 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6 | |
| Electromagnetic immunity | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 |
| Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 | |
| Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3 | |
| Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3 | |
| Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3 | |
| Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 | |
| Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 | |
| Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 | |
| Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6 | |
| Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 | |
| Immunity to voltage dips conforming to IEC 61000-4-11 | |
| Disturbing field emission conforming to EN 55016-2-3 | |
| Limits for harmonic current emissions conforming to IEC 61000-3-2 | |
| conforming to EN 55016-1-2 | |
| conforming to EN 55016-2-1 | |
| Electromagnetic emission | Conducted emissions conforming to IEC 61000-6-3 |
| Radiated emissions conforming to IEC 61000-6-4 | |
| Weight | 0.550000 |
|---|---|
| Brand | Schneider Electric |
| Model | ABLS1A24050 |
| Width [cm] | 4 |
| Height [cm] | 12.36 |
| Range | ABL8 |
| Family | IDMST |
