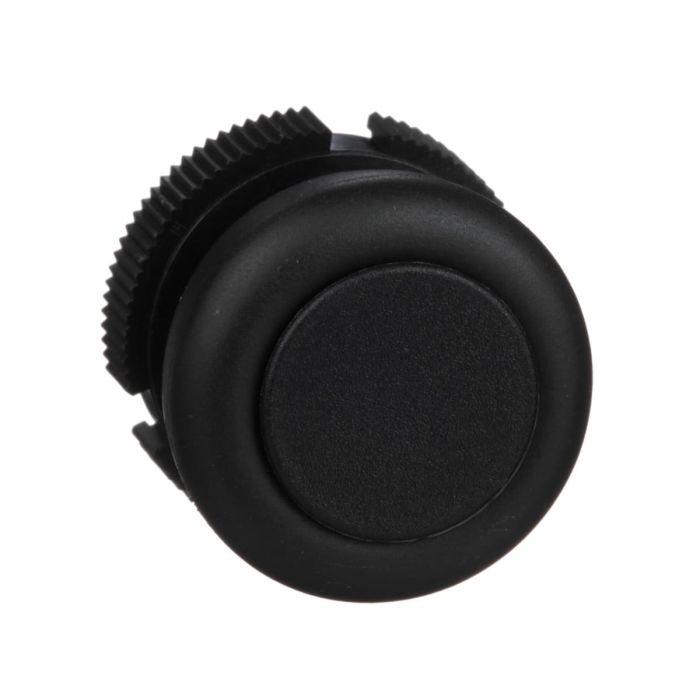

Schneider Electric Push Button Head, Plastic, Black, Booted, Spring Return
Range: Harmony XAC
Product Type: Head for push-button
Product Compatibility: XACA
Color: Black
This Harmony XAC,booted head for push buttons operates with spring return / impulse mechanism and uses front mounting. This black booted button head provides a simple solution to comply with hygiene requirement in food,beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant,dust resistant,water resistant and vibration resistant thanks to its IP65,making it ideal for operation in harsh environments. The booted head prevents growth of bacteria in joints and gaps: ideal for high hygiene environments like food and beverage industry. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications:
Main | |
| Range of Product | Harmony XAC |
| Product or Component Type | Head for push-button |
| Component name | XACA |
| Complementary | |
| Marking | Unmarked |
| Operator additional information | Booted |
| Cap/operator or lens colour | Black |
| Product Compatibility | XACA.. |
| Mounting Location | Front of enclosure |
| Sale per indivisible quantity | 10 |
| Standards | CSA C22.2 No 14 |
| UL 508 | |
| IEC 60204-32 | |
| IEC 60947-5-1 | |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Net Weight | 0.02 lb(US) (0.01 kg) |
| Ordering and shipping details | |
| Category | US10CS222473 |
| Discount Schedule | 0CS2 |
| GTIN | 3389110645149 |
| Returnability | Yes |
| Country of origin | US |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | XACA9412 |
| Color | Black |
| Range | Harmony XAC |
| Family | IDSIG |
| Type | Head for Push-button |
| IP Degree of Protection | IP65 |
| IK Degree of Protection | IK08 |
