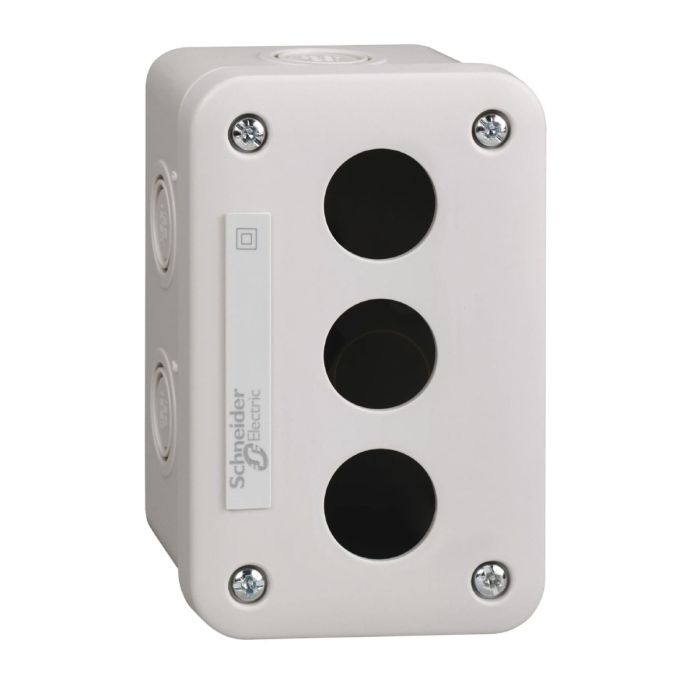

Schneider Electric Product Name (in English): Empty Control Station Light Grey with 3 Cutouts, IP54 for XB7 Ø 22 mm
Range of product: Harmony XALE
Product type: Empty control station
Number of cut-out: 3 cut-outs
The XALE3 is an empty control station designed for industrial applications. It comes in a light grey color and features three cutouts with a diameter of 22 mm each. This control station is part of Schneider Electric's XB7 series and is built to withstand demanding industrial environments.
Key Features:
Versatile Cutouts: The XALE3 control station includes three 22 mm cutouts, allowing you to install various control and signaling elements such as pushbuttons, pilot lights, and selector switches.
Durable and Resilient: Designed to meet IP54 protection standards, this control station can handle tough industrial conditions and is resistant to dust and water.
Empty Configuration: It's an empty enclosure, so you can customize it with the specific control components you need for your application.
Light Grey Color: The light grey color of the control station is a standard choice for industrial control panels.
Specifications
| Main | |
| Range of product | Harmony XALE |
| Product or component type | Empty control station |
| device short name | XALE |
| Product destination | For XB7 Ø 22 mm control and signalling units |
| Number of cut-out | 3 cut-outs |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Light grey (RAL 7035) |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Cable entry | 2 knock-outs, clamping capacity: 20 mm |
| 6 knock-outs for ISO M20 | |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Complementary | |
| Assembly style | For customer assembly |
| Net weight | 0.1 kg |
| Marking | CE |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| IK degree of protection | IK05 conforming to EN 50102 |
| standards | EN/IEC 62208 |
| EN/IEC 60947-1 | |
| EN/IEC 60947-5-1 | |
| EN/IEC 60947-5-5 | |
| Weight | 0.100000 |
|---|---|
| Brand | Schneider Electric |
| Model | XALE3 |
| Range | ControlStations |
| Family | IDSIG |
