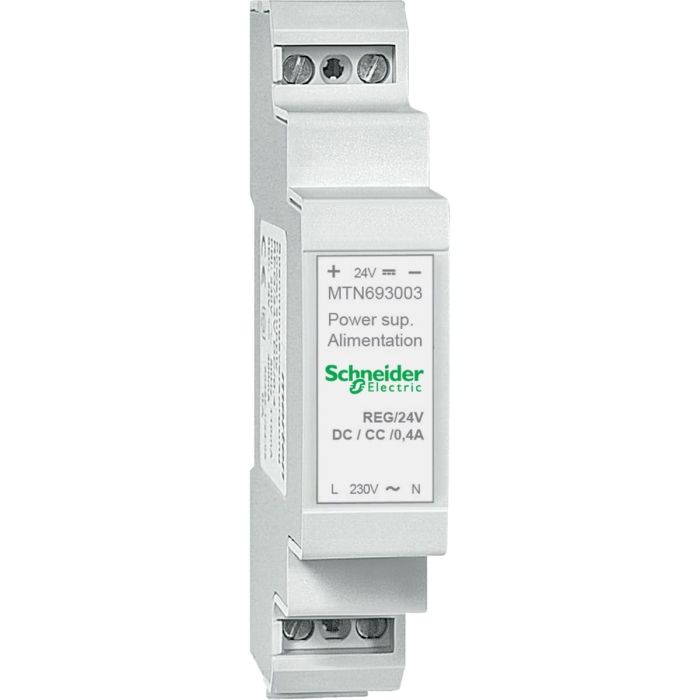

Power supply REG, 24 V DC / 0.4 A. Power supply for 24 V binary inputs. With integrated overload and short-circuit protection. For installation on DIN rails TH35 according to EN 60715. Primary supply: AC 230 V, 48-63 Hz. Output voltage: DC 24 V +/- 3 %. Output current: max. 0.4 A. Output power: max. 10 W. Device width: 1 modules, approx. 18 mm.
Specifications:
Main | |
Range of product | KNX |
product or component type | Power supply |
Bus type | KNX |
Complementary | |
Condition of use | Other device |
KNX device | |
Function of module | With output voltage stabilized |
mounting support | DIN rail |
Rated operational power in W | 9.6 W |
Output current | 0.4 A |
Output voltage | 24 V |
Connections - terminals | Screw terminals |
Height | 68.1 mm |
Width | 17.5 mm |
Depth | 68.1 mm |
Environment | |
IP degree of protection | IP20 |
| Weight | 0.104000 |
|---|---|
| Brand | Schneider Electric |
| Model | MTN693003 |
| Color | Light Gray |
| Range | KNX |
| Type | Power supply connector |
| IP Degree of Protection | IP20 |
