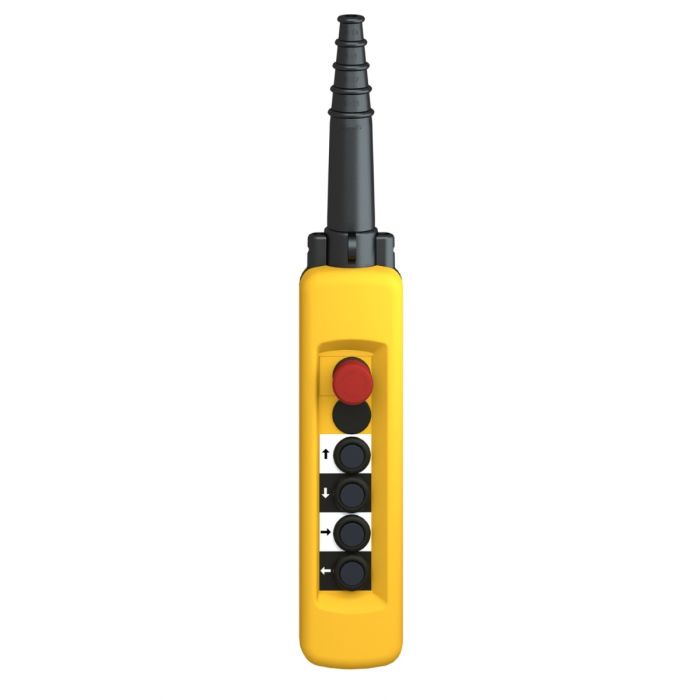

Schneider Electric Pendant control station,plastic,yellow,4 push buttons,1 emergency stop
Out of stock
SKU
XACA4713
Special Price EGP 4,638 Regular Price EGP 7,996
Quick Overview
Range: Harmony XAC
Product type: Pendant control station
Electrical circuit type: Control circuit
Control station type: Double insulated
This Harmony XAC,yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 4 push buttons and 1 emergency stop with "raise","lower","left","right" markings,with normally open and normally close contact. It is impact resistant,dust resistant,water resistant and vibration resistant thanks to its IP65,making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Specifications:
| Main | |
| Range of product | Harmony XAC |
| Product or component type | Pendant control station |
| Device short name | XACA |
| Complementary | |
| Control station type | Double insulated |
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| enclosure type | Complete ready for use |
| Control station application | Control of single speed hoist motor |
| Control station composition | 4 push-buttons + 1 emergency stop |
| Control button type | First push-button 1 NO raise, slow |
| Second push-button 1 NO lower, slow | |
| Fourth push-button 1 NO left, slow | |
| Third push-button 1 NO right, slow | |
| Stop push-button Ø 40 mm 1 NC latching | |
| Mechanical interlocking | With mechanical interlocking between pairs |
| Control station colour | Yellow |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end |
| Standards | UL 508 |
| CSA C22.2 No 14 | |
| IEC 60947-5-1 | |
| Product certifications | GOST |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Mechanical durability | 1000000 cycles |
| Cable entry | Rubber sleeve with stepped entry 8…26 mm |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A | |
| Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A | |
| Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A | |
| [Ithe] conventional enclosed thermal current | 10:00 AM |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 10 N push-button |
| 8 N emergency stop | |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C | |
| Terminals description ISO n°1 | (13-14)NO |
| Terminals description ISO n°2 | (11-12)NC |
| Net weight | 0.8 kg |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | XACA4713 |
| Color | Yellow |
| Range | Harmony XAC |
| Family | IDSIG |
| IP Degree of Protection | IP65 |
| IK Degree of Protection | IK08 |
