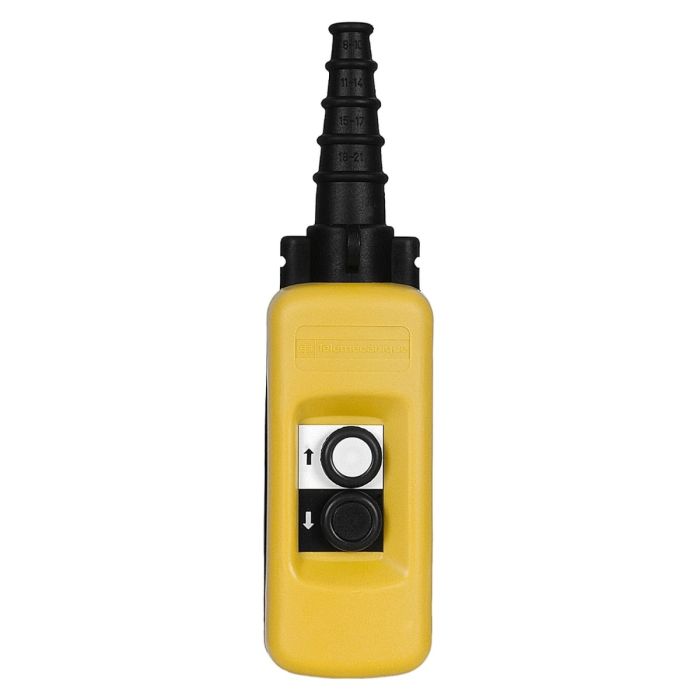

Schneider Electric Pendant Control Station, Plastic, Yellow, 2 Push Buttons
In stock
SKU
XACA271
Special Price EGP 2,606 Regular Price EGP 4,493
Schneider Electric Pendant Control Station, Plastic, Yellow, 2 Push Buttons is available to buy in increments of 1
Quick Overview
Range: Harmony XAC
Product type: Pendant control station
Complementary: Control station type
Product compatibility: ZB2BE101 for each direction
This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylène enclosure with 2 standard push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Specifications:
| Main | |
| Range of product | Harmony XAC |
| Product or component type | Pendant control station |
| Device short name | XACA |
| Complementary | |
| Control station type | Double insulated |
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| enclosure type | Complete ready for use |
| Control station application | Control of single speed hoist motor |
| Control station composition | 2 push-buttons |
| Control button type | First push-button 1 NO raise, slow |
| Second push-button 1 NO lower, slow | |
| Product compatibility | ZB2BE101 for each direction |
| Mechanical interlocking | With mechanical interlocking |
| Control station colour | Yellow |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end |
| Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end | |
| Standards | IEC 60947-5-1 |
| CSA C22.2 No 14 | |
| IEC 60204-32 | |
| UL 508 | |
| Product certifications | CCC |
| GOST | |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Mechanical durability | 1000000 cycles |
| Cable entry | Rubber sleeve with stepped entry 8…26 mm |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A | |
| Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A | |
| Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A | |
| [Ithe] conventional enclosed thermal current | 10:00 AM |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Contact operation | Slow-break |
| Maximum resistance across terminals | 25 MOhm |
| Operating force | 10 N push-button |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C | |
| 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C | |
| Terminals description ISO n°1 | (13-14)NO |
| Terminal identifier | (13-14)NO |
| (11-12)NC | |
| Net weight | 0.475 kg |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | XACA271 |
| Color | Yellow |
| Range | PendantStations |
| Family | IDSIG |
| Type | Pendant control station |
| IP Degree of Protection | IP65 |
| IK Degree of Protection | IK08 |
