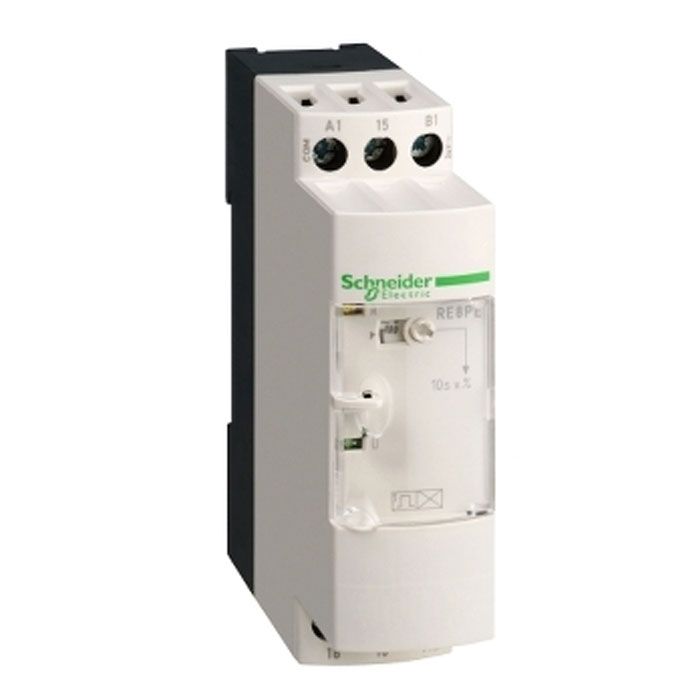

Name: Schneider Electric Optimum Industrial Timing Relay (Zelio Time), 0.1-10s, Type C, 24V AC/DC, 1 C/O
Brand: Gila Electric
SKU: RE8RA11B
Price: 1554.00 EGP
Availability: OutOfStock

Details

The Schneider Electric RE8RA11B is an optimum industrial timing relay from the Zelio Time series. This relay provides precise timing control in industrial applications. It offers a timing range from 0.1 to 10 seconds, making it suitable for various time-delay functions. The relay features 1 C/O (1 changeover) contact, providing versatility in controlling electrical circuits. With a voltage rating of 24V AC/DC, it is designed for compatibility with standard industrial control systems.

Main
Range of product	Zelio Time
Product or component type	Optimum industrial timing relay
Component name	RE8
Time delay type	C
Time delay range	0.1...10 s
Sale per indivisible quantity	1
Complementary
Discrete output type	Relay
Contacts material	Silver nickel contacts
Width pitch dimension	22.5 mm
[Us] rated supply voltage	24 V AC/DC 50/60 Hz
Voltage range	0.9...1.1 Us
Connections - terminals	Screw terminals, 2 x 1.5 mm² flexible with cable end
	Screw terminals, 2 x 2.5 mm² flexible without cable end
Tightening torque	0.6…1.1 N.m
Setting accuracy of time delay	+/- 20 % of full scale
Repeat accuracy	< 1 %
Voltage drift	< 2.5 %/V
Temperature drift	< 0.2 %/°C
Minimum pulse duration	26 ms
Reset time	50 ms
Maximum switching voltage	250 V
Mechanical durability	20000000 cycles
[Ith] conventional free air thermal current	8:00 AM
Maximum [Ie] rated operational current	2 A DC-13 24 V at 70 °C conforming to IEC 60947-5-1/1991
	2 A DC-13 24 V at 70 °C conforming to VDE 0660
	3 A AC-15 24 V at 70 °C conforming to IEC 60947-5-1/1991
	3 A AC-15 24 V at 70 °C conforming to VDE 0660
	0.1 A DC-13 250 V at 70 °C conforming to IEC 60947-5-1/1991
	0.1 A DC-13 250 V at 70 °C conforming to VDE 0660
	0.2 A DC-13 115 V at 70 °C conforming to IEC 60947-5-1/1991
	0.2 A DC-13 115 V at 70 °C conforming to VDE 0660
Minimum switching capacity	at 12 V 10 mA
Input voltage	24 V Y1 terminal(s)
Maximum switching current	10 mA (Y1)
Input compatibility	2-wire sensors DC with leakage current < 1 mA <50 m Y1 terminal(s)
Marking	CE
Overvoltage category	III conforming to IEC 60664-1
[Ui] rated insulation voltage	250 V conforming to IEC
	300 V conforming to CSA
Supply disconnection value	> 0.1 Uc
Operating position	Any position without derating
Surge withstand	2 kV conforming to IEC 61000-4-5 level 3
Power consumption in VA	0.7 VA at 24 V
Maximum power consumption in W	0.5 W at 24 V
Terminal description	(A1-A2)CO
	(Y1)UNUSED
	(15-16-18)OC_ON
Height	78 mm
Width	22.5 mm
Depth	80 mm
Net weight	0.11 kg
Environment
Immunity to microbreaks	3 ms
Standards	EN/IEC 61812-1
Product certifications	CSA
	UL
	GL
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-20…60 °C
Relative humidity	15…85 % 3K3 conforming to IEC 60721-3-3
Vibration resistance	0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
IP degree of protection	IP20 (terminals)
	IP50 (casing)
Pollution degree	3 conforming to IEC 60664-1
Dielectric test voltage	2.5 kV
Non-dissipating shock wave	4.8 kV
Resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3 level 3
Resistance to fast transients	2 kV conforming to IEC 61000-4-4 level 3
Disturbance radiated/conducted	CISPR 11 group 1 - class A
	CISPR 22 - class A

More Information

More Information
Weight	0.110000
Brand	Schneider Electric
Model	RE8RA11B
