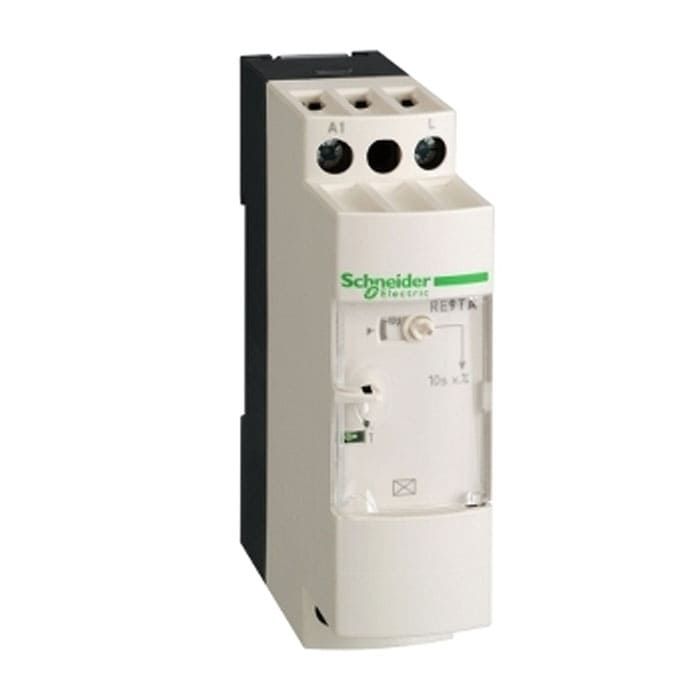

Schneider Electric On-Delay Timing Relay, 40-3600 Seconds, 240V AC/DC, Solid State
Out of stock
SKU
RE9TA51MW
Special Price EGP 2,014 Regular Price EGP 3,472
Quick Overview
Range: Zelio Time
Product type: Industrial timing relay
Discrete output type: Solid state
Recovery time: 100 ms after the time delay
Time delay type: A
The Schneider Electric RE9TA51MW is an on-delay timing relay designed to provide precise timing control in various applications. It offers a timing range of 40 to 3600 seconds, allowing for flexibility in timing requirements. This relay operates with a power supply of 240V AC/DC and features solid-state technology, enhancing reliability and durability. It is suitable for applications where on-delay timing is essential.
| Product data | |
| product area | Zelio Time |
| type of product or component | Time relay for industrial use |
| digital output type | Solid state |
| component name | RE9 |
| type of time delay | A |
| time delay interval | 40 sec...1 hr |
| Technical data | |
| wide division | 22.5mm |
| [Us] supply voltage | 24...240 V AC/DC 50/60 Hz |
| voltage range | 0.85...1.1 U.s. |
| connections - terminals | Screw terminals, 2 x 1.5 mm² flexible with end sleeve |
| Screw terminals, 2 x 2.5 mm² flexible without end sleeve | |
| tightening torque | 0.6…1.1 Nm |
| setting accuracy time delay | < +/- 20% |
| repeatability | < 1% |
| recovery time | 100 ms after the time delay |
| temperature operation | <= 0.1 %/°C |
| [Ie] rated operating current | 0.7A at 20°C |
| minimum output current | 10 mA at 20 °C |
| overload current | <= 15 A for 10 ms conforming to VDE 0435 (part 303), 4.8.3/class II |
| maximum voltage drop | <3 V at closed state0.7 A |
| Maximum leakage current | 6 mA open contact(s) |
| maximum power loss in W | 2.5W |
| electrical life | 100000000 cycles |
| marking | CE |
| overvoltage category | III conforming to IEC 60664-1 |
| [Ui] insulation voltage | 250 V conforming to IEC |
| 300 V conforming to CSA | |
| disconnection feed value | > 0.1 Uc |
| working position | All positions without downgrade |
| surge withstand | 2 kV conforming to IEC 61000-4-5 level 3 |
| width | 22.5mm |
| height | 78mm |
| depth | 80mm |
| product weight | 0.11 kg |
| Environment | |
| immunity to micro-interruptions | 100 ms during the time delay |
| 2 ms after the time delay | |
| conversion factor | None >20°C |
| standards | EN/IEC 61812-1 |
| product certifications | CSA |
| UL | |
| GL | |
| ambient air temperature for storage | −40…85 °C |
| ambient temperature during operation | −20…60 °C |
| relative humidity | 15…85% 3K3 conforming to IEC 60721-3-3 |
| vibration resistance | 0.35 mm (f= 10...55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| IP protection class | IP20 (connections) |
| IP50 (enclosure) | |
| pollution level | 3 conforms to IEC 60664-1 |
| dielectric strength | 2.5 kV |
| non-conductive shock wave | 4.8 kV |
| resistance to electrostatic discharge | 6 kV (in contact) conforming to IEC 61000-4-2 level 3 |
| 8 kV (in air) conforming to IEC 61000-4-2 level 3 | |
| resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 level 3 |
| resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| interference radiated / conducted | CISPR 11 group 1 - class A |
| CISPR 22 - class A | |
| Weight | 0.110000 |
|---|---|
| Brand | Schneider Electric |
| Model | RE9TA51MW |
