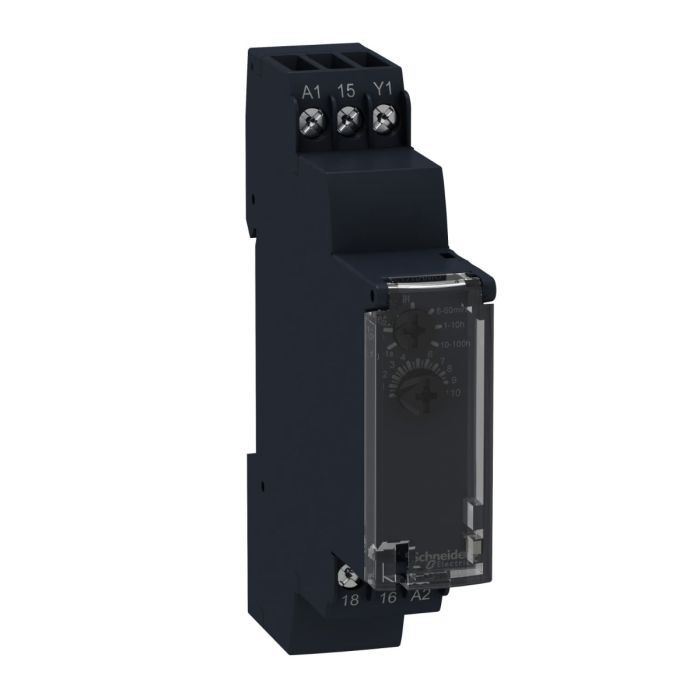

This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours,has an output rating of 8A,is 17.5mm wide and can be supplied with 24 V DC,24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors,allowing for a flexible and easy installation on DIN rail,using the same space as any modular 1-pole DIN device. It also offers a sealable cover,simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics,ideal for refurbishment of old installations without using a PLC. 0

Specifications
Main
Range of Product	Harmony Timer Relays
Product or Component Type	Dual function relay
Discrete output type	Relay
Width	0.69 in (17.5 mm)
Device short name	RE17R
Time delay type	Power on-delay
Time delay range	1...10 min
	10...100 h
	0.1...1 s
	6...60 s
	6...60 min
	1...10 s
	1...10 h
Nominal output current	8:00 AM
Complementary
Contacts type and composition	1 C/O
Contacts material	Cadmium free
Height	3.54 in (90 mm)
Depth	2.83 in (72 mm)
Control type	Selector switch front panel
[Us] rated supply voltage	24...240 V AC 50/60 Hz
	24 V DC
Voltage range	0.85...1.1 Us
Supply frequency	50...60 Hz +/- 5 %
release of input voltage	10 V
Connections - terminals	Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end
	Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end
	Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
	Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Tightening torque	5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material	Self-extinguishing
Repeat accuracy	+/- 0.5 % IEC 61812-1
Temperature Drift	+/- 0.05 %/°C
Voltage drift	+/- 0.2 %/V
Setting accuracy of time delay	+/- 10 % of full scale 25 °C IEC 61812-1
control signal pulse width	100 ms with load in parallel typical
	30 ms typical
Insulation resistance	100 MOhm 500 V DC IEC 60664-1
Reset time	120 ms on de-energisation typical
On-load factor	100%
Power consumption in VA	0…32 VA 240 V AC
Maximum power consumption in W	0.6 W 24 V DC
Minimum switching current	10 mA 5 V DC
Maximum switching current	8 A AC/DC
Maximum switching voltage	250 V AC
Breaking capacity	2000 VA
operating frequency	10 Hz
Electrical durability	100000 cycles resistive 8 A 250 V AC
Mechanical durability	10000000 cycles
Dielectric strength	2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
[Uimp] rated impulse withstand voltage	5 kV 1.2/50 µs
power on delay	100 ms
Marking	CE
Creepage distance	4 kV/3 IEC 60664-1
Safety reliability data	B10d = 270000
	MTTFd = 296.8 years
Mounting position	Any position in relation to normal vertical mounting plane
Mounting support	35 mm DIN rail conforming to IEC 60715
Local signalling	LED indicator on steady: relay energised, no timing in progress
	LED indicator 80 % ON and 20 % OFF flashing: timing in progress
	LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
Net Weight	0.15 lb(US) (0.07 kg)
Time delay type	A, At
Functionality	On-delay timing
Compatibility code	RE17
Environment
Immunity to microbreaks	20 ms
standards	2006/95/EC
	2004/108/EC
	IEC 61812-1
	IEC 61000-6-3
	IEC 61000-6-1
	IEC 61000-6-4
	IEC 61000-6-2
Product Certifications	CSA
	cULus
	GL
Ambient Air Temperature for Storage	-22…140 °F (-30…60 °C)
Ambient air temperature for operation	-4…140 °F (-20…60 °C)
IP degree of protection	IP20 IEC 60529 terminal block)
	IP40 IEC 60529 housing)
	IP50 IEC 60529 front panel)
Vibration resistance	20 m/s² 10…150 Hz)IEC 60068-2-6
Shock resistance	15 gn 11 ms IEC 60068-2-27
Relative Humidity	93 % without condensation IEC 60068-2-30
Electromagnetic compatibility	Electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2
	Electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2
	Susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3
	Electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4
	Electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4
	1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5
	1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5
	Conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6
	Voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11
	Voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11
	Conducted and radiated emissionsclass B EN 55022
Ordering and shipping details
Category	22370-RE, RM MISC TIMERS & COUNTERS
Discount Schedule	CP2
GTIN	3.60648E+12
Returnability	Yes
Country of origin	ID

Weight	0.070000
Brand	Schneider Electric
Model	RE17RAMU
Range	Zelio Timers
Family	IDSIG
