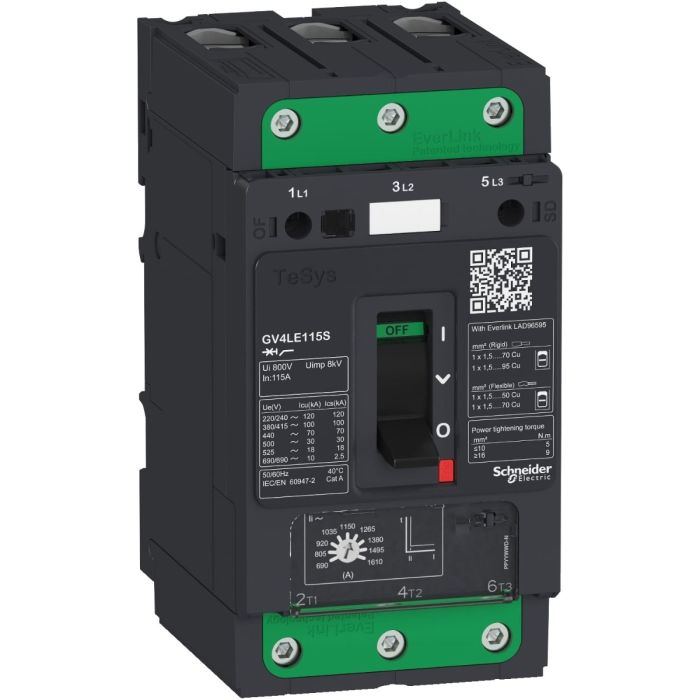

Schneider Electric Motor Circuit Breaker, TeSys GV4,3P,115 A,I cu 50 kA, Magnetic, EverLink terminals
Out of stock
SKU
GV4LE115N
Special Price EGP 10,342 Regular Price EGP 19,152
Quick Overview
Range: TeSys GV4
Product type: Motor circuit breaker
Device application: Motor protection
Poles description: 3P
TeSys GV motor circuit breaker,3 poles (3P),115A/690V,for protection of 3-phase motors 37-55kW@400V. It provides magnetic protection,breaking capacity Icu 50kA@400V,start-stop control by toggle,connection by Everlink BTR screw terminals. Magnetic protection adjustable by dial,setting range 6-14 In. It makes internal locations available for additional auxiliary contact blocks (OF,SD),and voltage trip units (MN,MX). To be used in association with a class 10 or 20 thermal overload relay to complete motor protection. Multi standards certified (IEC,CCC,EAC,Marine),Green Premium compliant (RoHS/REACh).
Specifications:
| Main | |
| Range of product | TeSys GV4 |
| Range | TeSys Deca |
| Device short name | GV4L |
| product name | TeSys GV4 |
| Product or component type | Motor circuit breaker |
| Device application | Motor protection |
| Trip unit technology | Magnetic |
| Electronic | |
| Complementary | |
| Poles description | 3P |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Operating position | Any position |
| Motor power kW | 37 kW at 400...415 V AC 50/60 Hz |
| 45 kW at 400...415 V AC 50/60 Hz | |
| 55 kW at 400...415 V AC 50/60 Hz | |
| 45 kW at 500 V AC 50/60 Hz | |
| 55 kW at 500 V AC 50/60 Hz | |
| 75 kW at 500 V AC 50/60 Hz | |
| 75 kW at 660...690 V AC 50/60 Hz | |
| 90 kW at 660...690 V AC 50/60 Hz | |
| 110 kW at 660...690 V AC 50/60 Hz | |
| Breaking capacity | 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 8 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| control type | Toggle |
| [In] rated current | 115 A |
| Magnetic tripping current | 480…1120 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current | 115 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Power dissipation per pole | 6.1 W |
| Mechanical durability | 40000 cycles |
| Electrical durability | 10000 cycles for AC-3 at 440 V In/2 |
| 5000 cycles for AC-3 at 440 V In | |
| Maximum operating rate | 25 cyc/h |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Connections - terminals | EverLink BTR screw connectors (top) 1 cable(s) 1.5…70 mm² - solid |
| EverLink BTR screw connectors (top) 1 cable(s) 1.5…50 mm² - flexible | |
| EverLink BTR screw connectors (bottom) 1 cable(s) 2.5…95 mm² - solid | |
| EverLink BTR screw connectors (bottom) 1 cable(s) 2.5…70 mm² - flexible | |
| Tightening torque | 9 N.m for cable 16…95 mm² |
| 5 N.m for cable 1.5…10 mm² | |
| Mechanical robustness | Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6 |
| Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6 | |
| Shocks: 15 gn 11 ms conforming to IEC 60068-2-27 | |
| Height | 155 mm |
| Width | 81 mm |
| Depth | 116 mm |
| Product weight | 1.5 kg |
| Colour | Grey (RAL 7016) |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Environment | |
| Standards | EN/IEC 60947-4-1 |
| EN/IEC 60947-2 | |
| Product certifications | IEC |
| CCC | |
| EAC | |
| EU-RO MR | |
| Climatic withstand | conforming to IACS E10 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| pollution degree | 3 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for storage | -50…85 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Operating altitude | 5000 m |
| Ambient air temperature for operation | -25…70 °C |
| Weight | 3.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV4LE115N |
| Depth [cm] | 11.6 |
| Width [cm] | 8.1 |
| Height [cm] | 15.5 |
| Range | TeSys Deca |
| Family | PPCTR |
| Type | Motor Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 115 A |
| IP Degree of Protection | IP40 |
| IK Degree of Protection | IK07 |
