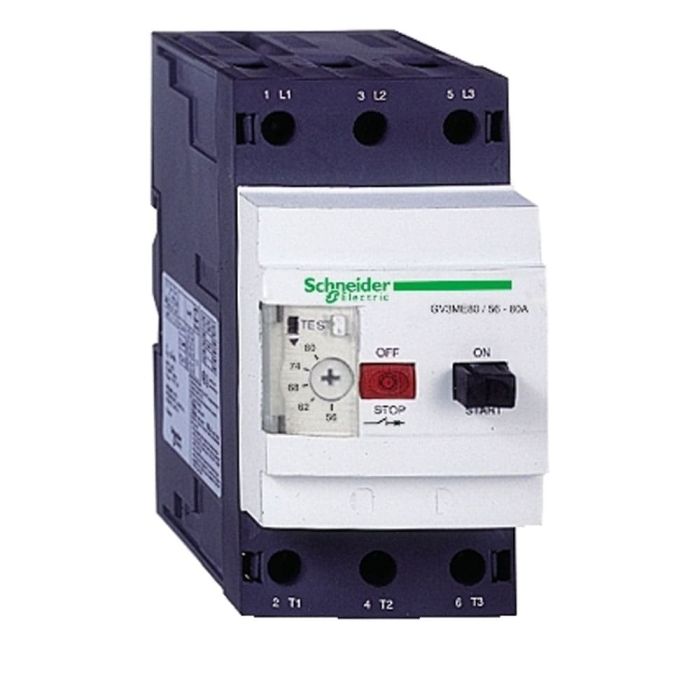

Schneider Electric Motor Circuit Breaker, 16,25 A, Screw Clamp Terminal, Thermomagnetic
Out of stock
SKU
GV3ME25
Special Price EGP 9,868 Regular Price EGP 18,274
Quick Overview
Range: TeSys
Product type: Circuit breaker
Device application: Motor
Poles: 3P
The Schneider Electric GV3ME25 Motor Circuit Breaker is designed to provide reliable protection for motors and electrical circuits in a compact and efficient package. With a current rating of 16-25 A, this thermomagnetic circuit breaker is suitable for a wide range of applications, ensuring the safety and performance of your equipment.
| Main | |
| Range | TeSys |
| product name | TeSys GV3 |
| Product or component type | Circuit breaker |
| Device short name | thermal magnetic circuit breaker |
| Device application | Motor |
| Poles description | 3P |
| Network type | AC |
| Control type | Push-button |
| Motor power kW | 11 kW at 400...415 V AC 50/60 Hz |
| 9 kW at 400...415 V AC 50/60 Hz | |
| 11 kW at 500 V AC 50/60 Hz | |
| 15 kW at 500 V AC 50/60 Hz | |
| 15 kW at 660...690 V AC 50/60 Hz | |
| 18.5 kW at 660...690 V AC 50/60 Hz | |
| Trip unit technology | Thermal-magnetic |
| Utilisation category | Category A conforming to IEC 60947-2 |
| AC-3 conforming to IEC 60947-4-1 | |
| Connections - terminals | Power circuit: screw clamp terminal 1 cable(s) 2.5…35 mm²solid |
| Power circuit: screw clamp terminal 1 cable(s) 2.5 mm²flexible without cable end | |
| Power circuit: screw clamp terminal 2 cable(s) 16 mm²flexible with cable end | |
| Complementary | |
| Network frequency | 50/60 Hz |
| Mounting mode | Fixed |
| Mounting support | Rail |
| Plate | |
| Mounting position | Vertical |
| Horizontal | |
| Thermal protection adjustment range | 16…25 A conforming to IEC 60947-4-1 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 § 7-2-1-5-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| 600 V AC 50/60 Hz conforming to UL 508 | |
| 600 V AC 50/60 Hz conforming to CSA C22.2 No 14 | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current | 25 A conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| 50/60 Hz conforming to UL | |
| 50/60 Hz conforming to CSA | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 30000 cycles |
| Electrical durability | 30000 cycles for AC-3 at 440 V In/2 |
| Maximum number of switchings | 25 cyc/h |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 5 N.m - on EverLink BTR screw connectors - cable 2.5…16 mm² |
| 5 N.m - on EverLink BTR screw connectors - cable 2.5…3.5 mm² | |
| Breaking capacity | 100 kA Icu at 230...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 2 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 % at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 60 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Height | 120 mm |
| Width | 61 mm |
| Depth | 113 mm |
| Net weight | 0.6 kg |
| Environment | |
| Standards | IEC 60947-2 |
| IEC 60947-4-1 | |
| BS EN | |
| DIN EN 60947-2 | |
| DIN EN 60947-4-1 | |
| EN 60947-2 | |
| EN 60947-4-1 | |
| NF EN | |
| Product certifications | UL |
| CSA | |
| LROS (Lloyds register of shipping) | |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 (open mounted) |
| IP55 conforming to IEC 60529 (in enclosure) | |
| Shock resistance | 22 gn 20 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2.5 gn (f= 0…25 Hz) conforming to IEC 60068-2-6 |
| Ambient air temperature for operation | -20…40 °C in enclosure |
| -20…60 °C open mounted | |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude | <= 3000 m |
| Resistance to mechanical impact | 0.5 J |
| Weight | 0.600000 |
|---|---|
| Brand | Schneider Electric |
| Model | GV3ME25 |
| Range | TeSys |
| Type | Circuit Breaker |
| Poles | 3P |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
